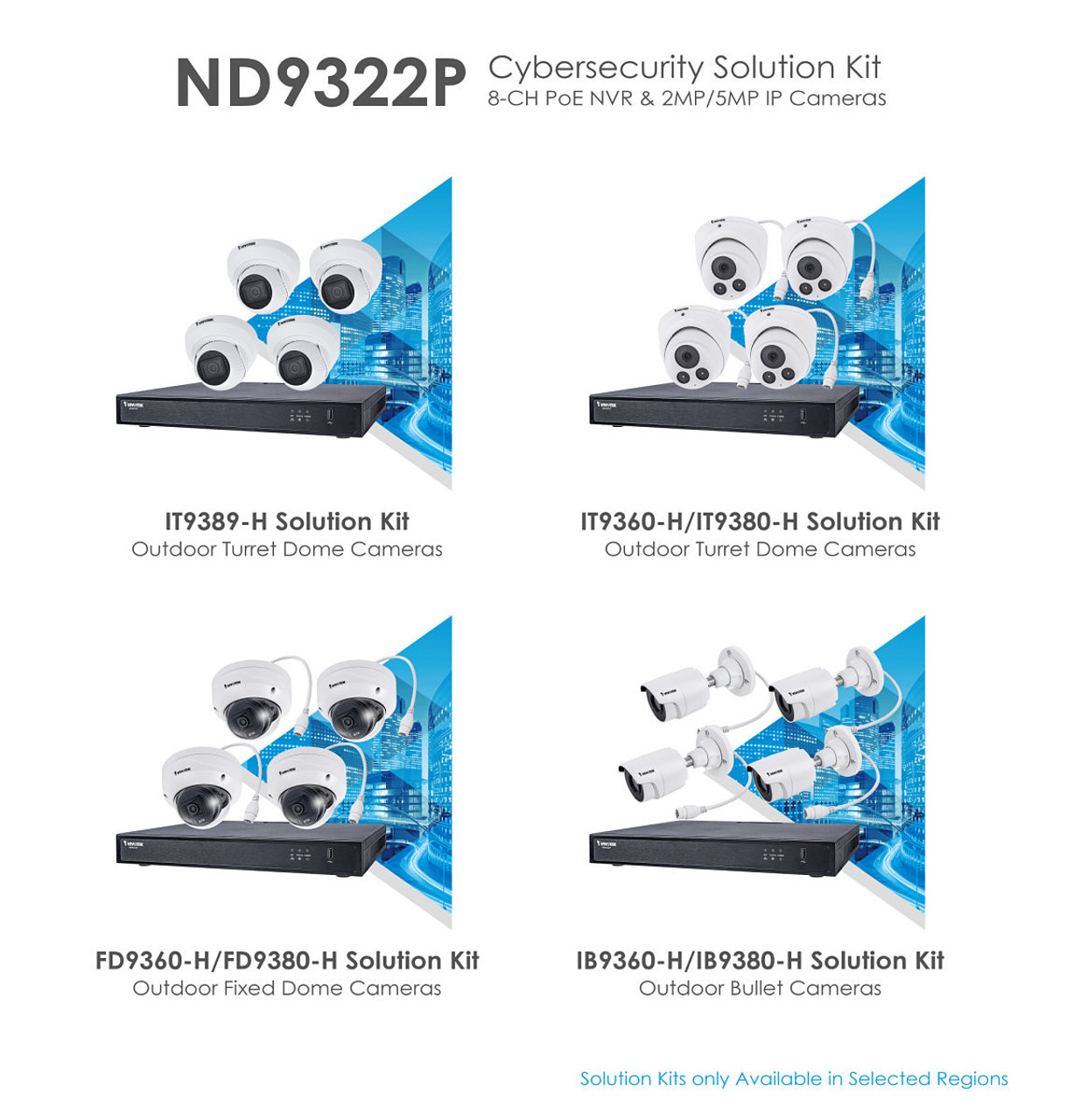

Vivotek - ND9323P-2TB-4IT60 - H.265 NVR, 2TBHDD, 8PoEPorts, 4xIT9360-H 2MP30MIR OutdrTurret
Part number:
ND9323P-2TB-4IT60
Price:

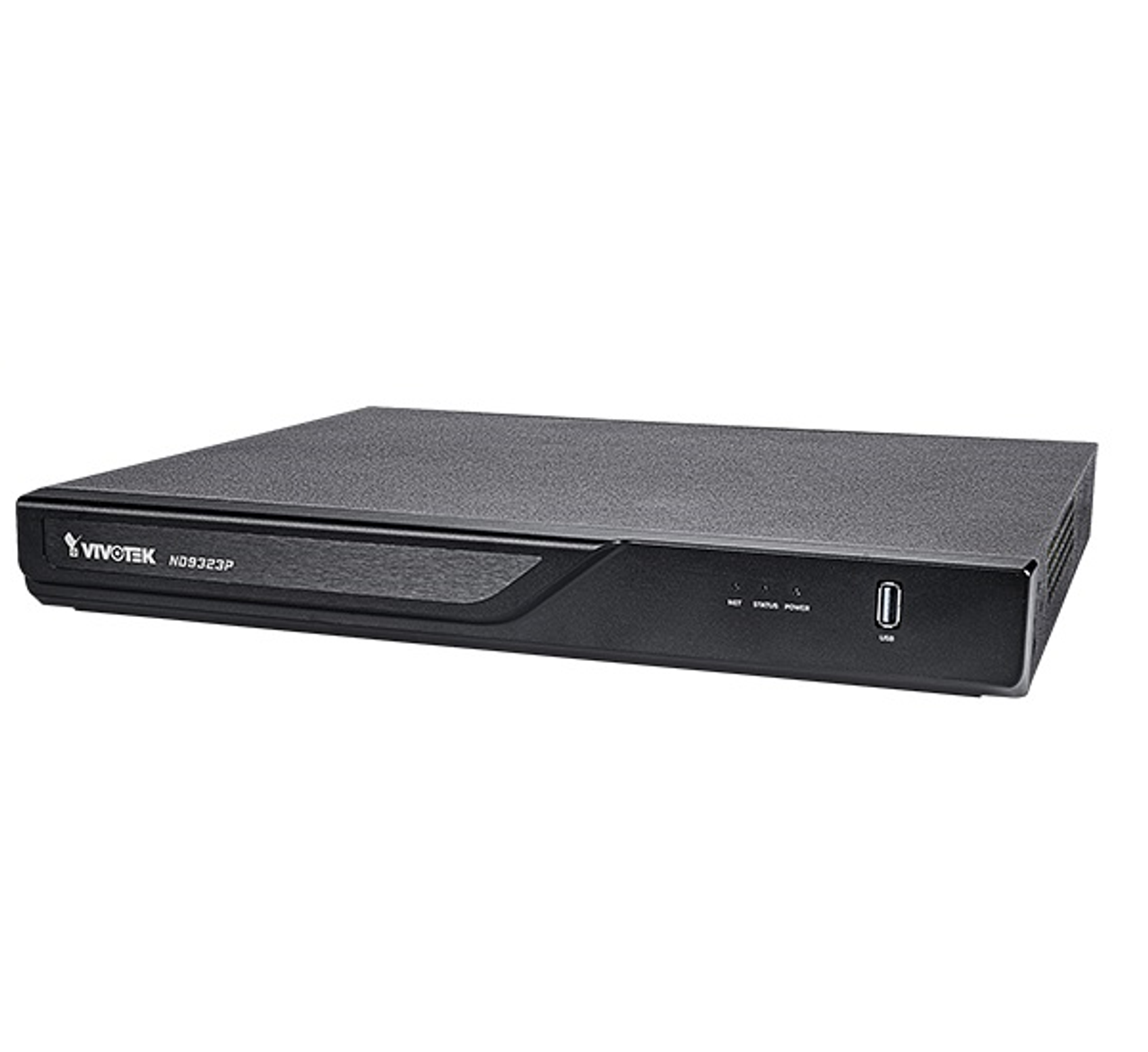

VIVOTEK’s ND9323P is a H.265 Linux-based standalone NVR that supports up to 4K IP camera video decoding and local 4K video display. With advanced H.265 compression technology, users are able to experience Full HD quality video while expending less HDD capacity than H.264.
The NVR features embedded 8x 802.3 at/af PoE ports to provide users easy and convenient IP camera installation, and also supports remote and mobile access via VIVOCloud and iViewer apps for both iOS and Android devices. The VIVOCloud app provides instant push notification and direct video playback functions when triggered by an alarm notification and provides users a flexible and intelligent NVR for seamless use in small to medium sized video surveillance applications.
Features:
Camera Features:
- H.265 Compression Technology
- 30 fps @ 2560x1920 (WDR Pro on)
- SNV (Supreme Night Visibility) for Low Light Conditions
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
- Smart Stream III to Optimize Bandwidth Efficiency
- Built-in IR Illuminators, Effective up to 30 Meters
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
NVR Features:
- 8 Channel
- 30 fps @ 3840x2160
- 64 Mbps Throughput
- 2TB Storage
- iOS/Android
- Internet Explorer 10 or above
- HDMI/VGA
| Device | |
| Model | ND9323P |
| OS | Embedded Linux |
| Watchdog | Hardware + Software |
| Power Restoration | System Restart Automatically after Power Recovery |
| Local Display |
| LiveView Display | 8 Channels Multi-Layout Display: 1x1, 2x2, 3x3, 1M+5, 1P+3, 1P+6, 2P+3, 3V |
| Video Output | HDMI x1, VGA x1 |
| Display Resolution | 3840x2160, 1920x1080, 1280x720 |
| Stream Application | Constant\Auto Stream |
| Fisheye Dewarp | Web dewarp 1O, 1P, 1R |
| PTZ Operation | Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control |
| Video |
| Video Format | H.265, H.264, MJPEG |
| Graphic Decoder | Hardware decoding |
| Decoding Resolution | Up to 3840x2160 |
| Decoding Capability | 3840x2160 @ 30 fps (1-CH) 1920x1080 @ 120 fps (4-CH) 1280x720 @ 240 fps (8-CH) |
| Audio |
| Audio Format | G.711, G.726 |
| Audio In/Out | 3.5 Phone jack audio output x1 3.5 Phone jack audio input (reserved) x1 |
| Record |
| Recording Time (sec.) | Pre-Record: 5 (Max. 10) Post-Record: 20 (Max. 300) |
| Recording Stream | Single |
| Recording Throughput | 64 Mbps |
| Recording Mode | Continuous, Schedule, Manual, Event |
| Recording Setting | Recycle (unit: Day) |
| Watermark | Supported |
| Storage & Backup |
| HDD Devices | Internal x2 (3.5") *HDD is purchased by separately. |
| HDD Max. Capacity | *Please refer to the HDD supported list on the VIVOTEK website. |
| RAID | RAID 0, 1 (single volume up to 16TB) |
| Disk Management | Create, Format and Remove Disk HDD S.M.A.R.T. |
| External Storage | USB Storage (USB 3.0) |
| Video Clip Export | USB Dongle (FAT Format) |
| Schedule Backup | FTP |
| Playback |
| Playback Display | 4 Channels Multi-Layout Display: 1x1, 2x2, 1P+3, 1V+3 |
| Playback Control | Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard) |
| Video Search | By calendar, date/time, and alarm |
| Thumbnail Explorer (Storyboard) | Listing the thumbnail of recorded video (Max. 2-CH) |
| Snapshot | JPEG |
| Video Clip Export | EXE |
| Network |
| Ethernet | 10/100/1000Mbps Ethernet (RJ-45) x1 |
| Network Throughput Input/Output Total | 88 Mbps |
| PoE | 802.3at/af compliant PoE ports x 8 (Total Max. 120 W) * DO NOT suggest connecting any non-PD device with this NVR PoE port in order to avoid potential risk. |
| PoE Management | Supported |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter |
| External Interface |
| USB | Front: 1 (USB 3.0) Back: 1 (USB 2.0) |
| Alarm In | 4 |
| Alarm Out | 1 |
| Audio | 3.5 Phone Jack Audio Output x1 3.5 Phone Jack Audio Input (Reserved) x1 |
| System |
| Camera Integration | ONVIF Profile S |
| Event | Motion Detection, Smart VCA Event, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error |
| Event Action | Video recording, email with snapshot, buzzer, PTZ, FTP, DO (camera, system), full screen, send to CMS, VIVOCloud APP Notification |
| User Management | User level: administrator, regular user |
| Log | System, recording, user, error |
| Date & Time | Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time |
| Language | Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic |
| Advanced Features |
| VCA Counting Solution | Supported |
| VCA Event Search | Supported |
| Remote Client |
| Software AP | Shepherd, VAST 2 |
| Mobile/Tablet App | iViewer (Android & iOS) |
| Web Browser | Internet Explorer 10 (32 bit) or later/ Windows Chrome v68.0.3 or later/ Windows for new web |
| VIVOCloud | Supported |
| General |
| Power Input | 100-240V AC, 50/60Hz |
| Power Consumption | Max. 175 W |
| Dimensions | 366 (W) x 320.3 (D) x 46 (H)mm |
| Weight | 2.5 kg (without HDD) |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Humidity | 0 ~ 95% |
| Safety Certifications | CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS |
| Warranty | 36 months |
