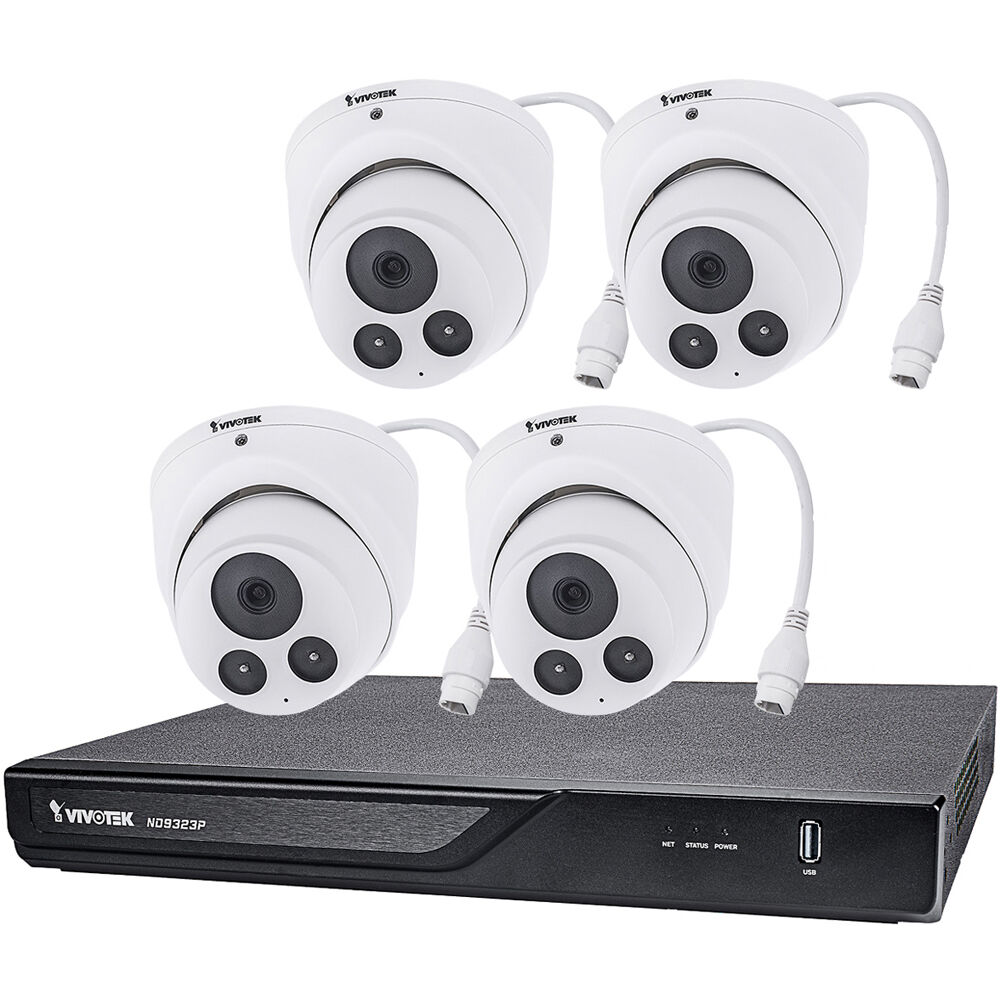

Vivotek - ND9323P-2TB-4IT80A - H.265 NVR,2TBHDD,8PoEPorts,4xIT9380-HF2 5MP30MIR OutdrTurret
Part number:
ND9323P-2TB-4IT80A
Price:
VIVOTEK’s ND9323P is a H.265 Linux-based standalone NVR that supports up to 4K IP camera video decoding and local 4K video display. With advanced H.265 compression technology, users are able to experience Full HD quality video while expending less HDD capacity than H.264.
The NVR features embedded 8x 802.3 at/af PoE ports to provide users easy and convenient IP camera installation, and also supports remote and mobile access via VIVOCloud and iViewer apps for both iOS and Android devices. The VIVOCloud app provides instant push notification and direct video playback functions when triggered by an alarm notification and provides users a flexible and intelligent NVR for seamless use in small to medium sized video surveillance applications.
Features:
- H.265, up to 8MP Camera Supported
- VIVOTEK Smart VCA Camera Supported for Event Search & Recording
- RAID 0, 1 Supported to Prevent from Recording Data Loss
- 802.3at/af PoE with PoE Management
- 4K Video Output Display for Clear and Detailed Monitoring
- New Web UI Available for Plug-in Free Browser (Chrome)
- Trend Micro IoT Security & Cybersecurity Management
- Crowd Control Solution
- VIVOCloud App & VAST 2
- Made in Taiwan
| Device | |
| Model | ND9323P |
| OS | Embedded Linux |
| Watchdog | Hardware + Software |
| Power Restoration | System Restart Automatically after Power Recovery |
| Display |
| LiveView Display | 8 Channels Multi-Layout Display: 1x1, 2x2, 3x3, 1M+5, 1P+3, 1P+6, 2P+3, 3V |
| Video Output | HDMI x1, VGA x1 |
| Display Resolution | 3840x2160, 1920x1080, 1280x720 |
| Stream Application | Constant\Auto Stream |
| Fisheye Dewarp | Local: 1O, 1R, 1O3R, 1O8R Web: 1O, 1R, 1P |
| PTZ Operation | Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control |
| Video |
| Video Format | H.265, H.264, MJPEG |
| Graphic Decoder | Hardware decoding |
| Decoding Resolution | Up to 3840x2160 |
| Decoding Capability | 3840x2160 @ 30 fps (1-CH) 1920x1080 @ 120 fps (4-CH) 1280x720 @ 240 fps (8-CH) |
| Audio |
| Audio Format | G.711, G.726 |
| Audio In/Out | 3.5 Phone jack audio output x1 3.5 Phone jack audio input (reserved) x1 |
| Record |
| Recording Time (sec.) | Pre-Record: 5 (Max. 10) Post-Record: 20 (Max. 300) |
| Recording Stream | Single |
| Recording Throughput | 64 Mbps |
| Recording Mode | Continuous, Schedule, Manual, Event |
| Recording Setting | Recycle (unit: Day) |
| Watermark | Supported |
| Storage & Backup |
| HDD Devices | Internal x2 (3.5") *HDD is purchased by separately. |
| HDD Max. Capacity | *Please refer to recommended HDD list on the VIVOTEK website. |
| RAID | RAID 0, 1 |
| Disk Management | Create, Format and Remove Disk HDD S.M.A.R.T. |
| External Storage | USB Storage (USB 3.0) |
| Video Clip Export | USB Dongle (FAT Format) |
| Schedule Backup | FTP |
| Playback |
| Playback Display | 4 Channels Multi-Layout Display: 1x1, 2x2, 1P+3, 1V+3 |
| Playback Control | Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard) |
| Video Search | By calendar, date/time, and alarm |
| Thumbnail Explorer (Storyboard) | Listing the thumbnail of recorded video (Max. 2-CH) |
| Snapshot | JPEG |
| Video Clip Export | EXE |
| Network |
| Ethernet | 10/100/1000Mbps Ethernet (RJ-45) x1 |
| Network Throughput Input/Output Total | 88 Mbps |
| PoE | 802.3at/af compliant PoE ports x 8 (Total Max. 120 W) * DO NOT suggest connecting any non-PD device with this NVR PoE port in order to avoid potential risk. |
| PoE Management | Supported |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter |
| External Interface |
| USB | Front: 1 (USB 3.0) Back: 1 (USB 2.0) |
| Alarm In | 4 |
| Alarm Out | 1 |
| Audio | 3.5 Phone Jack Audio Output x1 3.5 Phone Jack Audio Input (Reserved) x1 |
| System |
| Camera Integration | ONVIF Profile S |
| Event | Motion Detection, Smart VCA Event, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error |
| Event Action | Video recording, email with snapshot, buzzer, PTZ, FTP, DO (camera, system), full screen, send to CMS, VIVOCloud APP Notification |
| User Management | User level: administrator, regular user |
| Log | System, recording, user, error |
| Date & Time | Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time |
| Language | Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic |
| Advanced Features |
| VCA Counting Solution | Supported |
| VCA Event Search | Supported |
| Trend Micro IoT Security | Supported |
| Cybersecurity Management | Supported |
| Crowd Control Solution | Supported |
| Remote Client |
| Software AP | Shepherd, VAST 2 |
| Mobile/Tablet App | iViewer (Android & iOS) |
| Web Browser | Internet Explorer 10 (32 bit) or later/ Windows Chrome v68.0.3 or later/ Windows for new web |
| VIVOCloud | Supported |
| General |
| Power Input | 100-240V AC, 50/60Hz |
| Power Consumption | Max. 175 W |
| Dimensions | 366 (W) x 320.3 (D) x 46 (H)mm |
| Weight | 2.5 kg (without HDD) |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Humidity | 0 ~ 95% |
| Safety Certifications | CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS |
| Warranty | 36 months |
