Intuitive user interface:
Custom display layout adjustment and fisheye ROI control for a better security management experience.
Automatic Configuration:
Easy configuration through a fully automated process, saving time and cost for users in the installation of surveillance devices.
Smart Search II:
Allows users to search for people-related objects or videos according to the VCA (Video Content Analysis) metadata of the camera videos. It allows you to quickly classify large amounts of evidence to find precisely what is needed.
Smart VCA Event Search:
Supports alarm management and event search with VIVOTEK's deep-learning technology, Smart VCA, and Smart 360 VCA. VCA rules and information, such as people tracking and motion detection, can be displayed in both live video and playback on the NVR monitor. The user can search for one or several types of events, play alarm events and also export the search videos.
Cybersecurity management solution:
It allows integrating cybersecurity attack events from VIVOTEK cameras and NVRs into VAST 2 alarm management. In addition to alarm triggering and notification, VAST 2 becomes the central management site for recognizing attack trends and states, as well as to obtain information about the attacks.
Locking and exporting evidence:
Allows manual retention time extension for video recordings and management of a large number of investigation scenarios. Easy export of multiple video recordings with custom display layouts in a specified time period or instantly with a single click.
Visualization with eMap 2.5D:
Multiple camera layers and FOV views allow users to instantly identify a selected camera and its location on the map.
Data Magnet:
Data Magnet allows VIVOTEK license plate recognition cameras or third party data sources to be integrated into the VAST 2, providing quick access to data recording and allowing data to be viewed simultaneously during live viewing. Additionally, users can also use Data Magnet's alarm management to customize alarm triggering rules and actions, allowing users to receive alarm notifications immediately upon triggering of preset alarm criteria.
Plate recognition solution:
The NS9521 can link plate information to live streaming and recordings through integration with VIVOTEK's plate recognition cameras (such as IB9385-LPR and IB9387-LPR). Users can search and analyze the historical data and display the number of recognized license plate data in line graphs, export the search results, or display the data in live video from the cameras triggered by alarm events when the information from the board matches preset alarm criteria.
Features :
- Supports H.265 / H.264 compression technology
- 32 channels, expandable to 64 channels
- VIVOTEK VAST 2 CMS included
- Smart Search II: Powerful Smart Motion Detection Search
- Smart VCA: Video Analytics Powered by AI
- Cybersecurity management solution
- Multiple fisheye spherical distortion correction modes
- Visualization with eMap 2.5D
- Locking and exporting evidence
- Add-on Solutions: Fault Tolerance, Transport, Transaction and Data Magent
- VIVOTEK Plate Recognition Solution
- Slim design and easy HDD installation
Device

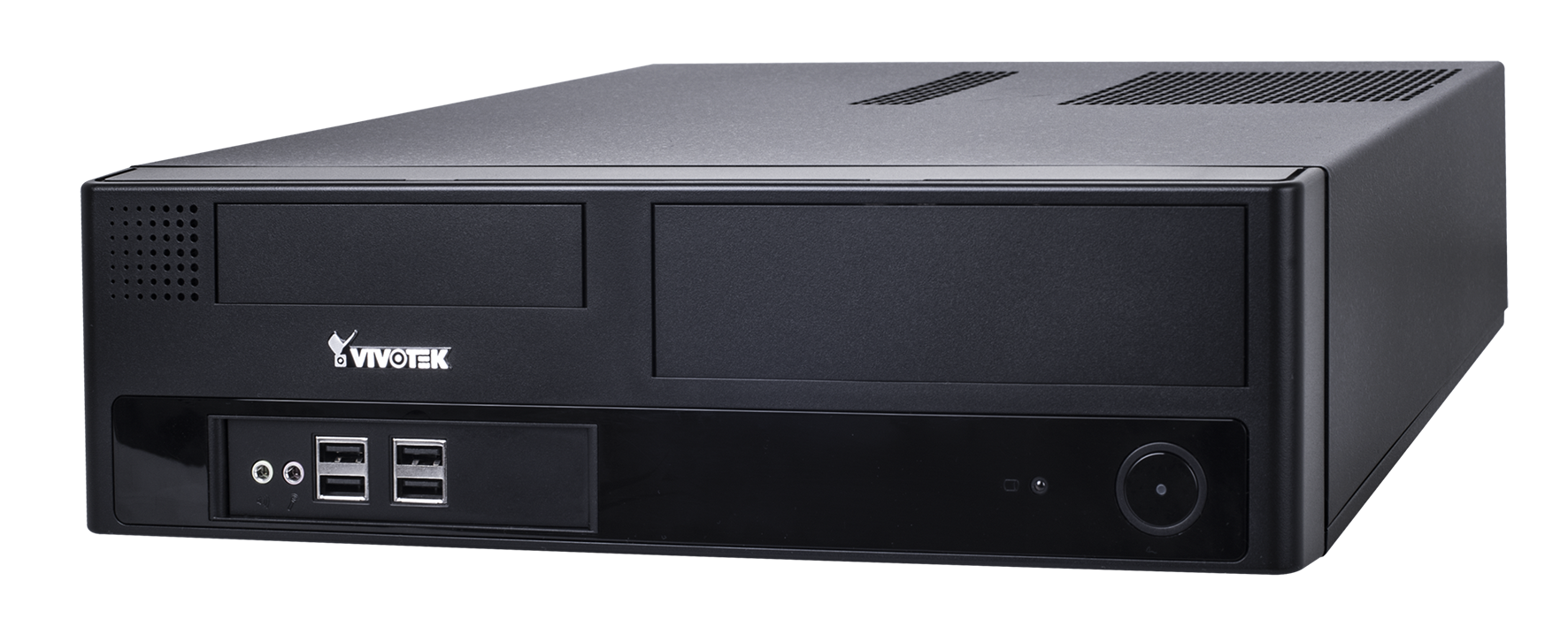

| Model | NS9521 |
| OS | Windows 10 Embedded |
| Watchdog | Hardware + Software |
| Power Restoration | System Restart Automatically after Power Recovery |
Local Display
| LiveView Display | 32 Channels (up to 64CH by license purchasing) Iqual: 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8 Panoramic: 1P + 6, 2P, 2P + 3, 3P Focus: 1 + 12, 1 + 16, 1 + 3, 1 + 5, 1 + 7, 1 + 9, 2 + 8 Vertical: 1V + 6, 2V + 2, 2V + 3, 3V, 3V + 4, 4V, 4V + 4, 5V Individual arrangement display , full screen display Custom layout, layout rotation |
| Video Output | HDMI x1, Display Port x1, DVI x1 |
| Display Resolution | HDMI: 4096x2160 DVI: 1920x1200 DP: 4096x2304 |
| Dual Monitor | Supported |
| Camera Position | Change the viewcell position on the Live View screens |
| Video Streaming App | Video stream selection and automatic stream size |
| Monitor Upgrade | Built-in eMap Drag & Drop, Remote I / O Control, PiP (Digital Zoom), Instant Playback, Video Display Mode (Aspect Ratio & Camera Information), Metadata Display (VCA, POS and Data Magnet) |
| Fisheye Spherical Distortion Correction | 1O, 1P, 1R, 1O3R, 4R, 2P, 4R Pro, 1O8R and mov. horizontal automatic fisheye |
| PTZ / ePTZ Operation | Direction Control, Start, Zoom, Focus, Iris, Preset, Patrol (Group), Track, Pan, Stop, Speed, Wiper Control |
Video
| Video Format | MJPEG, MPEG4, H.264 AVC, H.264 SVC, H.265 |
| Graphic Decoder | Software decoding |
| Decoding Resolution | Up to 8192x8192 |
| Decoding Capability | H.264: 1920x1080 @ 540 fps H.265: 1920x1080 @ 270 fps |
Audio
| Audio Format | G.711, G.726, AMR, AAC |
| Two-way Audio | Supported |
Recording
| Recording Time (sec.) | Pre-Record: 3-15 Post-Record: 10-60 |
| Recording Video Stream | Individual |
| Recording Performance | 400 Mbps |
| Recording Mode | Continuous, Event, Custom Schedule, Adaptive Video Streaming by Activity |
| Recording Setting | The recycling time depends on the remaining storage space or the set number of days |
| Record without Interruptions | Supported |
Storage & Backup
| HDD Devices | Internal x2 (3.5 ") *HDD disk is purchased separately. |
| Maximum HDD Capacity | *Please refer to the list of compatible hard drives on the VIVOTEK website. |
| Disk Management | Create, Format and Delete Disk |
| Manual Backup | USB Dongle (FAT Format) NAS (SMB & CIFS) |
| Schedule Backup | NAS (SMB & CIFS) |
Reproduction
| Playback Screen | 32 channels (up to 64 channels by purchasing licenses) the maximum number of supported monitors depends on the decoding capacity of your system) Iqual: 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8 Panoramic: 1P + 6 , 2P, 2P + 3, 3P Focus: 1 + 12, 1 + 16, 1 + 3, 1 + 5, 1 + 7, 1 + 9, 2 + 8 Vertical: 1V + 6, 2V + 2, 2V + 3 , 3V, 3V + 4, 4V, 4V + 4, 5V Single layout display, full screen display Custom layout, layout rotation |
| Playback Control | Play, pause, stop, rewind, next / previous frame 1 / 64X ~ 64X speed control, bookmark |
| Video Search | Calendar, Event, Alarm, Bookmark, Thumbnail, Smart Search II, Transaction (POS), Data Magnet, Log |
| Instant Photo | BMP & JPEG |
| Export Video Clip | 3GP & EXE |
Net
| Ethernet | 2x 10/100 / 1000Mbps Ethernet (RJ-45) |
| Video Performance for Remote Client | 400 Mbps |
| Protocols | IPv4, TCP / IP, HTTP, HTTPS, UPnP, RTSP / RTP / RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter |
Alarm Management
| Alarm Period (sec.) | Max. 30 |
| Alarm Filter | Time, trigger type (Camera / Substation / System), Status, Name, trigger source |
| Alarm Setting | Real-time system notification Viewing alarm results by list or thumbnail |
| Schedule Type | Continuous, schedule, manual |
| Camera Event | Motion, DI/O, video lost/restore, PIR, tampering, temperature, IR, PPTZ, line crossing detection, loitering detection, field detection, audio detection, SD card life expectancy detection, shock detection, ONVIF motion event, ONVIF DI/O, ONVIF video lost/restore |
| Camera Status | General: Motion Detection, Camera ED, Camera SD, IR (Cooled), PIR (Passive Infrared), Tamper Detection, Temperature, Camera Disconnected, Recording Error, Stop Recording, Video Loss (Video Server Only) , SD Card Life Expectancy Detection, Audio Detection, Impact Detection Video Content Analysis: Intrusion Detection, Loitering Detection, Line Crossing Detection, Abandoned Object Detection, Missing Object Detection, Face Detection, Crowd Detection, Zone Detection Trend Micro IoT Security: Brute Force Attack, Cyber Attack, Quarantine Event |
| Substation | ND Series NVR: Fan Status, Camera Disconnected, Storage Failure, Storage Full, Number of People Remaining, Brute Force Attack, Cyber Attack, Quarantine Event NR Series NVR: Camera Disconnected, Storage Failure, Storage Full NV Series NVR: Abnormal G-Sensor Movement, Acceleration, GPS Speed |
| External Devices Event | Digital I / O (with I / O box), TCP Message |
| Action | Start to record videos, Set DO status, Go to camera presets, Send HTTP requests, Send live streaming, Send email with snapshot of assigned camera (s), Go to E-Map, Sound the alarm and Add bookmark |
| Alarm State Management | New, In Progress, False Alarm and Close |
| Export Alarm Result | .csv File |
eMap
| Fountain | Import Photo & Folder |
| Device | Camera, Digital In / External Out |
| Marked | Add, Delete, Direction Control, PTZ Control, FOV Control, Live View & Playback |
| Event Notification | One or more live broadcasts |
External Interface
| USB | Front: USB 2.0 x2 Rear: 2x USB 3.1 (USB Type A), 2x USB 3.1 (USB Type C) |
| Audio | Front: 1 Microphone input connector 1 3.5 Audio input line connector Rear: 1 Microphone input connector 1 3.5 Audio input line connector |
System
| POS Integration | Supported |
| UPS Integration | Supported |
| Camera Integration | ONVIF Profile S |
| I/O Box Integration | Advantech ADAM-6000 Series CHIYU CYT-133SC MOXA ioLogik E1210, E1211 and E1212 |
| User Management | Authentication: Basic Account / Windows DA User Account: 1024 User Level: Administrator / Custom User |
| Registry | Operation, system log and events |
| Date & Time | Synchronization Server |
Advanced Features
| VCA Counting Solution | Supported |
| VCA Event Search | Supported |
| Smart search | Supported |
| Cybersecurity Administration | Supported |
| Fault tolerance | Supported |
Remote Client
| Software Application | Shepherd, VAST 2 |
| Mobile/Tablet Application | iViewer (iOS/Android) |
| Web Navigator | Internet Explorer 9 (32 bit) or above |
General
| Power Input | 100~220V AC |
| Food Management | Max. 250 W |
| Dimensions | 342.3 (H) x 96 (W) x 409.1 (D) mm |
| Weight | 5.15 kg |
| Operating Temperature | 5°C ~ 35°C (41°F ~ 95°F) |
| Humidity | 0 ~ 95% |
| Safety Certifications | CE, FCC, VCCI, C-Tick, UL, CB |
| Warranty | 36 months |
