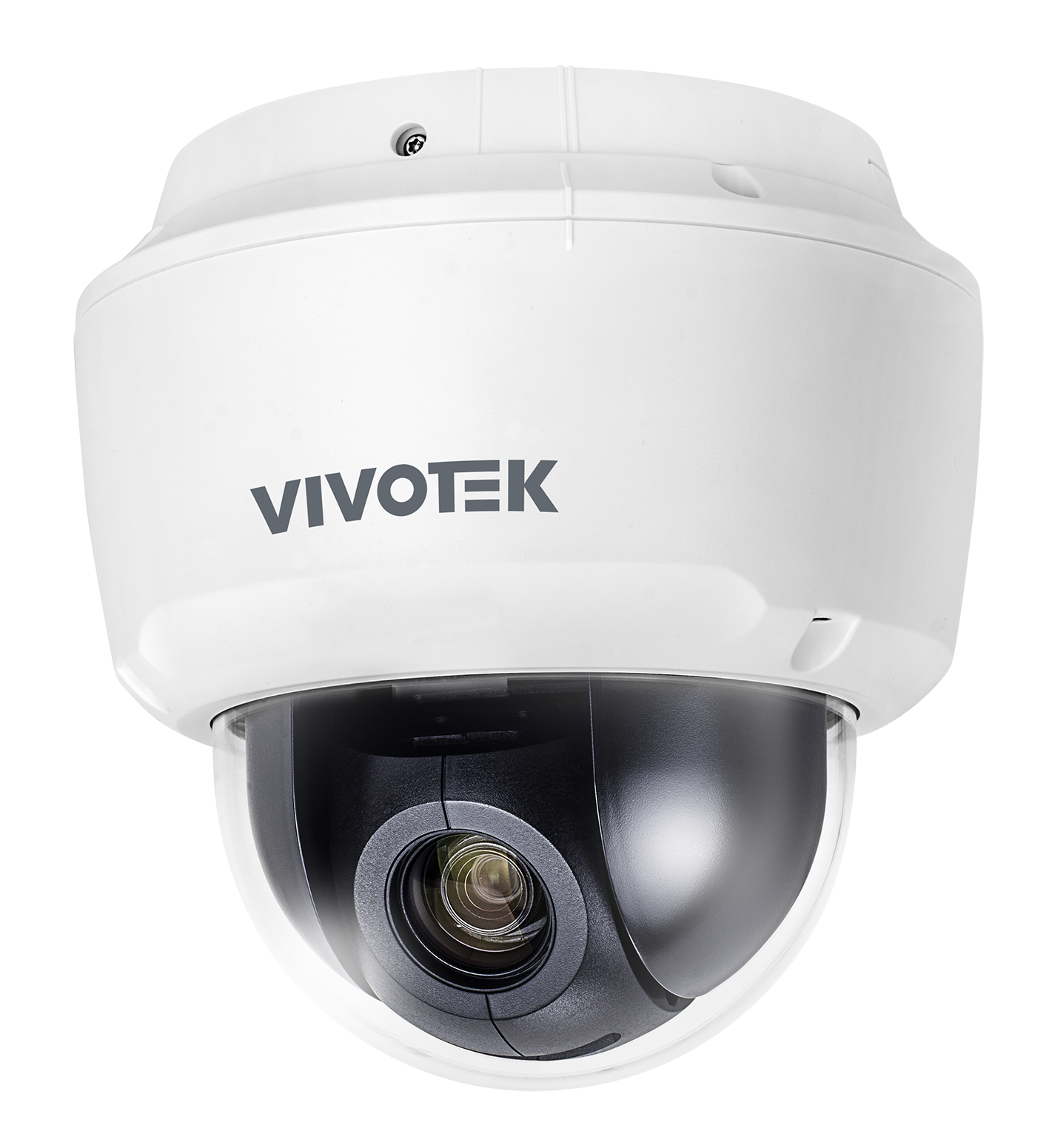

VIVOTEK's SD9161-H-v2 is a high-performance H.265 speed dome network camera, offering 1080p Full HD resolution at 60fps. Equipped with a 10x optical zoom lens and the maneuverability of a sophisticated pan/tilt mechanism, the SD9161-H-v2 is able to capture fine detail at top-notch quality, especially suited for wide-open indoor spaces, such as airports, shopping malls, and hotel lobbies, where the highest levels of reliability and precision are required.
Featuring the Wide Dynamic Range Technology, WDR Pro, the SD9161-H-v2 provides improved visibility in both extremely dark and light environments. Additionally, this unique camera also supports VIVOTEK's sophisticated Smart Stream III, enabling the optimization of quality for desired regions and thus delivering the maximum possible efficiency of bandwidth usage. Combining H.265 compression and VIVOTEK's Smart Stream III technology, users can enjoy bandwidth savings of up to 80%* compared to traditional H.264 systems.
Video surveillance in large areas has the potential for many incidents, SD9161-H-v2's built-in Smart Tracking Advanced (our latest AI technology for Smart VCA) allows user to identify the risk and track a suspected person automatically in real time. SD9161-H-v2 also incorporates many advanced features standard for VIVOTEK cameras, including EIS, MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the SD9161-H-v2 is the ideal solution for your indoor surveillance needs.
Features:
- H.265 Compression Technology 60 fps @ 1920x1080
- 10x Optical Zoom
- Vision Object analytics
- Smart Tracking Advanced
- WDR Pro for Unparalleled Visibility in High Contrast Environments
- Smart Stream III to Optimize Bandwidth Efficiency
- Security Enhanced with Signed Firmware and Trend Micro
| System Information | |
| Model | SD9161-H-v2 |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8GB |
| RAM | 2GB |
| Camera Features | |
| Image Sensor | 1/2.8″ Progressive CMOS |
| Max. Resolution | 1920×1080 (2MP) |
| Lens Type | 10x Optical Zoom, Auto Focus |
| Focal Length | f = 5.1 ~ 51 mm |
| Aperture | F1.6 ~ F1.8 |
| Iris Type | DC-iris |
| Field of View | 57° ~ 6.2° (Horizontal) 34° ~ 3.5° (Vertical) 64° ~ 7.1° (Diagonal) |
| Shutter Time | 1/8 sec. to 1/30,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| Minimum Illumination | 0.14 lux @ F1.6 (Color) 0.005 lux @ F1.6 (B/W) |
| Pan Speed | 0.05° ~ 360°/s |
| Pan Range | 360° endless |
| Tilt Range | 180° |
| Preset Locations | 256 preset locations 128 presets per tour |
| Pan/Tilt/Zoom Functionalities | 32x digital zoom (4x on IE plug-in, 8x built in) Auto pan mode Auto patrol mode |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS) |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 60 fps @ 1920×1080 |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 73 dB |
| Dynamic Range | 100 dB |
| Video Streaming | Adjustable resolution, quality and bit rate control, Smart Stream III |
| Video Streaming | Adjustable resolution, quality and constant bitrate control, Smart Stream III |
| Image Settings | General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings; Illuminators: external illuminators; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness), defog, 3DNR, EIS; Exposure: HLC, exposure control (exposure level, iris adjustment, exposure time, gain control),WDR; Focus; Privacy mask; Scheduled profile settings; Pixel calculator |
| Audio | |
| Audio Capability | Two-way audio (Full duplex) |
| Audio Compression | G.711, G.726, MPEG-2 AAC-LC |
| Audio Interface | External microphone input External line output |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 BaseTX Ethernet (RJ-45) * It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| AI Analytics | |
| Compute Capability | Built-in CNN acceleration module |
| Vision Object Analytics | Object Detection: people, vehicle (4-wheeled, 2-wheeled); Attribute Extraction: people(gender, color, bag, hat), vehicle(bike, bus, car, motorcycle,truck,color); Re-search Extraction; Path Extraction |
| Event Application | Smart Tracking Advanced (intrusion, loitering, line crossing, face detection, unattended object, missing object) |
| Applications | Deep learning VCA (Smart tracking advanced) |
| Solution Integration | |
| VADP Package | Stratocast, Trend Micro IoT Security (3-year free trial) |
| Alarm and Event | |
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, smart tracking advanced trigger, system boot, preset reached, VADP |
| Event Action | Event notification via audio clip, camera link, digital output, email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card; trigger track, trigger patrol, move to preset |
| General | |
| Connectors | RJ-45 cable connector for 10/100Mbps Network/PoE connection Audio line input Audio line output AC/DC 24V power input Digital input *2 Digital output *1 |
| LED Indicator | System power and status indicator |
| Power Input | AC 24V, DC 24V, IEEE 802.3at PoE Class 4 (Simultaneous Power Redundancy Supported) |
| Power Consumption | PoE Max: 17W AC/DC 24V Max: 17W |
| Dimensions | Ø 172 x 157 mm |
| Weight | 1 kg |
| Safety Certifications | EMC: CE (EN 55032 Class A, EN55035), UKCA (BS EN 55032 Class A, BS EN 55035), FCC (FCC Part 15 Subpart B Class A), IC (ICES-003 Issue7:2020 Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UKCA (BS EN 62368-1:2020+A11:2020), UL (UL 62368-1), CB (IEC/EN 62368-1); IA: BIS (IS 13252), BSMI |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) Working Temperature: -10°C ~ 55°C (14°F ~ 131°F) |
| Humidity | 90% RH (non-condensing) |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Others | Indoor pendant mount, quick installation guide, alignment sticker, L-wrench, power cable |
| DORI (EN 62676-4 Standard) | |
| Detect (25PPM/ 8PPF) | Wide: 76.9 m (252.2 ft) Tele: 587.7 m (1928.1 ft) |
| Observe (63PPM/ 19PPF) | Wide: 30.5 m (100 ft) Tele: 233.2 m (765.1 ft) |
| Recognize (125PPM/ 38PPF) | Wide: 30.5 m (100 ft) Tele: 233.2 m (765.1 ft) |
| Identify (250PPM/ 76PPF) | Wide: 7.9 m (25.9 ft) Tele: 58.0 m (190.3 ft) |
