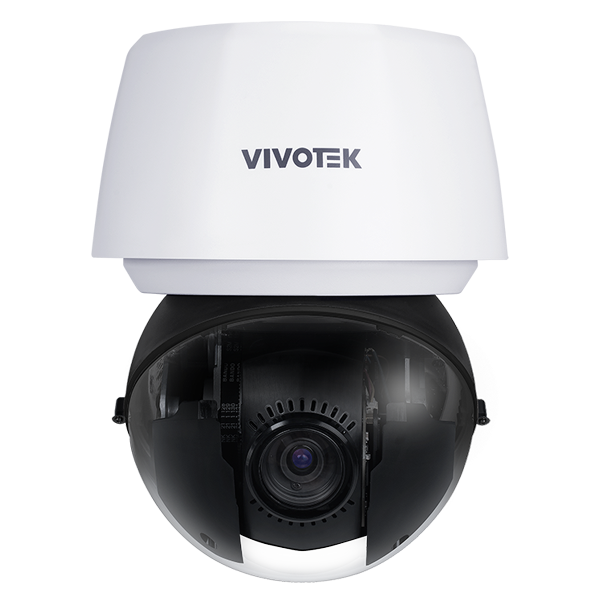

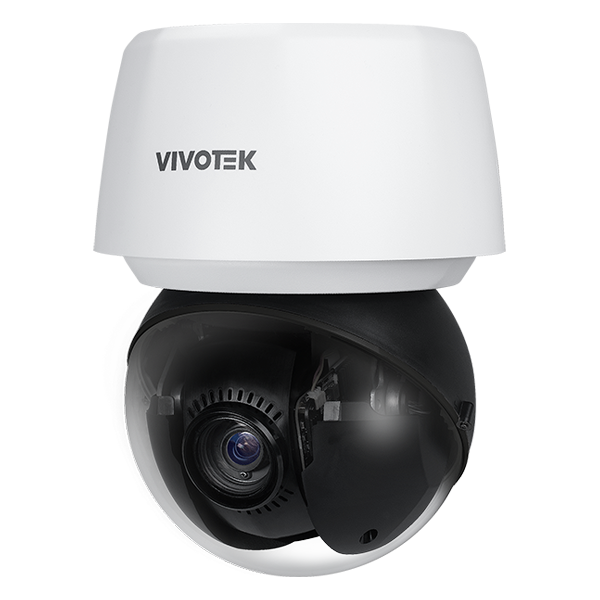

Vivotek - SD9367-EHL - V-Series 2MP 40X Outdoor Lightweight PTZ Dome AI Smart Track
Part number:
Price:
- • 40x optical zoom with autofocus and electronic image stabilisation (EIS).
- • Use Vision Object Analytics to identify people and vehicles.
- • AI-based smart tracking advanced for moving people.
- • WDR Pro for unparalleled visibility.
- • Weatherproof (IP66) and vandal-proof (IK10/NEMA 4X).
| System Information | |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 2 GB |
| Camera Specifications | |
| Image Sensor | 1/2.8" Progressive CMOS |
| Max. Resolution | 1920x1080 (2MP) |
| Lens Type | 40x Optical Zoom, Auto Focus |
| Focal Length | 4.25~170mm (40x zoom) |
| Aperture | F1.6~4.95 |
| Iris Type | DC-Iris |
| Field of View (H/V/D) | 65.7° ~ 1.9° / 39.4° ~ 1.1° / 73.0° ~ 2.1° |
| Shutter Time | 1 sec. to 1/100,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Minimum Illumination | 0.05 lux @ F1.6 (Color)(30IRE) <0.005 lux @ F1.6 (B/W)(30IRE) |
| Pan Speed | 0.05° ~ 450°/sec |
| Pan Range | 360° endless |
| Tilt Speed | 0.05° ~ 450°/sec |
| Tilt Range | -20° ~ +90° (Effective coverage 220° via auto flip) |
| Preset Location | 256 preset locations, 128 presets per tour |
| Pan/Tilt/Zoom Functionalities | 8x digital zoom, Auto Pan/Patrol mode, Mechanical Auto flip |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card (1TB supported) and NAS |
| Built-in Installation Aids | Remote focus, remote zoom |
| Video | |
| Compression | H265, H264, MJPEG |
| Maximum Frame Rate | 30 fps @ 1920x1080 (WDR on) 60 fps @ 1920x1080 (WDR off) |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 60 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constrained bit rate control, Smart Stream III |
| Image Settings | General settings video title and time stamp overlay, video orientation (flip, mirror), day/night settings Image settings white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, HLM, 3DNR, EIS, scene mode (auto, deblur) Exposure BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR Focus Privacy mask Scheduled profile settings Pixel calculator |
| Audio | |
| Audio Capability | Two-Way Audio (full duplex) |
| Compression | MPEG-2 AAC-LC, G.711, G.726 |
| Interface | External line input External line output |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, Dos Protection, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), User access log, User account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T, M supported, specification available at www.onvif.org |
| AI Analytics | |
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics - Object Detection | People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Bestshot, Path Extraction |
| Vision Object Analytics - Attribute Extraction | People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color) Human face Bestshot, Re-Search Extraction |
| Application | Deep Learning VCA (Smart Tracking Advanced) |
| Smart VCA - Group 1 | Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, face detection) |
| Smart VCA - Group 2 | Unattended object detection, Missing object detection |
| Smart VCA - Group 3 | Parking Violation Detection, Restricted Zone Detection *Support for more analytic applications and free trial, please visit VIVOTEK website. |
| Solution Integration - VADP Package | Trend Micro IoT Security (3-year free trial), Event action through Http/Https |
| Alarm and Event | |
| Event Trigger | Audio detection*, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input*, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, smart tracking advanced trigger, system boot, preset reached *Requires AO-008 cable |
| Event Action | Event notification via audio clip*, camera link, digital output*, email, HTTP, FTP/SFTP, NAS server, SD card, push notification File upload via email, HTTP, FTP/SFTP, NAS server, SD card *Requires AO-008 cable |
| General | |
| Connectors | RJ-45 cable connector for 10/100Mbps Network/PoE connection Audio line input* Audio line output* DC 48V power input AC 24V power input Digital input*2* Digital output*1* RS-485*1* * Requires AO-008 cable |
| LED Indicator | System power and status indicator |
| Power Input | AC 24V, DC48V, IEEE 802.3 at PoE class 4 (Simultaneous Power Redundancy Supported) |
| Power Consumption | PoE: Max. 22.5W/25.5W (Heater & Fan off/on) DC 48V: Max. 22.5W/25.5W (Heater & Fan off/on) AC 24V: Max. 22.5W/25.5W (Heater & Fan off/on) |
| Dimensions | Ø174x 276 mm |
| Weight | 4.5 kg |
| Certifications | EMC: CE (EN 55032 Class A, EN55035, EN50121-4), UKCA (BS EN 55032: 2015 +A11: 2020 , BS EN 55035: 2017), FCC (FCC Part 15 Subpart B Class A), IC (ICES-003:2020 Issue7, Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A) Safety: UKCA (BS EN 62368-1:2014+A11:2017), UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) Environment: IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Type 4X) IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1) |
| Operating Temperature | Starting Temperature: -40°C ~ 55°C (-40°F ~ 131°F) Working Temperature: -40°C ~ 55°C (-40°F ~ 131°F) |
| Humidity | 98% RH (non-condensing) |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | T25 L-wrench, Waterproof round cap, Quick installation guide, Terminal blocks (for DI/DO audio, AC/DC/GND wires, RS485), Ground wire. |
| DORI (EN 62676-4 Standard) | |
| Detection (25PPM/ 8PPF) | Wide: 61.1 m (200.4 ft) Tele: 2370 m (7778.3 ft) |
| Observation (63PPM/ 19PPF) | Wide: 24.4 m (80 ft) Tele: 854.15 m (2802.1 ft) |
| Recognition (125PPM/ 38PPF) | Wide: 12.2 m (40 ft) Tele: 414.2m (1358.9 ft) |
| Identification (250PPM/ 76PPF) | Wide: 6.1 m (20 ft) Tele: 208.3 m (683.5 ft) |
Name
Description
Size
Downloads
File
Spec_SD9367-EHL_EN.pdf
0.6mb
File
Datasheet_V-series_PTZ_AI_Camera_EN.pdf
0.7mb
This high-performance, 2-megapixel outdoor Pan-Tilt-Zoom camera features built-in AI analytics. It features a 1/2.8" CMOS sensor and a powerful 40x optical zoom lens 4.25–170 mm, offering a horizontal field of view ranging from 65.7° wide to 1.9° telephoto. Utilising a System-on-Chip with 2 GB of RAM and a dedicated hardware accelerator for deep learning tasks, the camera is capable of onboard people and vehicle detection, attribute extraction, and advanced tracking.
The camera supports H.265, H.264 and MJPEG video compression at a maximum of 60 fps at 1080p. It includes 120 dB WDR Pro and a removable IR-cut filter for day/night operation. It also features dual power redundancy (PoE++ 802.3at, DC 48 V or AC 24 V). The camera is housed in a robust IK10- and IP66/NEMA 4X-rated casing and operates from -40°C to 55°C.
