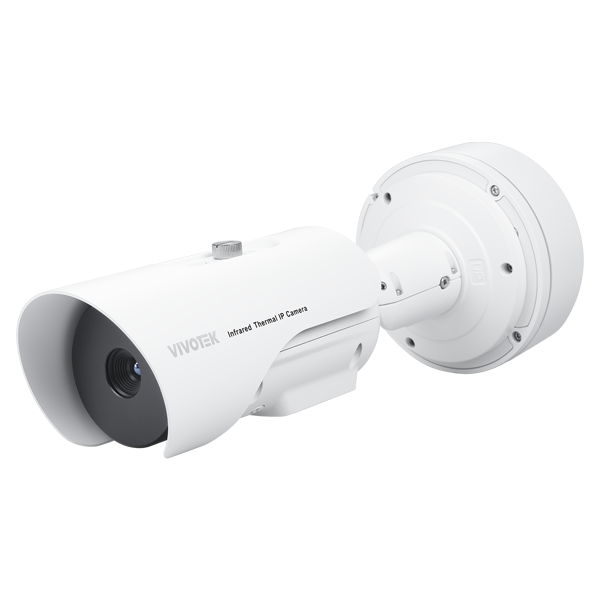

Vivotek - TB9332-E(50mm) - S-Series HiRes Thermal IP Bullet Camera 50mm
Part number:
TB9332-E(50mm)
Price:

24/7 Monitoring in non-visible environment: Harnessing heat radiation for superior threat detection in challenging environments, this technology effectively penetrates total darkness, bright glare, deep shadows, smoke, and fog. By capturing clear images based on heat signatures, thermal cameras provide constant, reliable surveillance. The system enables security personnel to identify potential threats in conditions where traditional cameras and the human eye falter, ensuring uninterrupted monitoring in visually complex settings.



Enhance security with VCA detection: Elevate your security with our thermal camera's VCA system, featuring Object Classification that distinguishes between humans and vehicles. This advanced technology accurately detects intrusions, unauthorized crossings, and suspicious loitering while minimizing false alarms triggered by wildlife or environmental factors, significantly enhancing operational efficiency and ensuring rapid response to genuine threats across diverse settings.



Safeguard Assets with Temperature Measurement: Safeguard your critical assets and prevent disasters with our thermal camera's comprehensive protection suite, featuring precision temperature monitoring with instant alerts, early fire spot detection, and unauthorized smoking identification, empowering you to take immediate action against potential threats in various environments.



Features:

  • 640x512 thermal resolution
  • NETD < 40 mK @ F1.0
  • Video Analytics (Intrusion, Line Crossing)
  • Object Classification, Trigger by human/vehicle
  • Temperature Measurement & Alarms
System Information-
CPUMultimedia SoC (System-on-Chip)
Flash16GB
RAM1GB
Camera Speci cations-
Image SensorUncooled VOx Micro bolometer
Max. Resolution

Effective pixels: 640x512

Image scale up to: 1280x1024

Lens TypeFixed-focal (Thermal lens)
Focal Lengthf = 50 mm
ApertureF1.0
Iris TypeFixed iris
Field of View

8° (Horizontal)

7° (Vertical)

Pan/Tilt/Zoom FunctionalitiesePTZ: 4x digital zoom
StorageMicroSD/SDHC/SDXC card (256GB capacity supported)
Pixel Size12 µm
Spectral Range8 ~ 14 µm
SensitivityNETD < 40 mK
Video-
CompressionH.265, H.264
Maximum Frame Rate25 fps @ 1280x1024
Maximum Streams2 simultaneous streams
Main Stream25fps @ 1280x1024, 1280x720, 640x512
2nd Stream25fps @ 704x576 , 352x240,
Video StreamingAdjustable resolution, CBR/VBR, Smart Encode
Image Settings

General settings video title and time stamp overlay, video orientation ( ip, mirror, rotation)

Thermal settings white balance, image adjustment (brightness, contrast, sharpness)

Privacy mask

Scheduled pro le settings

Audio-
Audio CapabilityTwo-way audio
CompressionG.711, RAW_PCM
InterfaceExternal microphone input, External line output
Network-
UsersLive viewing for up to 10 clients
SecurityAccess list, Password protection, user access log, user account management
ProtocolsIPv4/IPv6, HTTP, RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, HTTPS, 802.1x, QOS, NTP, TCP/IP, FTP, UPnP, DDNS, ICMP, IGMP
Interface

10 Base-T/100 Base-TX Ethernet (RJ-45)

*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

ONVIFPro le G, S, T supported, speci cation available at www.onvif.org
AI Analytics-
Compute CapabilitySoC with built-in hardware deep learning accelerator (4T)
Application

Temperature measurement alarms (difference, threshold, section, rise),

Early Fire Detection (Fire spot detection, Smoking detection)

VCA (Intrusion, Single line crossing, Double line crossing, Loitering, Wrong way, Enter, Leave)

Support VCA alarms triggering by person, car, person or car; Support temperature alarms triggering by ignoring person, car, person or car

Solution Integration-
Video motion detectionSmart motion detection
Alarm and Event-
Event TriggerMotion detection, I/O alarm, Disk alarm, VCA alarm, Temperature alarm
Event Action'Event noti cation via audio clip, digital output, email, FTP, SD card
General-
Connectors

RJ-45 cable connector for 10/100 Mbps Network/PoE connection

Audio input

Audio output

DC 12V power input

AC 24V power input

Digital input *2

Digital output *2

BNC

RS485

LED IndicatorSystem power and status indicator
Power InputAC 24V, DC 12V, IEEE 802.3af PoE Class 2
Power ConsumptionMax. 5W
Dimensionsø141.8 x 404.1 mm
Weight2350g
Certi cations

EMC: CE (EN 55032, Class B), FCC (FCC Part 15 Subpart B), UKCA (BS EN 55032 Class B)

Environment: IP66

Operating TemperatureWorking Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
Humidity90%
System Requirements-
Operating System

Microsoft Windows 10/8/7

Mac 10.12 (Chrome only)

Web Browser

Chrome 58.0 or above

Internet Explorer 10/11

Other PlayersVLC: 1.1.11 or above
Temperature Measurement-
Temperature Range-20°C to 150°C (-4°F to 302°F)
Measurement Rule-
Temperature AlarmThreshold alarm, Temperature difference alarm, Temperature rise alarm, Section alarm
Accuracy± 2°C / ±2%
Included Accessories-
Packing ContentsQuick installation guide, alignment sticker, screw pack, waterproof accessory bag, junction box, sunshield
