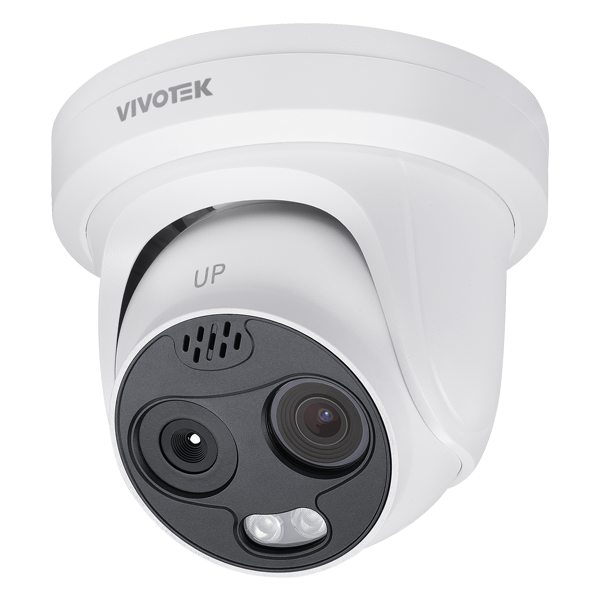

- Bi-spectrum Thermal with 256 x 192 thermal & 4MP
- NETD < 50 mK @ F1.0
- Video Analytics (Intrusion, Line Crossing)
- Object Classification, Trigger by human/vehicle
- Temperature Measurement & Alarms
| Camera Speci cations | - |
| Image Sensor | Dual sensor: Uncooled VOx Micro bolometer 1/2.7" Progressive CMOS |
| Max. Resolution | Thermal lens: Effective pixels: 256x192 Image scale up to: 704x576 Optical lens: 2560x1440 |
| Lens Type | Fixed-focal (Thermal lens) Fixed-focal (optical lens) |
| Focal Length | Thermal lens: f = 3.5 mm optical lens: f = 4 mm |
| Aperture | Thermal lens: F1.0 optical lens: F1.6 |
| Iris Type | Fixed iris |
| Field of View | Thermal lens(3.5mm) 48°(Horizontal) 36° (Vertical) optical lens (4mm) 92° (Horizontal) 46°(Vertical) |
| Illuminators | Built-in IR Illuminator up to 35 meters; White light for strobe light warning |
| Pan/Tilt/Zoom Functionalities | ePTZ: 4x digital zoom |
| Storage | MicroSD/SDHC/SDXC card (256GB capacity supported) |
| Pixel Size | 12 µm |
| Spectral Range | 8 ~ 14 µm |
| Sensitivity | NETD < 50 mK |
| Video | - |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | Thermal: 25 fps @ 704x576 Optical: 25 fps @ 2560x1440 |
| Maximum Streams | 2 simultaneous streams each sensor |
| Main Stream | Thermal: 25fps@704x576 Optical: 25fps@2560x1440, 2304x1296,1920x1080, 1280x720 |
| 2nd Stream | Thermal: 25fps@704x576 , 352x240, 256x192 Optical: 25fps@704x576 , 640x480 |
| Video Streaming | Adjustable resolution, CBR/VBR, Smart Encode |
| Image Settings | General settings video title and time stamp overlay, video orientation ( ip, mirror, rotation) Thermal settings white balance, image adjustment (brightness, contrast, sharpness) Privacy mask Scheduled pro le settings |
| Audio | - |
| Audio Capability | Two-way audio |
| Compression | G.711, RAW_PCM |
| Interface | External microphone input External line output, Built-in microphone & speaker |
| Storage | MicroSD/SDHC/SDXC card (256GB capacity supported) |
| Pixel Size | 12 µm |
| Spectral Range | 8 ~ 14 µm |
| Sensitivity | NETD < 50 mK |
| Network | - |
| Users | Live viewing for up to 10 clients |
| Security | Access list, Password protection, user access log, user account management |
| Protocols | IPv4/IPv6, HTTP, RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, HTTPS, 802.1x, QOS, NTP, TCP/IP, FTP, UPnP, DDNS, ICMP, IGMP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Pro le G, S, T supported, speci cation available at www.onvif.org |
| AI Analytics | - |
| Compute Capability | SoC with built-in hardware deep learning accelerator (1T) |
| Application | Temperature measurement alarms (difference, threshold, section, rise), Early Fire Detection (Fire spot detection, Smoking detection, Smoke & ame detection) VCA (Intrusion, Single line crossing, Double line crossing, Loitering, Wrong way, Enter, Leave) Support VCA alarms triggering by person, car, person or car; Support temperature alarms triggering by ignoring person, car, person or car |
| Solution Integration | - |
| Video motion detection | Smart motion detection |
| Alarm and Event | - |
| Event Trigger | Motion detection, I/O alarm, Disk alarm, VCA alarm, Temperature alarm |
| Event Action | Event noti cation via audio clip, digital output, email, FTP, SD card; white light ashing and horn warning |
| Included Accessories | - |
| Packing Contents | Quick installation guide, alignment sticker, screw pack, waterproof accessory bag |
