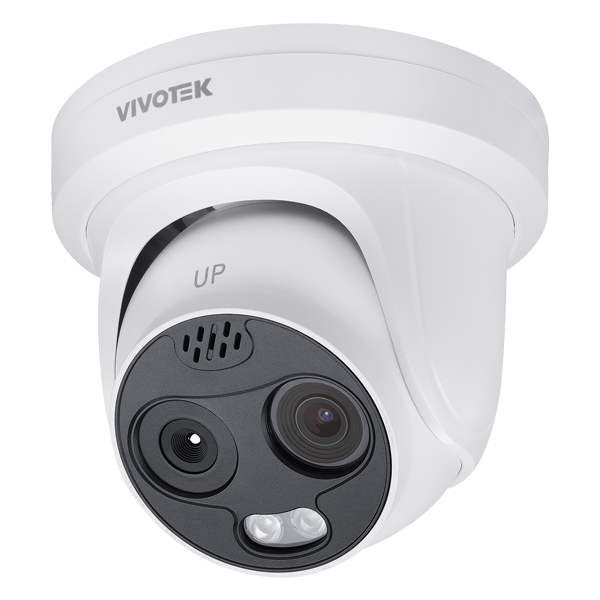

Vivotek - TT9333-E(7mm) - S-Series Bi-Spectrum Thermal IP Turret Camera 7mm

Name: Vivotek - TT9333-E(7mm) - S-Series Bi-Spectrum Thermal IP Turret Camera 7mm
Brand: Vivotek
SKU: TT9333-E(7mm)

Part number:

TT9333-E(7mm)

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

24/7 Monitoring in non-visible environment: Harnessing heat radiation for superior threat detection in challenging environments, this technology effectively penetrates total darkness, bright glare, deep shadows, smoke, and fog. By capturing clear images based on heat signatures, thermal cameras provide constant, reliable surveillance. The system enables security personnel to identify potential threats in conditions where traditional cameras and the human eye falter, ensuring uninterrupted monitoring in visually complex settings.

Enhance security with VCA detection: Elevate your security with our thermal camera's VCA system, featuring Object Classification that distinguishes between humans and vehicles. This advanced technology accurately detects intrusions, unauthorized crossings, and suspicious loitering while minimizing false alarms triggered by wildlife or environmental factors, significantly enhancing operational efficiency and ensuring rapid response to genuine threats across diverse settings.

Safeguard Assets with Temperature Measurement: Safeguard your critical assets and prevent disasters with our thermal camera's comprehensive protection suite, featuring precision temperature monitoring with instant alerts, early fire spot detection, and unauthorized smoking identification, empowering you to take immediate action against potential threats in various environments.

Features:

Bi-spectrum Thermal with 256 x 192 thermal & 4MP
NETD < 50 mK @ F1.0
Video Analytics (Intrusion, Line Crossing)
Object Classification, Trigger by human/vehicle
Temperature Measurement & Alarms

Camera Speci cations	-
Image Sensor	Dual sensor: Uncooled VOx Micro bolometer 1/2.7" Progressive CMOS
Max. Resolution	Thermal lens: Effective pixels: 256x192 Image scale up to: 704x576 Optical lens: 2560x1440
Lens Type	Fixed-focal (Thermal lens) Fixed-focal (optical lens)
Focal Length	Thermal lens: f = 7 mm optical lens: f = 8 mm
Aperture	Thermal lens: F1.0 optical lens: F2.0
Iris Type	Fixed iris
Field of View	Thermal lens (7mm) 24°(Horizontal) 18° (Vertical) optical lens (8mm) 40° (Horizontal) 20°(Vertical)
Illuminators	Built-in IR Illuminator up to 50 meters; White light for strobe light warning
Pan/Tilt/Zoom Functionalities	ePTZ: 4x digital zoom
Storage	MicroSD/SDHC/SDXC card (256GB capacity supported)
Pixel Size	12 µm
Spectral Range	8 ~ 14 µm
Sensitivity	NETD < 50 mK
Video	-
Compression	H.265, H.264, MJPEG
Maximum Frame Rate	Thermal: 25 fps @ 704x576 Optical: 25 fps @ 2560x1440
Maximum Streams	2 simultaneous streams each sensor
Main Stream	Thermal: 25fps@704x576 Optical: 25fps@2560x1440, 2304x1296,1920x1080, 1280x720
2nd Stream	Thermal: 25fps@704x576 , 352x240, 256x192 Optical: 25fps@704x576 , 640x480
Video Streaming	Adjustable resolution, CBR/VBR, Smart Encode
Image Settings	General settings video title and time stamp overlay, video orientation ( ip, mirror, rotation) Thermal settings white balance, image adjustment (brightness, contrast, sharpness) Privacy mask Scheduled pro le settings

Audio	-
Audio Capability	Two-way audio
Compression	G.711, RAW_PCM
Interface	External microphone input External line output, Built-in microphone & speaker

Storage	MicroSD/SDHC/SDXC card (256GB capacity supported)
Pixel Size	12 µm
Spectral Range	8 ~ 14 µm
Sensitivity	NETD < 50 mK

Video	-
Compression	H.265, H.264, MJPEG
Maximum Frame Rate	Thermal: 25 fps @ 704x576 Optical: 25 fps @ 2560x1440
Maximum Streams	2 simultaneous streams each sensor
Main Stream	Thermal: 25fps@704x576 Optical: 25fps@2560x1440, 2304x1296,1920x1080, 1280x720
2nd Stream	Thermal: 25fps@704x576 , 352x240, 256x192 Optical: 25fps@704x576 , 640x480
Video Streaming	Adjustable resolution, CBR/VBR, Smart Encode
Image Settings	General settings video title and time stamp overlay, video orientation ( ip, mirror, rotation) Thermal settings white balance, image adjustment (brightness, contrast, sharpness) Privacy mask Scheduled pro le settings

Network	-
Users	Live viewing for up to 10 clients
Security	Access list, Password protection, user access log, user account management
Protocols	IPv4/IPv6, HTTP, RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, HTTPS, 802.1x, QOS, NTP, TCP/IP, FTP, UPnP, DDNS, ICMP, IGMP
Interface	10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF	Pro le G, S, T supported, speci cation available at www.onvif.org
AI Analytics	-
Compute Capability	SoC with built-in hardware deep learning accelerator (1T)
Application	Temperature measurement alarms (difference, threshold, section, rise), Early Fire Detection (Fire spot detection, Smoking detection, Smoke & ame detection) VCA (Intrusion, Single line crossing, Double line crossing, Loitering, Wrong way, Enter, Leave) Support VCA alarms triggering by person, car, person or car; Support temperature alarms triggering by ignoring person, car, person or car
Solution Integration	-
Video motion detection	Smart motion detection
Alarm and Event	-
Event Trigger	Motion detection, I/O alarm, Disk alarm, VCA alarm, Temperature alarm
Event Action	Event noti cation via audio clip, digital output, email, FTP, SD card; white light ashing and horn warning
Included Accessories	-
Packing Contents	Quick installation guide, alignment sticker, screw pack, waterproof accessory bag
