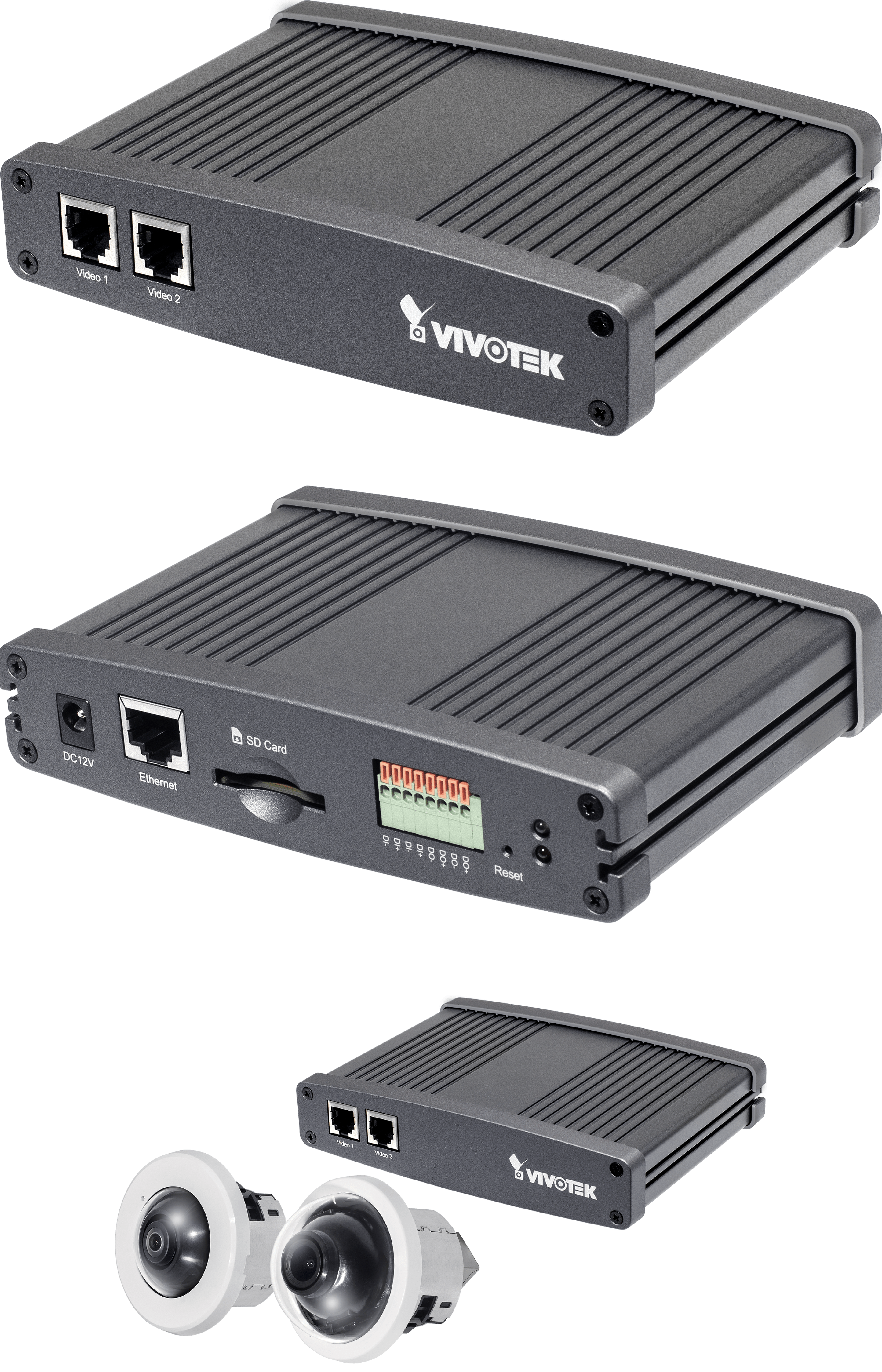

VIVOTEK VC8201 is a split-type camera system, which the camera unit and the video core are separated. With the separated design, it enables the camera unit to be much smaller, making installation easier as well as blending in decoration easily. In addition, the VC8201 can connect up to two 5-Megapixel camera units with 8-meter long cables (available separately), dramatically saving installation effort. The camera units CU8131 and CU8171 are designed as recessed dome type, in order to fit in the decoration. The CU8131 is equipped with a 1MP sensor and features WDR Pro technology, allowing the camera to capture clear images with high-contrast scenes. The CU8171 is built with a 5MP sensor and fisheye lens to provide a 360° surround view without blind spots. The VC8201 can support different combinations of two camera units, making the installation more flexible. Incorporating a number of advanced features of VIVOTEK cameras, including 3DNR, tamper detection, 802.3af compliant PoE, SD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the VC8201 is the best solution of indoor video surveillance.

CU8131 (1 MP Fixed) Camera Unit Features

• Max Resolution & Frame Rate: 30 fps @ 1280x800
• Image Sensor: 1/3" Progressive CMOS
• Day/Night: No
• Mechanical IR Cut Filter: No
• Minimum Illumination: 1.05 Lux @ F1.8, 50 IRE (Color)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Fixed-focal
• Focal Length: f=3.6 mm, F1.8
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: N/A
• Focus: Auto
• WDR Technology: WDR Pro
• Field of View: 86° (Horizontal); 51° (Vertical); 103° (Diagonal)
• Built-In Microphone: Yes
• Audio Capabilities: Listening only via built-in microphone
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: Ø: 60 mm x 93 mm
• Weight: 58 g
• Operating Temperature: -10°C ~ 40°C (14°F ~ 104°F)
• Operating Humidity: N/A

CU8171 (5 MP Fisheye) Camera Unit Features

• Max Resolution & Frame Rate: 15 fps @ 1696x1696
• Image Sensor: 1/2.5" Progressive CMOS
• Day/Night: No
• Mechanical IR Cut Filter: No
• Minimum Illumination: 0.66 Lux @ F2.0, 50 IRE (Color)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Fisheye
• Focal Length: f=2.7 mm, F2.0
• Zoom: ePTZ: 12x digital zoom
• Iris: N/A
• Focus: Auto
• WDR Technology: WDR Enhanced
• Field of View: 180° (horizontal, vertical, & diagonal)
• Built-In Microphone: Yes
• Audio Capabilities: Listening only via built-in microphone
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: Ø: 60 mm x 81 mm
• Weight: 51 g
• Operating Temperature: -10°C ~ 40°C (14°F ~ 104°F)
• Operating Humidity: N/A

VC8201 Video Core Features

• Compression Styles: H.264 & MJPEG
• Image Settings: Adjustable resolution, quality and bitrate, Configurable video cropping for bandwidth saving, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white , balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction
• Privacy Mask: Yes
• Alarm/Event Management: 5-window Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
• ONVIF: Yes
• Security: N/A
• Users: 10 clients on-line monitoring at the same time
• On-board Storage: SD/SDHC/SDXC Card Slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: 145 mm (W) x 105 mm (D) x 32 mm (H)
• Weight: 360 g
• Operating Temperature: - -10°C ~ 50°C (14°F ~ 122°F)
• Operating Humidity: N/A
• Power/Consumption: IEEE 802.3af PoE/Max 10.8 W; DC 12V/9.3 W
• Warranty: 2 Years
• What's Included: 2 Cameras, Video core box, Quick installation guide, warranty card, installation kit, 5-meter connection cable x 2, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software)
