Digital Watchdog - DWC-VFZWM - Wall Mount Bracket For Outdoor Dome Cameras
Part number:
DWC-VFZWM
Price:
Product Overview

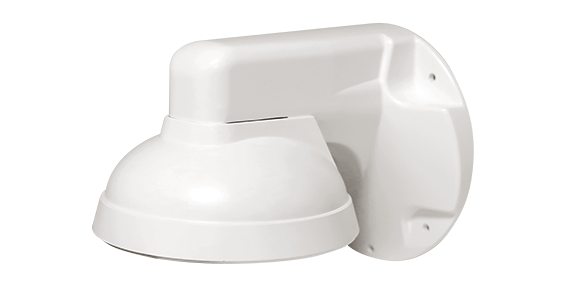

Digital Watchdog DWC-VFZWM is a wall mount bracket designed for selected vandal dome and turret cameras. Constructed of aluminum alloy with an ivory finish spray treatment, the bracket is suitable for both indoor and outdoor use. It includes a mounting template, screws, plastic anchors, camera mounting screws, a hexagonal wrench, and a mounting pad for easy installation.
Key Configuration
- • Material: aluminum alloy with finish spray treatment
- • Color: ivory
- • Working temperature: -40°F to 140°F (-40°C to 60°C)
- • Working humidity: 10%–90%
- • Accessory weight: 1.54 lbs (700 g)
| Compliance | NDAA |
| Max load bearing | The mounting surface must bear five times the weight of the camera and bracket |
| Material | Alluminium alloy |
| Color | Ivory |
| Working Temperatures | -40°F~140°F (-40°C~60°C) |
| Working humidity | 10%~90% |
| Mounting options | Wall, Indoor, Outdoor |
| Warranty | 1 year warranty |
| Included accessories | QSG, Mounting template, Screws and plastic anchors, Camera mounting screws, Hexagonal wrench, Mounting pad |
| Accessory Weight | 1.54 lbs (700 g) |
Name
Description
Size
Downloads
File
Specifications
0.2mb
File
Quick Installation Guide
0.4mb
