Digital Watchdog - DWC-VFWMW - Wall Mount Bracket, White

Part number:
DWC-VFWMW
Price:

Product Overview

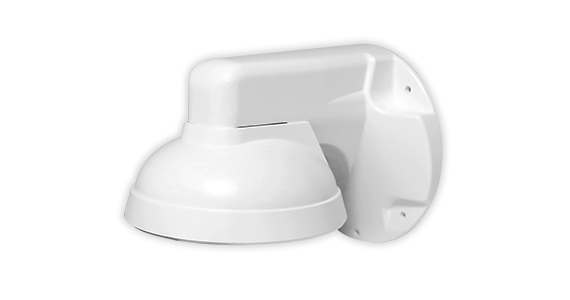

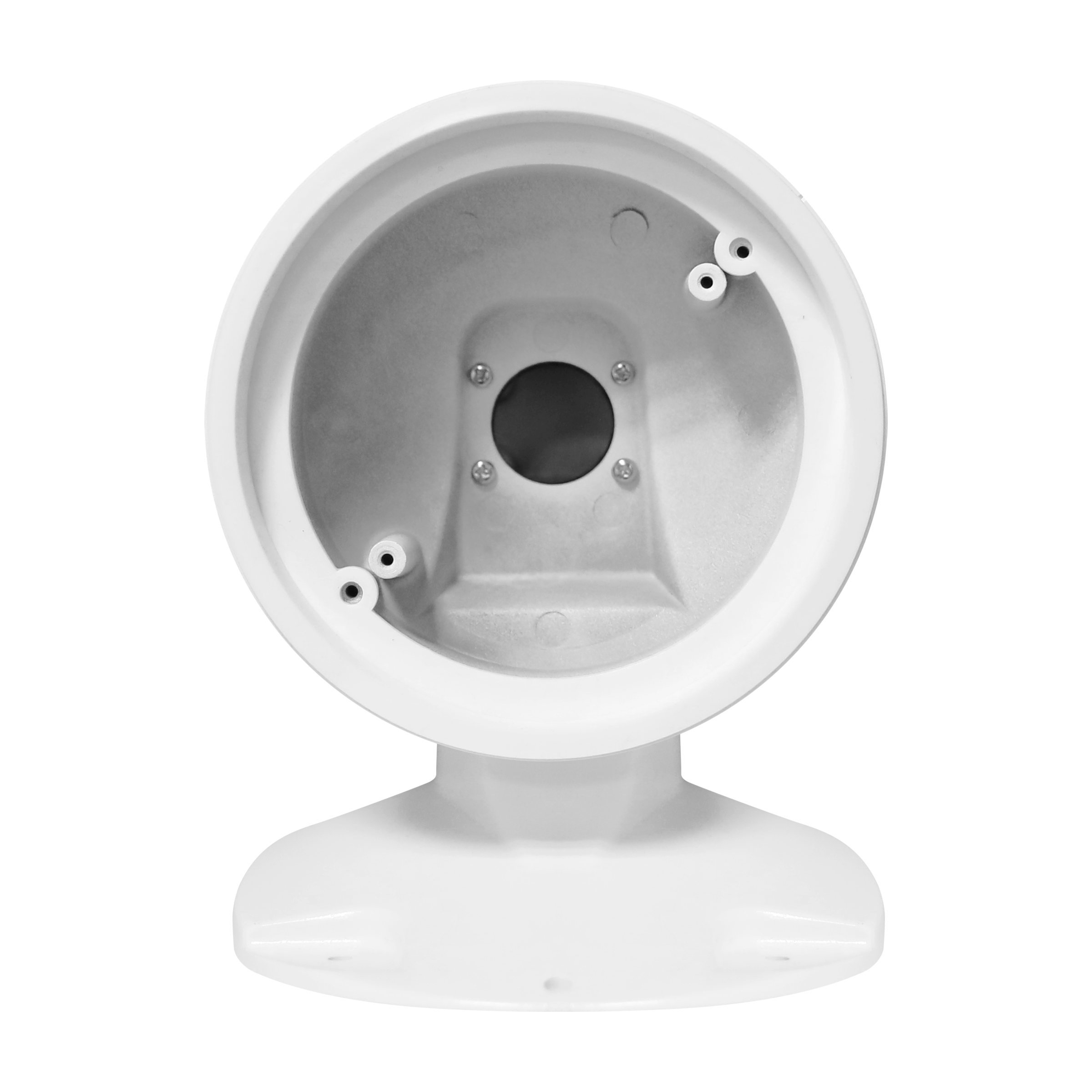

Digital Watchdog DWC-VFWMW is a wall mount bracket designed for selected vandal dome and turret cameras. Constructed of aluminum alloy with a white finish spray treatment, the bracket is suitable for both indoor and outdoor use. The mount includes a mounting template, screws, plastic anchors, camera mounting screws, a hexagonal wrench, and a mounting pad for easy installation.


Key Configuration

  • • Material: aluminum alloy with finish spray treatment
  • • Color: white
  • • Working temperature: -40°F to 140°F (-40°C to 60°C)
  • • Working humidity: 10%–90%
  • • Accessory weight: 1.54 lbs (700 g)


Technical Context

Mounting options: wall, indoor, outdoor. Included accessories: quick start guide, mounting template, screws and plastic anchors, camera mounting screws, hexagonal wrench, mounting pad.


Installation Notes

Weighing 1.54 lbs, this bracket offers a robust, high-impact solution for vertical surfaces. It is precision-drilled to match specific Digital Watchdog camera bases, ensuring a fast and accurate setup. The bracket system is backed by a 1-year warranty.

ComplianceNDAA
Max load bearingThe mounting surface must bear five times the weight of the camera and bracket
MaterialAlluminium alloy
ColorWhite
Working Temperatures-40°F~140°F (-40°C~60°C)
Working humidity10%~90%
Mounting optionsWall, Indoor, Outdoor
Warranty1 year warranty
Included accessoriesQSG, Mounting template, Screws and plastic anchors, Camera mounting screws, Hexagonal wrench, Mounting pad
Accessory Weight1.54 lbs (700 g)
Name
Description
Size
Downloads
File
Specifications
0.2mb
File
Quick Start Guide
0.4mb
