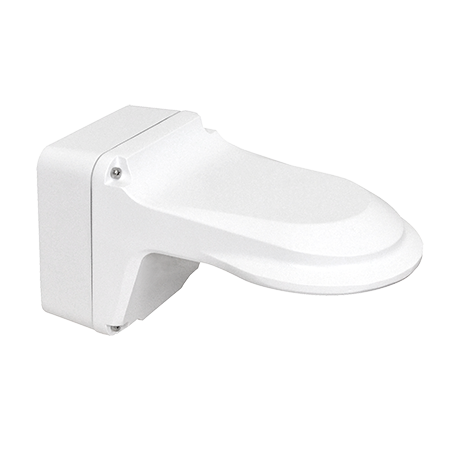

Wall Mount with Built-in Junction Box (for Z91, Z94, Z95,Z97,Z98, Z77, Z81, Z82, Z85, Z86, Z87, A7X)
| Device | |
| Product Type | Camera Mount |
| Description | Wall Mount with Built-in Junction Box (for Z91, Z94, Z95, Z97,Z98, Z77, Z81, Z82, Z85, Z86) |
| General |
| Thread Size | PF 3/4" (conduit gland or cable gland not included.) |
| Weight | 1035g (2.282lb) |
| Dimensions | (W x H x D): 233mm x 126mm x 126mm (9.2" x 5.0" x 5.0") |
| Color | White |
| Material | Aluminum |
| Warranty | 1 Year(s) |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
File
Dimension Diagram
0.1mb
