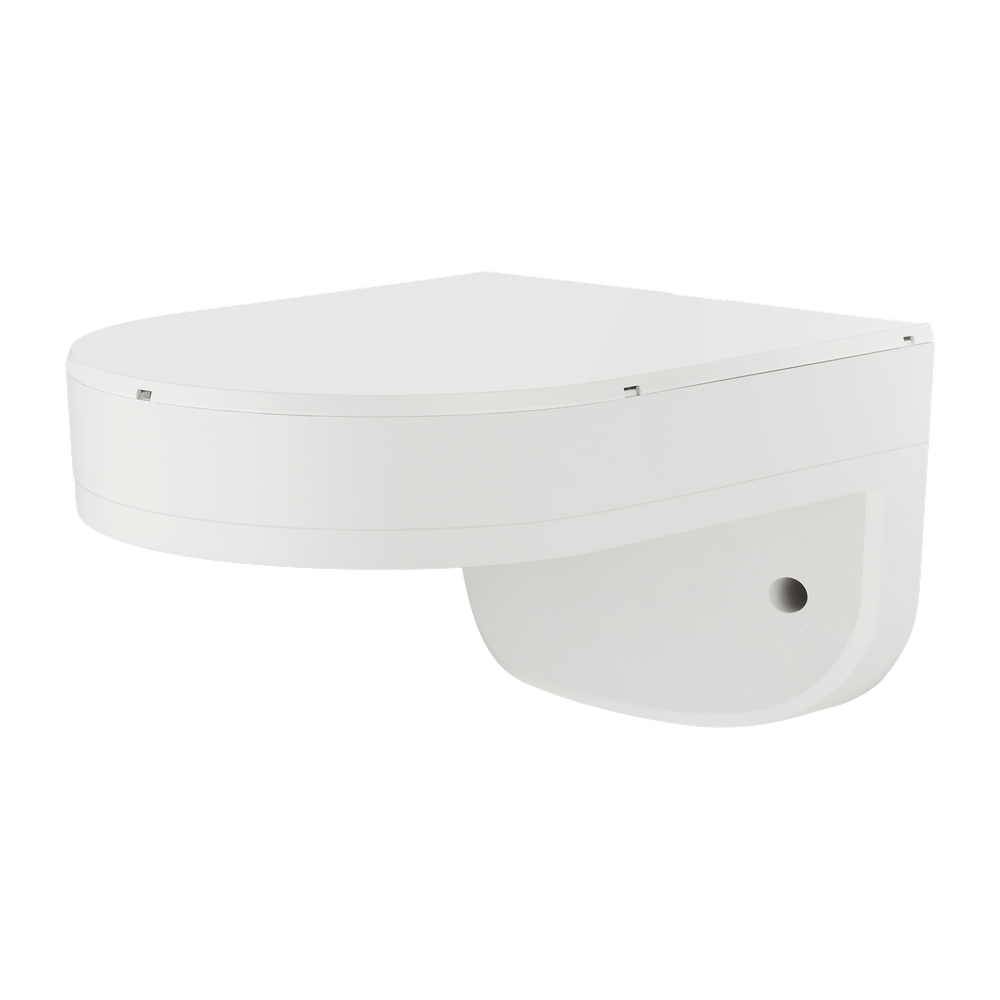

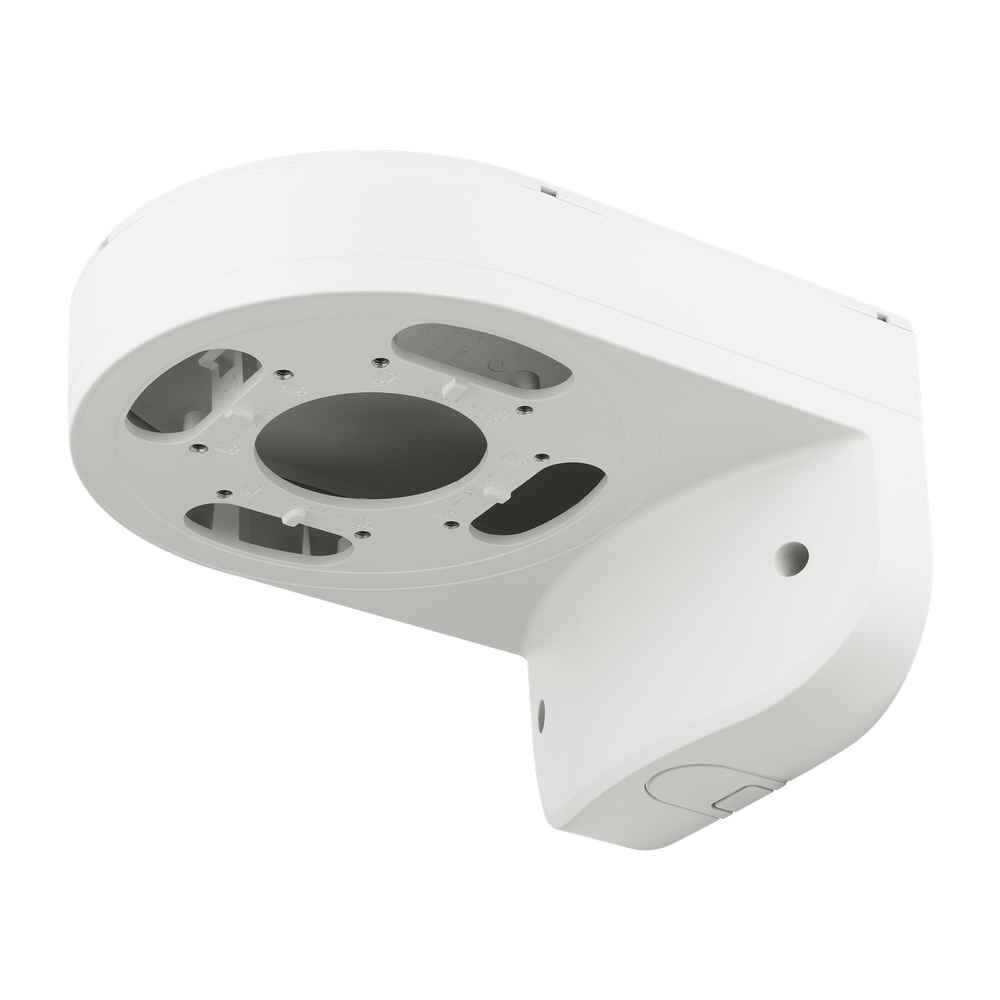

Hanwha - SBP-160WMW1 - Wall Mount (White)
Part number:
SBP-160WMW1
Price:
Wall mount Compatible models: XND-C6083RV/C7083RV/C8083RV/C9083RV, XND-6083RV/8083RV/9083RV, XNV-C6083R/C7083R/C8083R/C9083R, XND-8082RV/9082RV, XNF-9010RV/9013RV, PND-A6081RV/A9081RV
| Color | White |
| Material | Body : Aluminum Cover : Polycarbonate(PC) |
| RAL code | RAL9003 |
| Product dimensions / weight | 169.7(W)x118.3(H)x214.8(D)mm(6.68x4.66x8.46"), 696g(1.53lb) |
| Conduit hole | 19.1mm(3/4")(M25) ※ Gangbox hole : support single, double, 4" octagon, 4" square |
| Supported products | XND-C6083RV/C7083RV/C8083RV/C9083RV XND-6083RV/8083RV/9083RV XNV-C6083R/C7083R/C8083R/C9083R ※ For further compatible models, please visit our website or use Toolbox ※ Indoor use only |
Name
Description
Size
Downloads
File
Datasheet
1mb
File
Hanwha Techwin America - NDAA Compliant Product List
0.8mb
