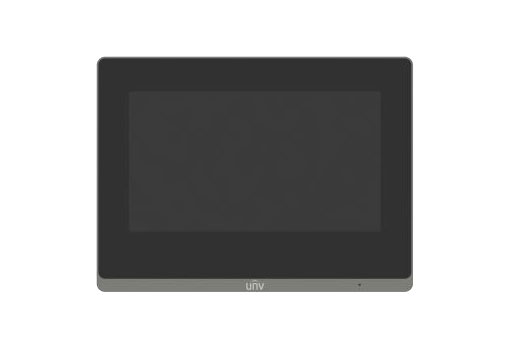

Uniview - OEI-372S-H-W - Wall Mounted 7-inch Indoor Station (Open Wire Installation)
Part number:
OEI-372S-H-W
Price:
Wall Mounted 7-inch Indoor Station (Open Wire Installation)
Features:
- Rugged ABS casing and glass panel.
- 1024*600 HD touch screen.
- Batch configuration transfer.
- Remote opening of linked door stations, one-key opening.
- Network camera monitoring, security alarm.
| Parameter | Description |
| Power | DC12V±25%,IEEE802.3af, Standard PoE |
| Screen resolution | 1024×600 |
| Screen | 7-inch ultra-thin TFT LCD screen |
| Operation system | Linux |
| Audio quality | Noise suppression,echo cancellation and AGC |
| Audio input | 1 built-in omnidirectional microphone |
| Audio output | 1 built-in speaker |
| Audio compression standard | MP3 G711 |
| Audio compression rate | 128Kbps |
| Protocol | UNV private protocol |
| Power consumption | ＜10W |
| Weight | 360g |
| Interface | Power*1, network*1, Wi-Fi*1, RS485*1, IO output*2, IO input*8, TF card slot*1 |
| Network | 100Mbps network port, supports IEEE802.3af PoE power supply |
| Dimensions (L×H×W) | 193mm×143mm×25mm |
| Operating environment | -10°C to +55°C, 10% to 90%, non-condensing, indoor |
