Hanwha - SBP-115PA - Wall and Pole Adaptor
Part number:
SBP-115PA
Price:

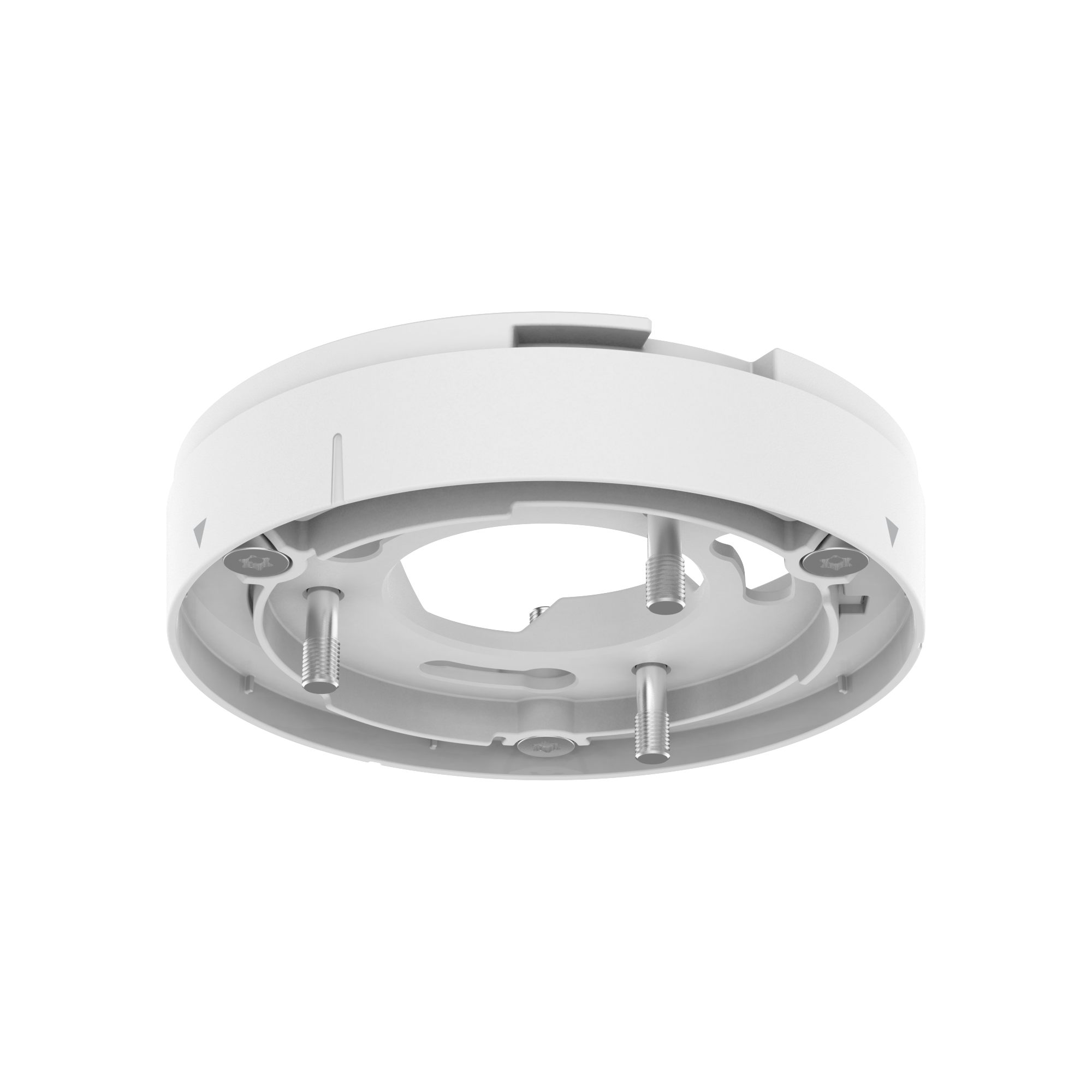

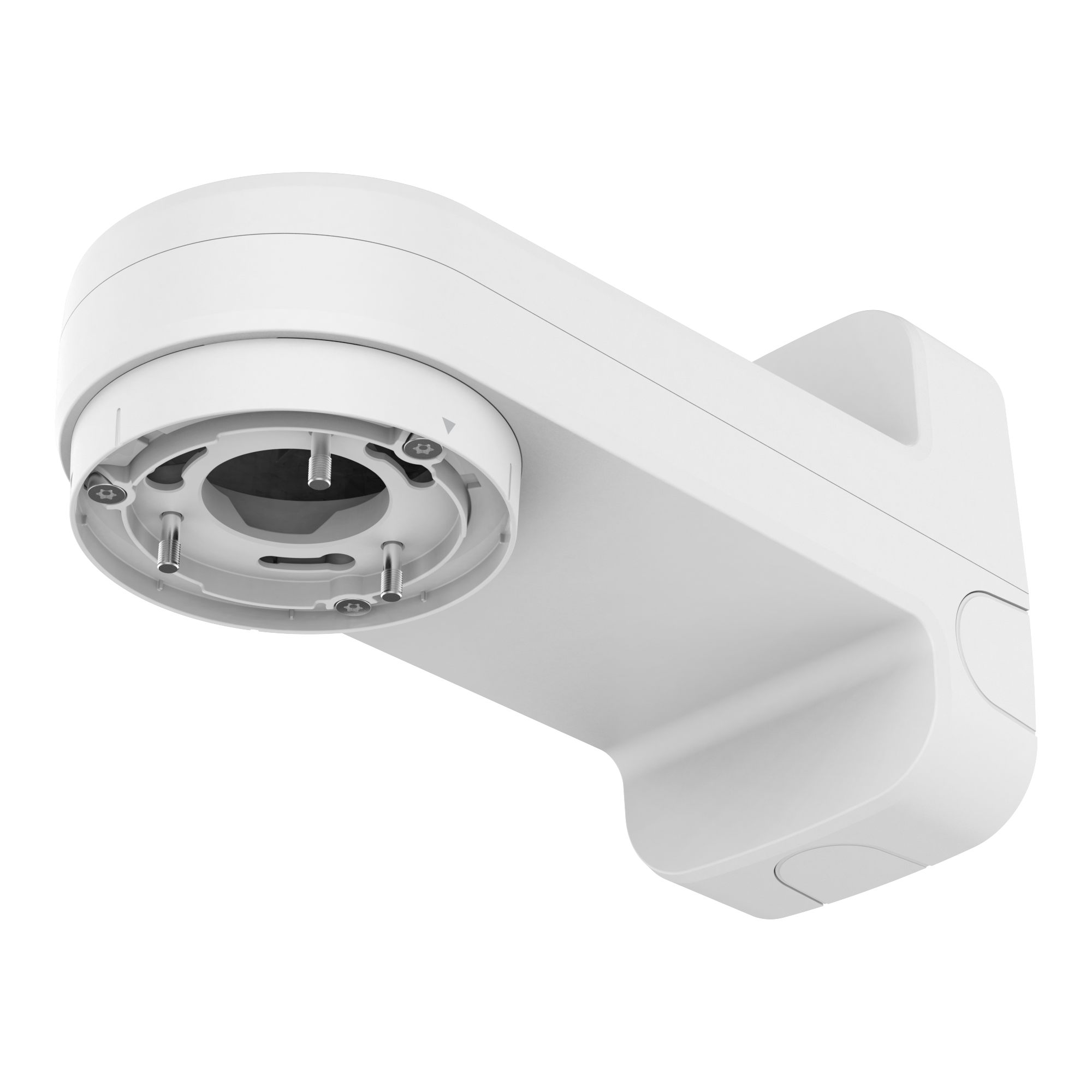

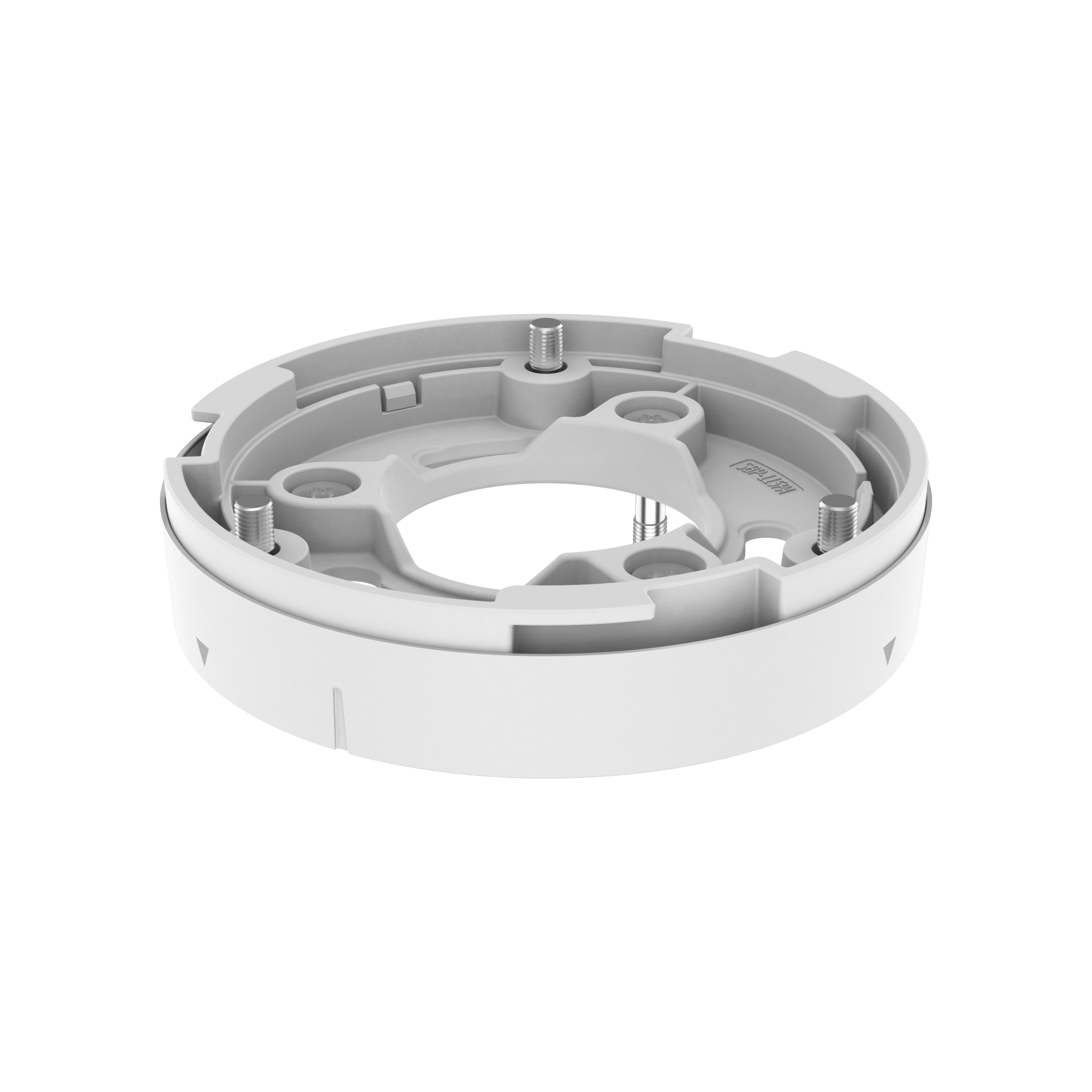

Wall&Pole Mount Adapter Pack of 3 (SBP-250WMW/SBP-400WMW) Compatible with XNP-C7310R/C9310R, XNP-C6403/C8253/C9253, XNP-6400/8250/9250
Features:
• Color : White
• Mount screw size : TR30
• Dimensions : ø125x27.7mm ※ Totally 3pcs included on package
| Specification | |
| Mechanical | |
| Color | White |
| Material | Polycarbonate(PC), Aluminum |
| RAL code | RAL9003 |
| Product dimensions / weight | ø125x27.7mm(ø4.92x1.09") / 242g (0.54lb) |
| Mount Screw size | TR30 |
| Max. load | None Follow maximum load same as assembled mount |
| Supported products | Mount : SBP-250WMW Camera : XNP-C7310R/C9310R, XNP-C6403/C8253/C9253, XNP-6400/8250/9250 ※ For further compatible models, please visit our website or use Toolbox |
