Hanwha - WWT-P-VESA - VESA mount + adapter box for WWT-P and WRT-P Micro form factor
Part number:
WWT-P-VESA
Price:

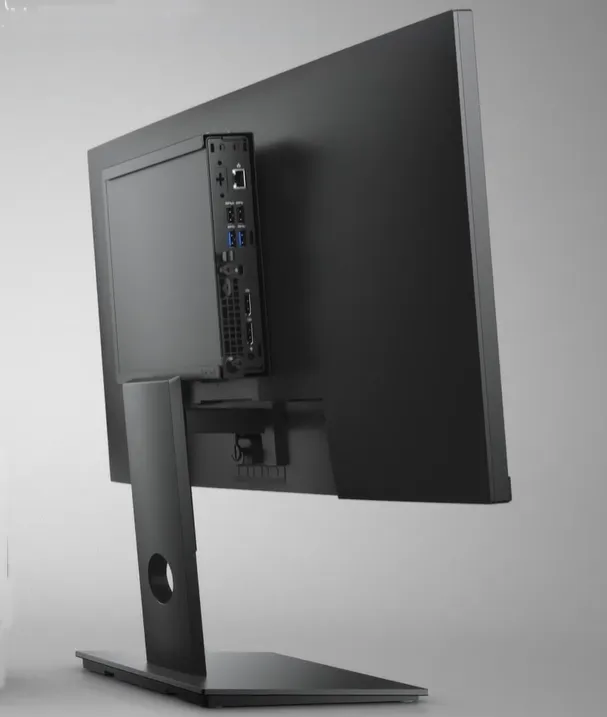

The WWT-P-VESA VESA mount + adapter box for WWT-P and WRT-P Micro form factor servers allows for convenient mounting behind a monitor for areas that have limited space.
Features:
- Preloaded and configured with Wisenet WAVE video management system client & tools
- Includes USB mouse and keyboard
- 5-Year, On-site, Next Business Day, Keep Your Hard Drive Warranty
- Optional VESA mount
| SYSTEM | |
| Video Management Software | Wisenet WAVE |
| Recording Bandwidth | Up to 45Mbps |
| Pre-loaded licenses | 4 x Wisenet WAVE Professional License |
| OS Drive Bay | 1 x 256GB M2.5 SSD OS Drive |
| Data Drive Storage | 1x 2TB SATA for Video Storage |
| Network Interface | 1 x 1GbE RJ45 Ports |
| Processor | 1 x Intel® Core™ i3-10100T 3.0Ghz to 3.8Ghz (4 Cores, 8 Threads, 6MB) |
| Memory | 8GB DDR4 |
| Operating System | Windows 10 IoT Enterprise LTSC |
| Video Outputs | DisplayPort, HDMI |
| USB Ports | Rear: (2) USB 3.1 Gen 1, (2) USB 2.0; Front: (2) USB 3.1 Gen 1 |
| Other Ports | 2x 3.5mm audio headset output/input |
| Keyboard & Mouse | Included |
| MECHANICAL / ELECTRICAL / ENVIRONMENTAL | |
| Mechanical | Form Factor: Micro form factor server Color / Material: Black / Metal & Plastic Dimensions (WxDxH): 1.4” x 7.0” x 7.2” (36mm x 178mm x 182mm) Weight: 3.04 lbs (1.38 kg) |
| Electrical | Power Input: 100 ~ 240V AC Power Consumption: 65W |
| Environmental | Operating Temperature: 41°F ~ 95°F (5°C ~ 35°C) Storage Temperature: -40°F ~ 149°F (-40°C ~ 65°C ) Operating Humidity: 20% to 80% relative humidity (non-condensing) |
| Certification | UL, cUL, CB, FCC |
