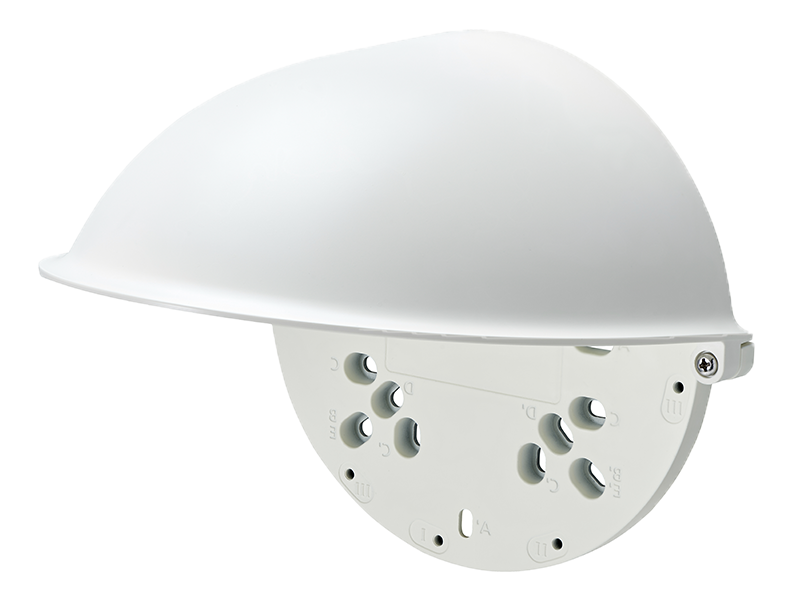

Hanwha - SBV-160WC - Weather cap for the following outdoor domes: PNV-9080R, XND-6085 / 6085V / 6080 / 6080R / 6085 / 6120 / 6120R / 8080R / L6080 / L6080R
Part number:
SBV-160WC
Price:
Weather cap for the following outdoor domes: PNV-9080R, XND-6085 / 6085V / 6080 / 6080R / 6085 / 6120 / 6120R / 8080R / L6080 / L6080R
Features:
- Mounts to many standard boxes for easy installation
- Block rain and snow from falling on camera dome
- Prevent sunlight from shining directly on camera dome
- Mounts to wall or single gang, double gang, 4" octagon , square box
- Hole to pass cable through plate for easy installation
- Note: IR must be turned off in camera settings to prevent IR reflection.
| SBV-160WC | |
| Materials | Cap : PC Plate : Aluminum |
| Operating Temperature | -50°C ~ 60°C (-58°F ~ 140°F) |
| Operating Humidity | 0 ~ 100% |
| Weight | 0.65lb (296g) |
| Color | Ivory |
| Compatible Models | XNV-8080R, XNV-6080, XNV-6080R, XNV-6120R XNV-L6080, XNV-L6080R PNV-9080R SNV-8081R, SNV-8080, SNV-7084, SNV-7084R, SNV-6084, SNV-6084R, SNV-6085R, SNV-5084 SNV-5084R SCV-6081R |
Name
Description
Size
Downloads
File
SBV-160WC Specification
1.3mb
File
Hanwha Techwin America - NDAA Compliant Product List
0.5mb
