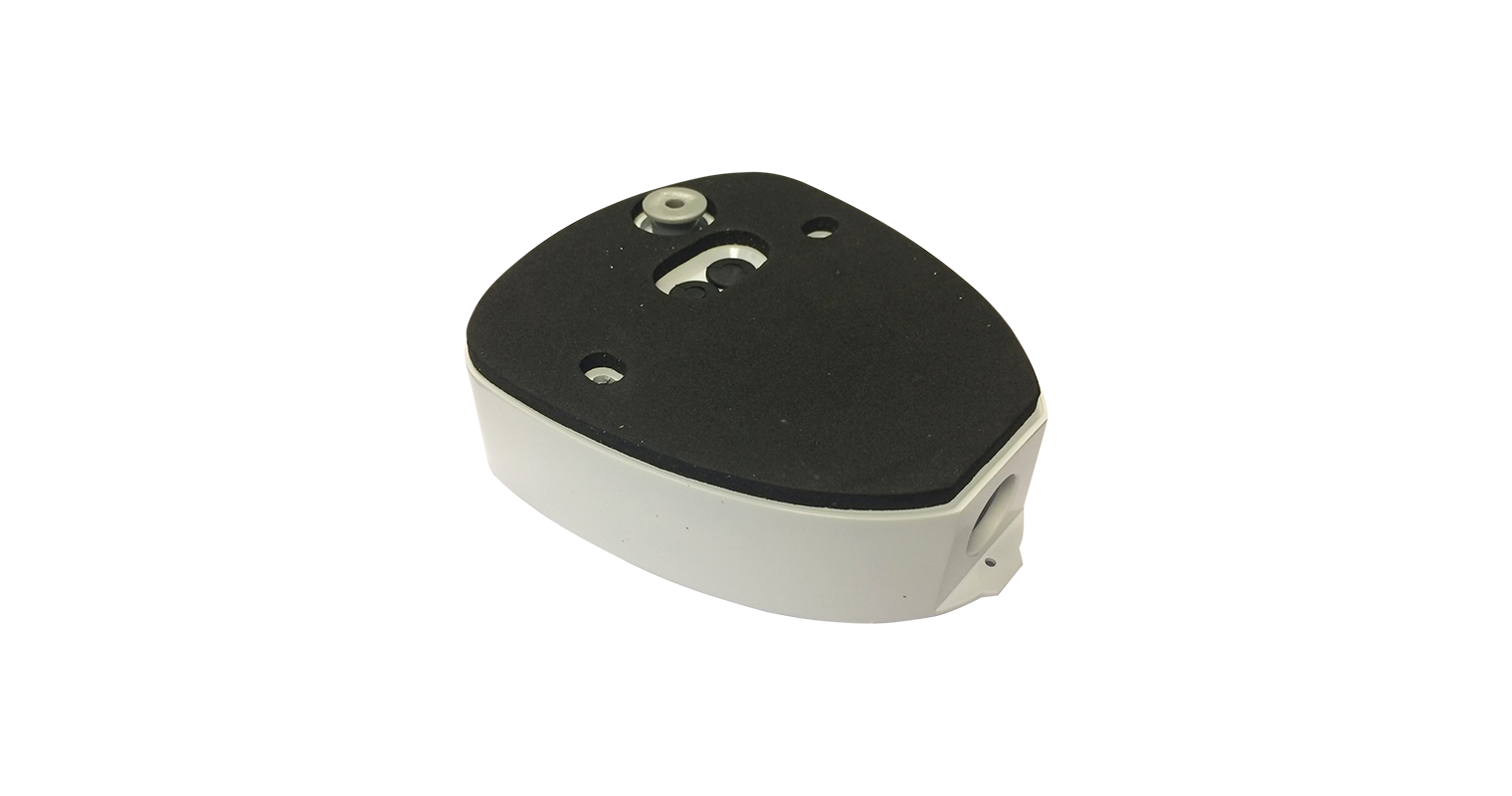

Digital Watchdog - DW-DTCAW - White Conduit Cable Entry Adaptor for SiteWatch Motion Detectors
Part number:
DW-DTCAW
Price:

DW-DTCAW - White conduit cable entry adaptor for SiteWatch motion detectors



For surface mount conduit and cable installations. Complete with integral wall tamper system.



Features:

  • Suitable for 0.78” (20mm) conduit protected surface run cables.
  • Integrated rear tamper mechanism designed to perfectly interface with rear tamper plunger fitted on all SiteWatch detectors.
  • Supplied with body locking screws plus wall fixings.
  • Dimensions: 5.7” x 4.7” x 1.7” (145 x 120mm x 44mm).
  • Weight: 0.99 lbs (0.45 gr).
Specifications
MOUNTING ACCESSORIES
Max load bearingThe mounting surface must bear five times the weight of the camera and bracket
MaterialAlluminium alloy, Zinc Alloy
ColorWhite
Mounting optionsSuitable for 20mm conduit protected surface run cables, Indoor, Outdoor
Warranty1 year warranty
Included accessoriesQSG, Screws and plastic anchors
Accessory Weight1.02 lbs (464g)
Name
Description
Size
Downloads
File
Datasheet
0.8mb
File
Quick Start Guide
0.4mb
