Wi-Tek - SP3006F-BT - Unmanaged Superic Industrial Switch
Product Overview

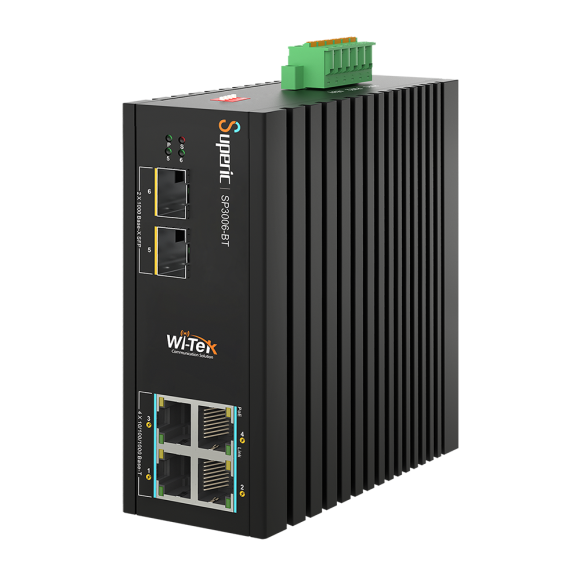

SP3006F-BT is an industrial unmanaged PoE switch with four Gigabit PoE++ RJ-45 ports and two 1000 Mbps SFP uplink ports. It supports IEEE 802.3af/at/bt power delivery up to 90 W per port, redundant DC power input, and reliable operation from -40°C to 75°C for demanding industrial and outdoor networks.
Key Configuration
Model: SP3006F-BT | Capacity: 4 x 10/100/1000 Mbps PoE++ RJ-45 ports, 2 x 1000 Mbps SFP ports | PoE: IEEE 802.3af/at/bt, 90 W per port, 120 W total | Power: Redundant 44-57 V DC inputs | Protection: 6 kV Ethernet and power surge immunity, 8 kV contact and 15 kV air ESD protection
Key Features
- · Provides 4 x 10/100/1000 Base-T PoE++ RJ-45 ports
- · Includes 2 x 1000 Base-X SFP uplink ports
- · Supports IEEE 802.3af/at/bt with up to 90 W per PoE port
- · Provides a total PoE power budget of up to 120 W
- · Supports VLAN mode for isolating downlink ports while maintaining uplink communication
- · Extend mode enables transmission distances up to 250 m at a limited rate of 10 Mbps
- · QoS mode gives ports 1-2 higher data transmission priority
- · PoE Watchdog mode detects and reboots offline compliant PoE devices
- · Offers 12 Gbps switching capacity, 8.9 Mpps forwarding rate, and a 16K MAC address table
- · Supports 6 kV surge immunity and operation from -40°C to 75°C
Technical Context
The PoE++ ports support both mid-span and end-span power delivery, allowing compatible high-power devices to receive network connectivity and up to 90 W of power through the Ethernet cable. VLAN isolation, QoS prioritization, extended-distance transmission, and PoE Watchdog recovery provide practical tools for separating traffic, maintaining video or data priority, reaching remote devices, and restoring unresponsive powered equipment.
Installation Notes

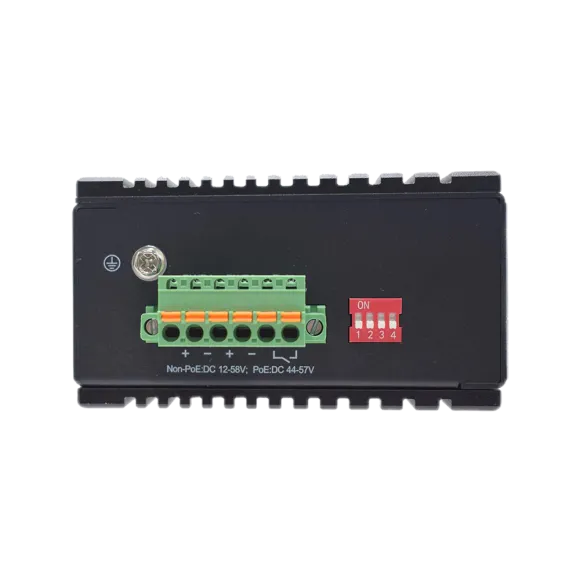

The fanless switch supports desktop or DIN-rail installation and uses redundant 44-57 V DC power inputs. Its dimensions are 145 x 105 x 57 mm, with an operating humidity range of 5%-95% non-condensing and protection against Ethernet and power surges, contact ESD up to 8 kV, and air ESD up to 15 kV.
| General | |
| Model | SP3006F-BT |
| Product Type | Industrial Unmanaged PoE Switch |
| Operating Temperature | -40°C to 75°C |
| Interfaces | |
| Downlink Ports | 4 × 10/100/1000 Mbps RJ45 PoE ports |
| Uplink Ports | 2 × 1000 Mbps SFP ports |
| Relay Interface | Supported |
| PoE | |
| PoE Ports | Ports 1-4 |
| PoE Standard | IEEE 802.3af/at/bt |
| PoE Power Supply Type | Mid-span and End-span |
| PoE Pin Assignment | 1/2(+), 3/6(-), 4/5(+), 7/8(-) |
| PoE Power | 90 W maximum per port 120 W maximum PoE power budget |
| Switch Performance | |
| Forwarding Mode | Store and forward |
| Switching Capacity | 12 Gbps |
| Packet Forwarding Rate | 8.9 Mpps |
| MAC Address Table | 16K |
| Packet Buffer Memory | 2 Mbit |
| Jumbo Frame | 10 kB |
| Standards and Protocols | |
| Supported Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus PSE IEEE 802.3bt Power over Ethernet Type 3 |
| Smart DIP Switch Functions | |
| VLAN Mode | Downlink ports are isolated from each other and can communicate with the uplink ports. |
| Extend Mode | Transmission distance of ports 1-2 can reach up to 250 m. The transmission rate is limited to 10 Mbps. |
| QoS Mode | Ports 1-2 receive high data transmission priority. |
| PoE Watchdog Mode | Automatically detects and reboots offline compliant PoE-powered devices. |
| Power Supply | |
| Input Power | Power 1 (Main): 44-57 V DC Power 2 (Backup): 44-57 V DC |
| Power Consumption | Idle: 6 W |
| Protection | Reverse polarity protection Over-voltage protection Over-current protection |
| LED Indicators | |
| Power Indicator | Green on: Device power is normal Off: Device is powered off or has failed |
| Status Indicator | Off: Total PoE usage is below 50% Red blinking: Total PoE usage is between 50% and 90% Red on: Total PoE usage is above 90% |
| Link Indicators | Off: Port link is down On: Port link is up Blinking: Data transmission |
| PoE Indicators | Off: PoE is not operating On: PoE is operating |
| Fiber Port Indicators | Off: Fiber link is down Green on: Fiber link is up Green blinking: Data transmission |
| Physical Characteristics | |
| Fan Quantity | Fanless |
| Dimensions (W × D × H) | 145 × 105 × 57 mm |
| Package Dimensions | 187 × 151 × 72 mm |
| Net Weight | 0.88 kg |
| Package Weight | 1.00 kg |
| Installation | Desktop, DIN-rail |
| Package Contents | Switch × 1 Quick Installation Guide × 1 |
| Reliability and Environment | |
| Ethernet Port Surge Immunity | IEC 61000-4-5 Common mode: 6 kV Differential mode: 2 kV |
| Power Surge Immunity | IEC 61000-4-5 Common mode: 6 kV Differential mode: 4 kV |
| ESD Protection | IEC 61000-4-2 Contact discharge: 8 kV Air discharge: 15 kV |
| Operating Environment | -40°C to 75°C 5% to 95% relative humidity, non-condensing |
| Storage Environment | -40°C to 85°C 5% to 95% relative humidity, non-condensing |
| Certifications | |
| Certifications | CE, FCC, RoHS, UKCA, RCM |
