Product Overview

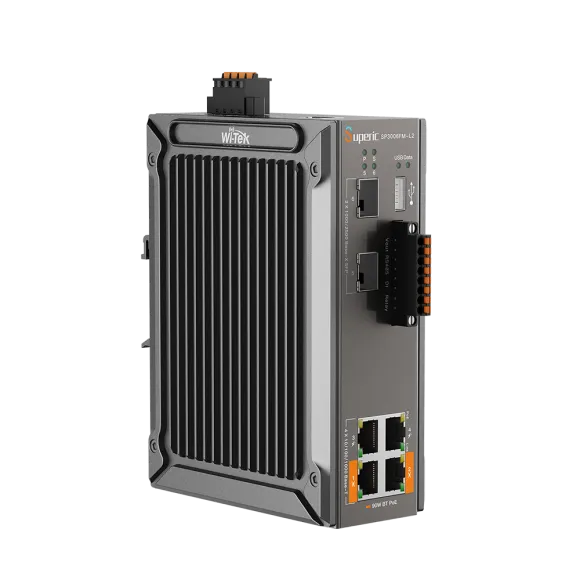

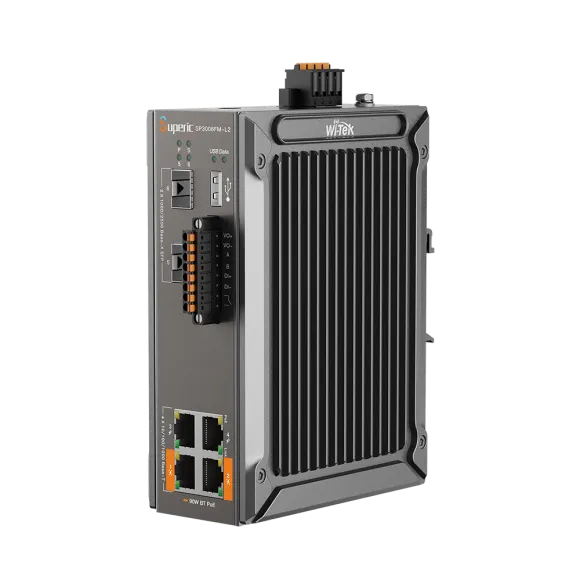

The Wi-Tek SP3006FM-L2 V3 is an industrial L2+ managed PoE switch with four 10/100/1000 Mbps RJ45 ports and two 1000/2500 Mbps SFP uplink slots. It supports mixed-power PoE delivery, redundant 44–57 V DC inputs, advanced Layer 2+ management, environmental monitoring, and industrial protection for CCTV, factory automation, transportation, and outdoor network applications.
Key Configuration
Model: SP3006FM-L2 V3 | Ethernet Ports: 4 × 10/100/1000 Mbps RJ45 PoE ports | Uplink Ports: 2 × 1000/2500 Mbps SFP ports | Management: 1 × console port with Digital IN, relay, USB, and RS485 interfaces | PoE Output: Ports 1–2 up to 90 W each; ports 3–4 up to 30 W each; 120 W total budget | Protection: IP40, -40°C to 75°C, surge, ESD, reverse-polarity, over-voltage, and over-current protection
Key Features
- · Four 10/100/1000 Mbps RJ45 PoE ports provide Gigabit network access
- · Two 1000/2500 Mbps SFP ports support high-speed fiber uplinks
- · Ports 1–2 support IEEE 802.3af/at/bt PoE up to 90 W per port
- · Ports 3–4 support IEEE 802.3af/at PoE up to 30 W per port
- · Provides a maximum PoE power budget of 120 W
- · Offers an 18 Gbps switching capacity and 13.4 Mpps packet-forwarding rate
- · Supports 802.1Q VLAN, QinQ, STP/RSTP/MSTP, G.8032 ERPS, IGMP, QoS, ACL, 802.1X, IPv6, and static routing
- · Digital IN, relay, temperature and humidity detection support localized linkage and environmental monitoring
- · Redundant dual 44–57 V DC power inputs provide an alternative power supply path
- · IP40 metal enclosure, fanless cooling, and -40°C to 75°C operation support harsh industrial environments
Technical Context
The switch combines two higher-power PoE ports with two standard PoE+ ports, allowing the connection of both high-power devices and conventional PoE equipment within a 120 W budget. L2+ functions support network segmentation, loop prevention, multicast handling, traffic prioritization, access control, authentication, and ERPS ring redundancy. Digital input, relay output, and temperature/humidity monitoring can connect network events with external alarms or control equipment.
Installation Notes
The SP3006FM-L2 V3 measures 56 × 115 × 158 mm and supports DIN-rail, wall-mounted, or desktop installation. Use the redundant 44–57 V DC inputs according to the system power design, maintain the operating temperature between -40°C and 75°C, and provide suitable grounding for industrial deployment.
| General | |
| Model | SP3006FM-L2 |
| Hardware Version | V3 |
| Enclosure | IP40 metal case |
| Interfaces | |
| Downlink Ports | 4 × 10/100/1000 Mbps RJ45 ports |
| Uplink Ports | 2 × 1000M/2.5Gbps SFP ports |
| Management Port | 1 × console port |
| PoE | |
| PoE Ports | Ports 1–4 |
| PoE Standard | Ports 1–2: IEEE 802.3af/at/bt Ports 3–4: IEEE 802.3af/at |
| PoE Power Supply Type | Mid-span and End-span |
| PoE Pin Assignment | 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-) |
| PoE Power | 90 W max. for ports 1–2 30 W max. for ports 3–4 120 W max. total PoE power budget |
| Performance | |
| Memory | 512 MB |
| Flash Memory | 512 MB |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 18 Gbps |
| Packet Forwarding Rate | 13.4 Mpps |
| MAC Address Table | 16K |
| Packet Buffer Memory | 2 Mbit |
| Jumbo Frame | 10 KB |
| Power Supply | |
| Input Power | Power 1 (Main): 44–57 V DC Power 2 (Backup): 44–57 V DC |
| Power Consumption | Idle: 8 W 100% traffic rate with PoE: 128 W |
| Network Features | |
| Port Aggregation | 1GbE port aggregation Static aggregation LACP dynamic aggregation Up to 64 aggregation groups and up to 8 ports per group |
| Port Features | IEEE 802.3x flow control Port traffic statistics Broadcast storm control Loop detection Port mirroring MAC-based VLAN IP-based VLAN Protocol-based VLAN GVRP QinQ |
| Spanning Tree and Ring Protocols | IEEE 802.1D STP IEEE 802.1w RSTP IEEE 802.1s MSTP BPDU Guard G.8032 ERPS |
| Routing and DHCP | Static routing DHCP Option 82 DHCP Client DHCP Snooping |
| Multicast | Group Address, IGMP Snooping |
| Security and QoS | |
| ACL | IP Standard ACL, IP Extended ACL, MAC Extended ACL |
| QoS | Layer 2 and Layer 3 QoS 8 priority queues 802.1p CoS/DSCP priority SP strict priority scheduling WRR weighted round-robin scheduling SP + WRR scheduling Ingress/Egress port rate limiting Egress queue rate limiting |
| Security Features | Static MAC address management Dynamic MAC address management MAC address filtering RADIUS/TACACS+ 802.1X port authentication MAC authentication RADIUS authentication ARP message filtering IP Source Guard Port-based IP/MAC binding Port isolation |
| IPv6 Support | Dual IPv4/IPv6 stack, IPv6 DHCP Client, IPv6 Ping, IPv6 Traceroute, IPv6 Telnet, IPv6 SNMP, IPv6 SSH, IPv6 HTTP, IPv6 TFTP, IPv6 RADIUS/TACACS+ |
| Management | |
| Management and Maintenance | Syslog RMON groups 1, 2, 3 and 9 NTP/SNTP (RFC 2030) Ping and Traceroute Optical transceiver DDM TFTP Client TFTP and web-based firmware upgrade Configuration export/import IPv6 management PoE management Relay warning Serial server |
| Industrial Monitoring | Digital input Relay output Temperature and humidity detection |
| LED Indicators | |
| P Indicator | Green on: device power is normal Off: device is powered off or has failed |
| S Indicator | Off: system initialization Blinking: system operating normally |
| Link Indicator | On: port link up Blinking: TX/RX data transmission Off: port link down |
| PoE Indicator | On: PoE working Off: PoE not working |
| Fiber Port Indicators | Off: port link down Green on: port link up Green blinking: TX/RX data transmission |
| Physical Characteristics | |
| Fan Quantity | Fanless |
| Switch Dimensions | 56 × 115 × 158 mm |
| Package Dimensions | 272 × 202 × 94 mm |
| Net Weight | 1.15 kg |
| Package Weight | 1.52 kg |
| Installation | DIN-rail, wall-mounted, desktop |
| Reliability | |
| Ethernet Port Surge Immunity | IEC 61000-4-5 Common mode: 6 kV Differential mode: 2 kV |
| Power Surge Immunity | IEC 61000-4-5 Common mode: 6 kV Differential mode: 4 kV |
| ESD Protection | IEC 61000-4-2 Contact discharge: 8 kV Air discharge: 15 kV |
| Environmental | |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating Humidity | 5%–90% RH, non-condensing |
| Storage Humidity | 5%–95% RH, non-condensing |
| Certifications | |
| Certifications | CE, FCC, RoHS, UKCA, RCM |
