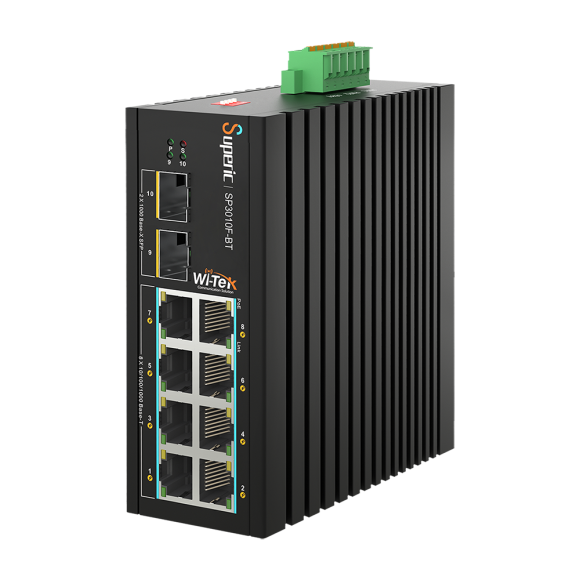

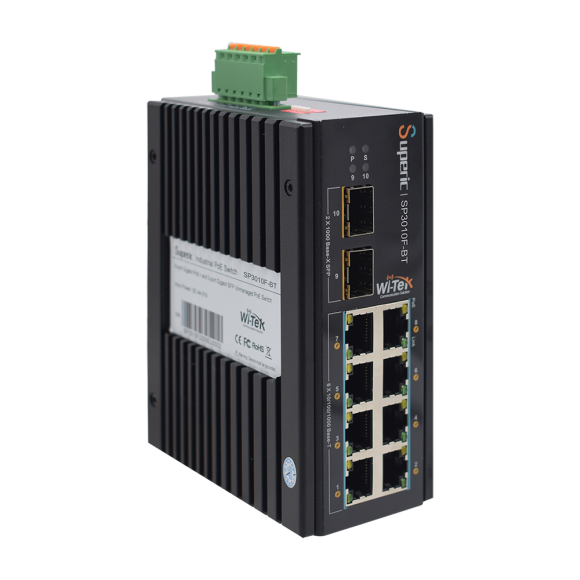

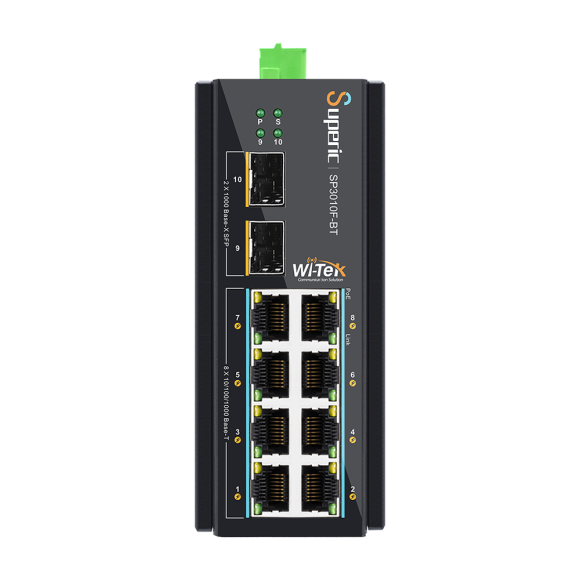

Wi-Tek - SP3010F-BT - Unmanaged Superic Industrial Switch
Product Overview
SP3010F-BT is an industrial unmanaged PoE switch with eight Gigabit Ethernet PoE ports and two 1000 Mbps SFP uplink ports. Ports 1-4 support IEEE 802.3af/at/bt with up to 90 W per port, while ports 5-8 support IEEE 802.3af/at with up to 30 W per port, providing a total PoE budget of 240 W.
Key Configuration
Model: SP3010F-BT | Capacity: 8 x 10/100/1000 Mbps PoE RJ-45 ports, 2 x 1000 Mbps SFP ports | PoE: Ports 1-4 up to 90 W, ports 5-8 up to 30 W, 240 W total | Power: Redundant 44-57 V DC inputs | Protection: 6 kV Ethernet and power surge immunity, 8 kV contact and 15 kV air ESD protection
Key Features
- · Provides 8 x 10/100/1000 Base-T PoE RJ-45 ports
- · Includes 2 x 1000 Base-X SFP uplink ports
- · Supports IEEE 802.3af/at/bt on ports 1-4 with up to 90 W per port
- · Supports IEEE 802.3af/at on ports 5-8 with up to 30 W per port
- · Provides a total PoE power budget of up to 240 W
- · Supports VLAN mode for isolating downlink ports while maintaining uplink communication
- · Extend mode enables transmission distances up to 250 m at a limited rate of 10 Mbps
- · QoS mode gives ports 1-4 higher data transmission priority
- · PoE Watchdog mode detects and reboots offline compliant PoE devices
- · Offers 20 Gbps switching capacity, 14.9 Mpps forwarding rate, and a 16K MAC address table
Technical Context
The switch combines Gigabit copper connectivity with fiber uplinks for industrial network aggregation. Its mixed PoE capability supplies higher-power devices through ports 1-4, while ports 5-8 support standard PoE and PoE+ equipment; VLAN isolation, QoS prioritization, extended-distance transmission, and PoE Watchdog recovery help maintain reliable network and device operation.
Installation Notes
The switch supports desktop or DIN-rail installation and uses redundant 44-57 V DC power inputs. It is designed for operation from -40°C to 75°C with 5%-95% non-condensing humidity, and includes surge protection for Ethernet and power interfaces plus contact and air ESD protection.
| General | |
| Model | SP3010F-BT |
| Product Type | Industrial Unmanaged PoE Switch |
| Operating Temperature | -40°C to 75°C |
| Interfaces | |
| Downlink Ports | 8 × 10/100/1000 Mbps RJ45 PoE ports |
| Uplink Ports | 2 × 1000 Mbps SFP ports |
| Relay Interface | Supported |
| PoE | |
| PoE Ports | Ports 1-8 |
| PoE Standard | Ports 1-4: IEEE 802.3af/at/bt Ports 5-8: IEEE 802.3af/at |
| PoE Power Supply Type | Mid-span and End-span |
| PoE Pin Assignment | 1/2(+), 3/6(-), 4/5(+), 7/8(-) |
| PoE Power | Ports 1-4: 90 W maximum per port Ports 5-8: 30 W maximum per port 240 W maximum PoE power budget |
| Switch Performance | |
| Forwarding Mode | Store and forward |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.9 Mpps |
| MAC Address Table | 16K |
| Packet Buffer Memory | 2 Mbit |
| Jumbo Frame | 10 kB |
| Standards and Protocols | |
| Supported Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus PSE |
| Smart DIP Switch Functions | |
| VLAN Mode | Downlink ports are isolated from each other and can communicate with the uplink ports. |
| Extend Mode | Transmission distance of ports 1-4 can reach up to 250 m. The transmission rate is limited to 10 Mbps. |
| QoS Mode | Ports 1-4 receive high data transmission priority. |
| PoE Watchdog Mode | Automatically detects and reboots offline compliant PoE-powered devices. |
| Power Supply | |
| Input Power | Power 1 (Main): 44-57 V DC Power 2 (Backup): 44-57 V DC |
| Power Consumption | Idle: 10 W |
| Protection | Reverse polarity protection Over-voltage protection Over-current protection |
| LED Indicators | |
| Power Indicator | Green on: Device power is normal Off: Device is powered off or has failed |
| Status Indicator | Off: Total PoE usage is below 50% Red blinking: Total PoE usage is between 50% and 90% Red on: Total PoE usage is above 90% |
| Link Indicators | Off: Port link is down On: Port link is up Blinking: Data transmission |
| PoE Indicators | Off: PoE is not operating On: PoE is operating |
| Fiber Port Indicators | Off: Fiber link is down Green on: Fiber link is up Green blinking: Data transmission |
| Physical Characteristics | |
| Fan Quantity | Fanless |
| Dimensions (W × D × H) | 145 × 105 × 57 mm |
| Package Dimensions | 187 × 151 × 72 mm |
| Net Weight | 0.90 kg |
| Package Weight | 1.01 kg |
| Installation | Desktop, DIN-rail |
| Package Contents | Switch × 1 Quick Installation Guide × 1 |
| Reliability and Environment | |
| Ethernet Port Surge Immunity | IEC 61000-4-5 Common mode: 6 kV Differential mode: 2 kV |
| Power Surge Immunity | IEC 61000-4-5 Common mode: 6 kV Differential mode: 4 kV |
| ESD Protection | IEC 61000-4-2 Contact discharge: 8 kV Air discharge: 15 kV |
| Operating Environment | -40°C to 75°C 5% to 95% relative humidity, non-condensing |
| Storage Environment | -40°C to 85°C 5% to 95% relative humidity, non-condensing |
| Certifications | |
| Certifications | CE, FCC, RoHS, UKCA, RCM |
