Wi-Tek - SP3010FM-L2 V3 - L2 Managed Superic Industrial Switch

Product Overview

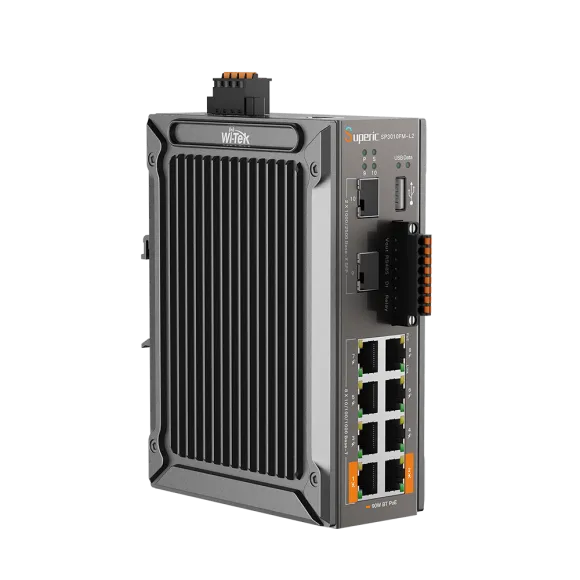

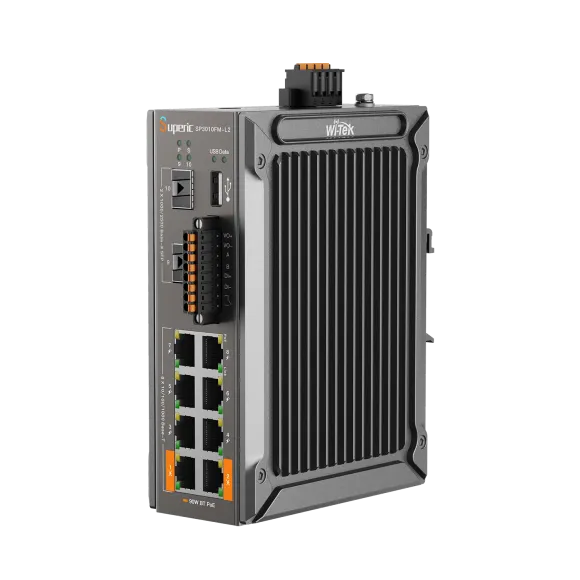

The Wi-Tek SP3010FM-L2 V3 is an industrial L2+ managed PoE switch with eight 10/100/1000 Mbps RJ45 ports and two 1000/2500 Mbps SFP uplink ports. It supports mixed-power PoE delivery with up to 90 W on ports 1–2, a 240 W total PoE budget, redundant 44–57 V DC inputs, advanced network management, and reliable operation in harsh industrial environments.

Key Configuration

Model: SP3010FM-L2 V3 | Ethernet Ports: 8 × 10/100/1000 Mbps RJ45 PoE ports | Uplink Ports: 2 × 1000/2500 Mbps SFP ports | Management: 1 × console port with Digital IN, relay, USB, and RS485 interfaces | PoE Output: Ports 1–2 up to 90 W each; ports 3–8 up to 30 W each; 240 W total budget | Protection: IP40, -40°C to 75°C, surge, ESD, reverse-polarity, over-voltage, and over-current protection

Key Features

• · Eight 10/100/1000 Mbps RJ45 ports provide Gigabit Ethernet connectivity
• · Two 1000/2500 Mbps SFP ports support high-speed fiber uplinks
• · Includes a console port with Digital IN, relay, USB, and RS485 interfaces
• · Ports 1–2 support IEEE 802.3af/at/bt PoE up to 90 W per port
• · Ports 3–8 support IEEE 802.3af/at PoE up to 30 W per port
• · Provides a maximum PoE power budget of 240 W
• · Offers a 26 Gbps switching capacity and 19.3 Mpps packet-forwarding rate
• · Supports VLAN, QinQ, STP/RSTP/MSTP, ERPS, IGMP, QoS, ACL, 802.1X, IPv6, static routing, and DHCP functions
• · Digital input, relay output, and temperature and humidity detection support localized industrial monitoring
• · Redundant 44–57 V DC power inputs, IP40 enclosure, fanless cooling, and -40°C to 75°C operation support harsh environments

Technical Context

The switch combines two high-power PoE ports with six standard PoE+ ports, allowing high-power devices and conventional PoE equipment to operate within a 240 W budget. L2+ management functions support traffic segmentation, loop prevention, multicast handling, quality of service, authentication, access control, IPv6 networking, and ERPS ring redundancy. Digital input, relay output, and environmental detection can connect network events with external alarms or control equipment.

Installation Notes

The SP3010FM-L2 V3 measures 56 × 115 × 158 mm and supports DIN-rail, wall-mounted, or desktop installation. Use the redundant 44–57 V DC inputs according to the system power design, provide suitable grounding, and keep the operating temperature between -40°C and 75°C.
