Product Overview

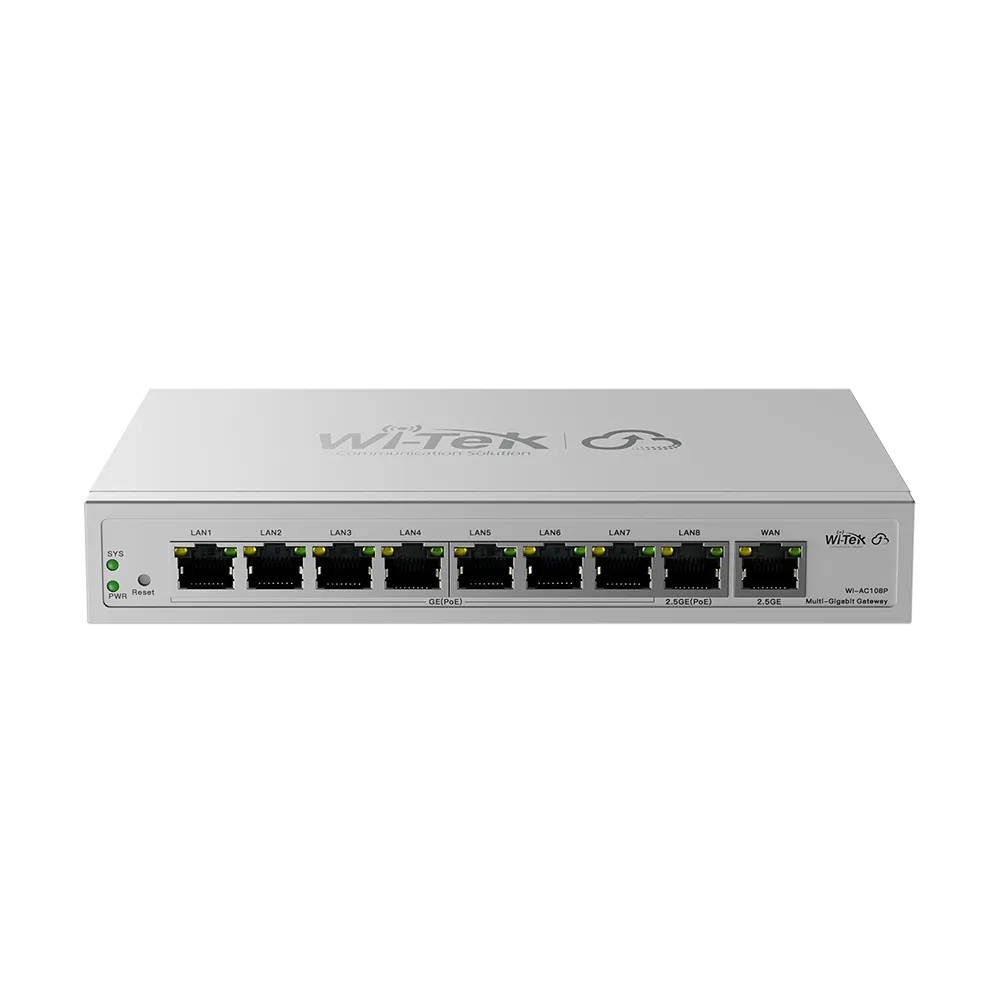

The Wi-Tek Multi-WAN Gigabit PoE VPN Gateway is designed for network deployments that require routing, PoE device powering, VPN connectivity, and centralized access point management in one platform. It provides two 2.5G ports, seven Gigabit ports, eight PoE output ports with 802.3af/at support, Multi-WAN load balancing, SD-LAN support, and cloud management.
Key Configuration
Product Type: Multi-WAN Gigabit PoE VPN Gateway | Ports: 2 x 2.5G + 7 x Gigabit | WAN/LAN: 1 x WAN + 8 x LAN | PoE Output: 8-port PoE out | PoE Standard: IEEE 802.3af/at | WAN Features: Multi-WAN load balance | VPN Support: PPTP, L2TP, IPsec, OpenVPN | Network Features: SD-LAN | Management: Centralized AP management, cloud management
Key Features
· Combines gateway routing, PoE output, VPN support, and AP management in one device
· Provides two 2.5G ports for higher-speed network connectivity
· Includes seven Gigabit ports for wired LAN and WAN connections
· Supports 1 WAN and 8 LAN network configuration
· Offers eight PoE output ports for powering connected PoE devices
· PoE ports support IEEE 802.3af/at standards
· Multi-WAN load balancing helps distribute traffic across available WAN links
· Centralized AP management simplifies wireless access point administration
· Supports PPTP, L2TP, IPsec, and OpenVPN for VPN connectivity
· SD-LAN support enables flexible software-defined LAN deployment
· Cloud management supports remote configuration and maintenance
Technical Context
This gateway is intended for small to medium network environments where internet routing, PoE access, and VPN connectivity need to be managed from a single device. The combination of 2.5G and Gigabit ports supports both higher-speed uplink needs and standard wired device connections.
With Multi-WAN load balancing, cloud management, SD-LAN support, and centralized AP management, the gateway can help simplify distributed network operation and reduce the number of separate devices required for routing, wireless control, and PoE-powered endpoints.
Installation Notes
This PoE VPN gateway is suitable for network edge deployments requiring WAN load balancing, PoE device power, VPN access, and centralized AP management. Confirm WAN/LAN port assignment, PoE power requirements, and VPN protocol needs before installation.
| Model | WI-AC108P |
| Hardware Version | V2 |
| Hardware Features | |
| Interface | 7 × 10/100/1000Mbps PoE+ RJ45 LAN Ports 1 × 2.5Gbps PoE+ RJ45 LAN Port 1 × 2.5Gbps RJ45 WAN Port |
| Memory | RAM: 512MB Flash: 128MB |
| AP Unified Configuration Recommended | 64 APs |
| Bandwidth | Dynamic IP: Upload: 2250 Mbps, Download: 2250 Mbps Static IP: Upload: 2250 Mbps, Download: 2250 Mbps PPPoE: Upload: 2250 Mbps, Download: 2250 Mbps |
| Power Supply | DC 54V/1.77A |
| Power Consumption (max) | 96W (With PoE load) |
| Max. PoE Power Budget | 88W |
| Max. PoE Output Per Port | 802.3at |
| Software Features | |
| Routing | Network Access PPPoE Dial-up DHCP Client Static IP Static Routing Policy-based Routing Carrier Address Routing Active/Standby Mode Load Balancing Based on Source Address Flow-based Load Balancing Port-based Weighted load balancing of data streams |
| Flow Control | Support Custom Flow Control Policies IP-based Automatic Bandwidth Assignment |
| Traffic Audit | Real-time traffic audit IP Traffic Visualization |
| Authentication | Captive Portal: One Key Auth Pre-Shared Password Local User Auth Voucher, SMS Auth RADIUS Auth |
| Behavior Management | Time-based and IP policy-based access control Website Filtering |
| VPN | OpenVPN PPTP L2TP IPsec |
| Application Recognition | Support WAN Load Balancing Supports the ONVIF Protocol Support 802.1Q VLAN TAG Support SD-LAN |
| Security | ACL DHCP Static Assignment MAC Address Filtering Dynamic ARP Static ARP Binding |
| NAT | Port Mapping |
| Other Protocols | DHCP Server DHCP Client DHCP Option43/138 DNS Server DDNS |
| Management | Support Local Management with Web Support Remote Management with Wi-Tek Cloud |
| AP Management | Support Auto AP Discovery RF Optimization Batch Configuration Overview View Multi-SSID Configuration SSID Hiding Channel Setting Tx power Setting AP Online Upgrade STA blacklist and whitelist |
| Others | |
| Product Dimensions | 190 × 97 × 30mm |
| Product Weight | 1.05kg |
| Package Weight | 1.7kg |
| Environment | |
| Operating Temperature | -20℃ ~ 55℃ (-4℉ ~ 131℉) |
| Storage Temperature | -40°C ~ 70°C (-40℉ ~ 158℉) |
| Operating Humidity | 5% ~ 95% (non-condensing) |
| Storage Humidity | 5% ~ 95% (non-condensing) |
| Certification | |
| Certification | CE, FCC, RoHS, UKCA, RCM |
