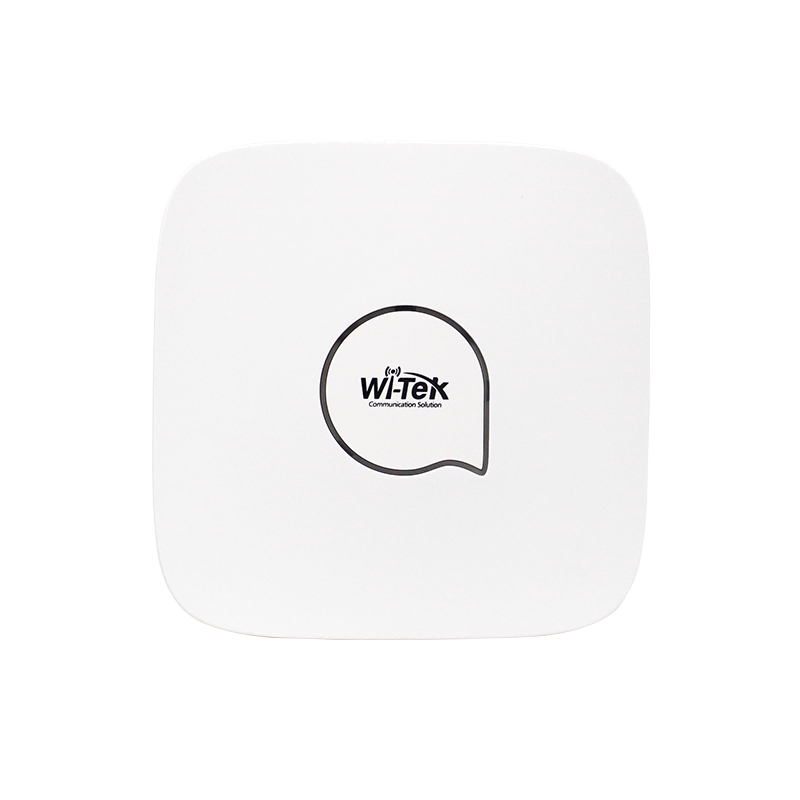

WI-AP218AX-Lite is a high-performance Wi-Fi 6 AP for indoor large-area Wi-Fi coverage scenarios. The device supports 802.3af PoE and a 12V DC local power supply. The dual LAN ports design facilitates the expansion of network devices to meet the needs of more networking scenarios. Compliant with 802.11a/b/g/n/ac/ax Wi-Fi protocol, WI-AP218AX-Lite supports MU-MIMO dual-stream technology and offers built-in omnidirectional antennas. It can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of 574Mbps at 2.4GHz, 1201Mbps at 5GHz, and up to 1775Mbps per AP. It has long-range coverage, making it ideal for many wireless scenarios,, especially in offices, shopping malls, hotels, service scenarios, etc.
Features:
| Model | WI-AP218AX-Lite |
| Hardware Specifications | |
| Wireless Standards | IEEE 802.11ax/ac wave2/wave1/n/b/g/a |
| Operating Bands | 2.4GHz & 5GHz |
| Antenna | 2.4GHz:4.6dBi, 5GHz: 4dBi |
| Spatial Steams | 2.4GHz: 2x2 MIMO 5GHz: 2x2 MIMO |
| Signal Rate | Up to 574Mbps at 2.4GHz |
| Up to 1201Mbps at 5GHz | |
| Receiver Sensitivity | 2.4GHz |
| 802.11b: -85dBm@11M -92dBm@1M | |
| 802.11g: -72dBm@54M -90dBm@6M | |
| 802.11n HT20: -70dBm@MCS7 -88dBm@MCS0 | |
| 802.11n HT40: -68dBm@MCS7 -86dBm@MCS0 | |
| 802.11ax HT20:-60dBm@MCS11 -85dBm@MCS0 | |
| 802.11ax HT40: -56dBm@MCS11 -85dBm@MCS0 | |
| 5GHz: | |
| 802.11a: -72dBm@54M -92dBm@6M | |
| 802.11n HT20: -70dBm@MCS7 -90dBm@MCS0 | |
| 802.11n HT40: -68dBm@MCS7 -88dBm@MCS0 | |
| 802.11ac HT20: -70dBm@MCS7 -90dBm@MCS0 | |
| 802.11ac HT40: -68dBm@MCS7 -88dBm@MCS0 | |
| 802.11ac HT80: -58dBm@MCS9 -85dBm@MCS0 | |
| 802.11ax HT20: -62dBm@MCS11 -88dBm@MCS0 | |
| 802.11ax HT40: -58dBm@MCS11 -86dBm@MCS0 | |
| 802.11ax HT80: -55dBm@MCS11 -84dBm@MCS0 | |
| Maximum Transmit Power | ≤22dbm |

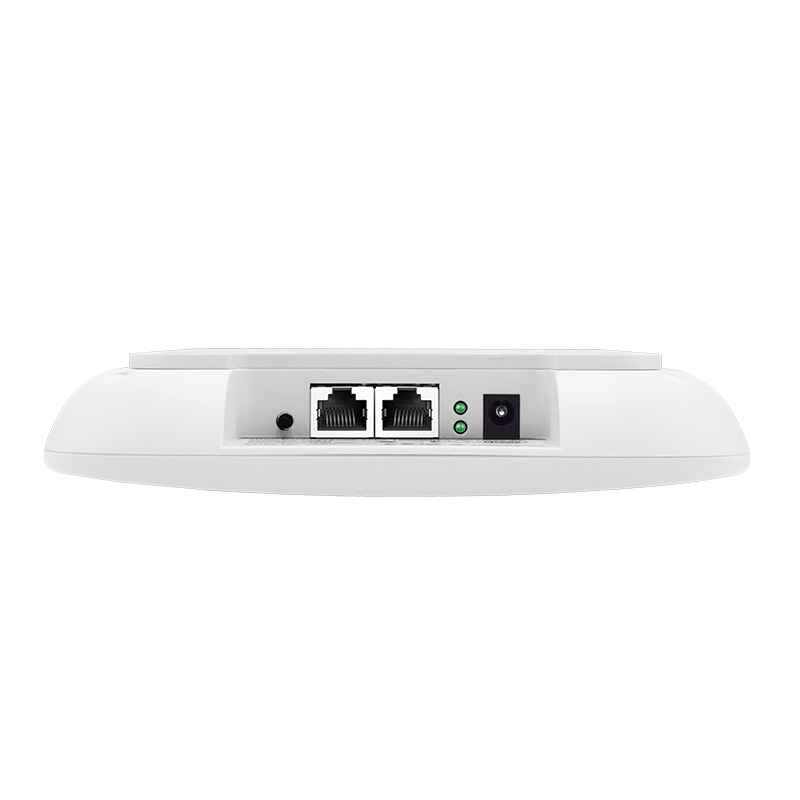

| Interface | (2)10/100/1000M Base-T Ethernet ports |
| Power Supply | DC 12V/1.5A (Not Included) |
| 802.3af PoE Supported | |
| Power Consumption | < 15W |
| Installation | Wall/Ceiling mounting |
| External Buttons | reset button (long press for 8 seconds to restore the factory default configuration) |
| Dimensions | 188mm * 188mm * 35mm |
| Environment | Operating Temperature: -40°C~55°C |
| Storage Temperature: -40°C~70°C | |
| Operating Humidity: 5% ~ 95% (non-condensing) | |
| Storage Humidity: 5% ~ 95% (non-condensing) | |
| Software Features | |
| Operating Mode | Fit AP, Fat AP |
| Wireless Functions | Up to 16 SSIDs |
| Support SSID hiding, enable/disable wireless radio | |
| Manual and automatic channel assignment | |
| Manual and automatic bandwidth assignment | |
| TxPower control | |
| Roaming | Support Layer 2 roaming |
| Wireless Security | Captive portal authentication |
| Static blacklist and whitelist | |
| Wireless isolation between clients | |
| SSID to VLAN mapping | |
| Support 802.1X | |
| WPA/WPA2/PSK/WPA/WPA2-Enterprise/WPA3 | |
| Internet Connection Type | Support static IP, DHCP, PPPoE Dial Up |
| Management | Support local management with web |
| Support centralized management with AC | |
| Support remote management with Wi-Tek cloud platform | |
| Platform Management | Automatic RF adjustment via the platform |
| Features | Unified configuration via the platform |
| Unified monitoring via the platform | |
