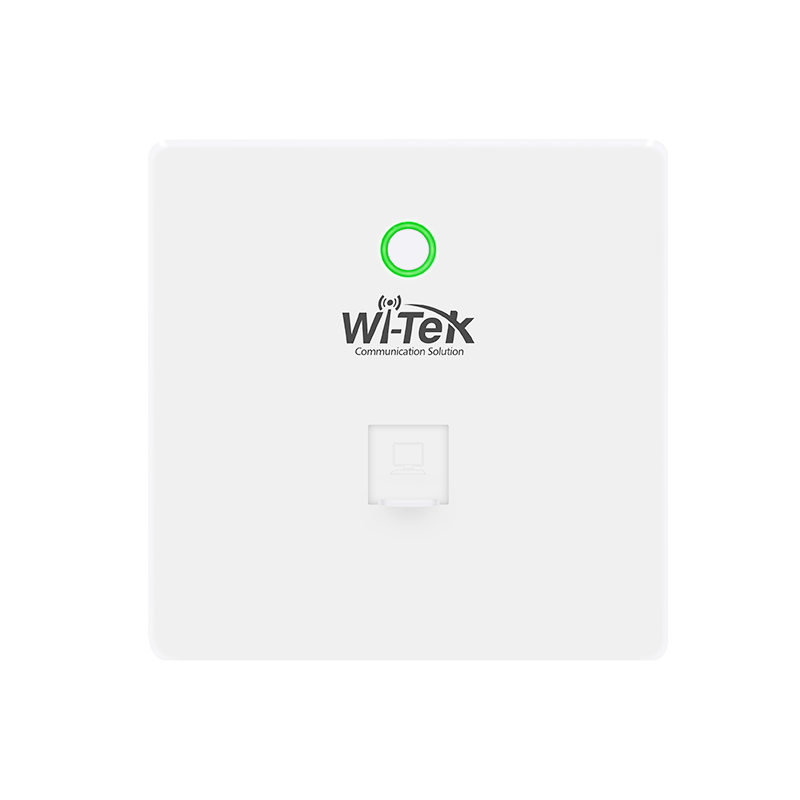

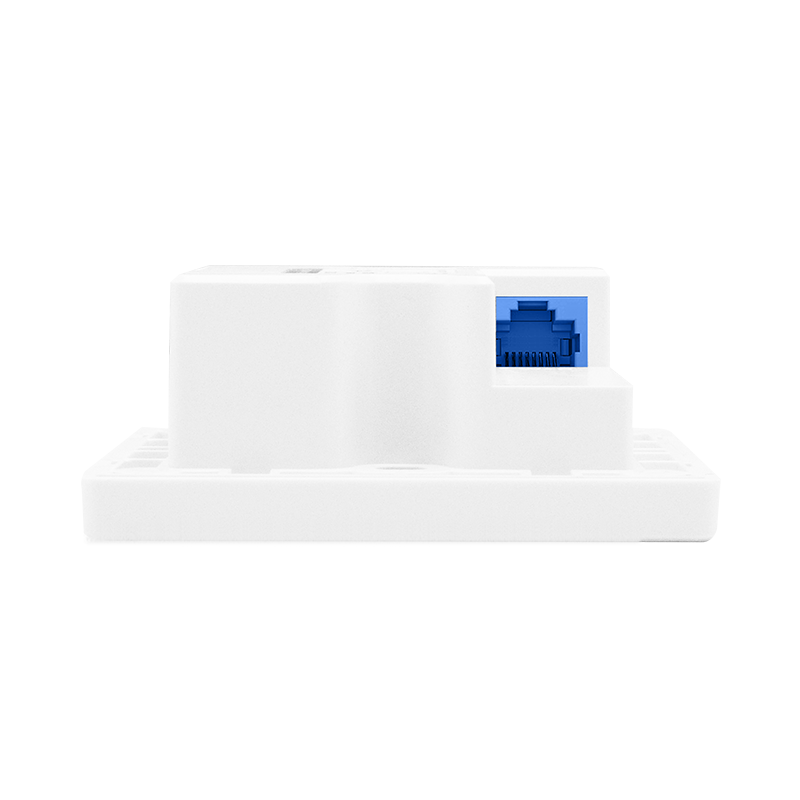

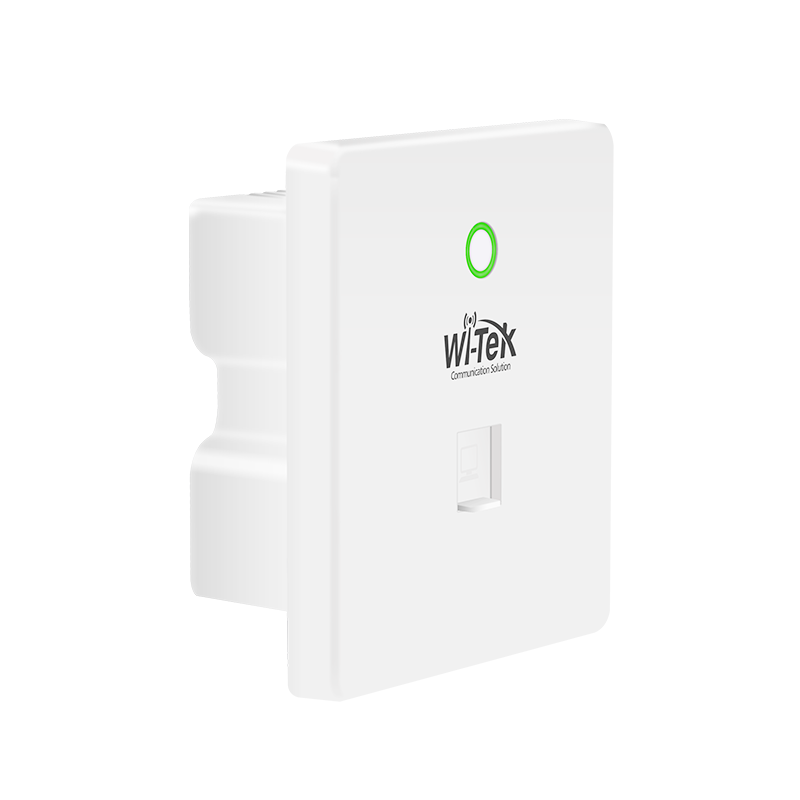

The Wi-Tek Dual-Band In-Wall AP is a wall panel AP. Support 802.3af PoE, AP built-in LAN port, easily expand IP phone, etc., can work at 2.4GHz and 5GHz at the same time, provide 2.4GHz 300Mbps, 5GHz 443Mbps, up to 743Mbps high-speed wireless access to AP. The compact and sophisticated 86mm wall mount design can be easily installed directly into a standard 86mm wall mount junction box, ideal for office, hotel and service scenario deployments. In addition, the wireless in-wall AP also supports cloud management functions. Users can quickly complete network- wide device deployment, configuration, remote management, and operation and maintenance, greatly reducing equipment costs, labor costs, and time costs for wireless network construction.
| Products | WI-AP415 |
| Hardware specifications | |
| Wireless Standards | 802.11ac wave1 802.11n/b/g/a |
| Operating Bands | 2.4GHz & 5GHz |
| Antenna | 2.4Ghz:2dBi, 5GHz: 2dBi |
| Spatial Streams | 2.4GHz: 2x2 MIMO 5GHz: 1x1 MIMO |
| Signal Rate | Up to 300Mbps at 2.4GHz Up to 450Mbps at 5GHz |
| Receiver Sensitivity | 2.4GHz 802.11b: -85dBm@11Mbps -94dBm@1Mbps 802.11g: -72dBm@54Mbps -90dBm@6Mbps 802.11n Ht20: -70dBm@MCS7 -88dBm@MCS0 802.11n Ht40: -68dBmMCS7 -86dBm@MCS0 5GHz 802.11a: -74dBm@54Mbps -90dBm@6Mbps 802.11n HT20: -72dBm@MCS7 -88dBm@MCS0 802.11n HT40: -68dBm@MCS7 -85dBm@MCS0 802.11ac HT80: -58dBm@MCS9 -80dBm@MCS0 |
| Maximum Transmit Power | <20dbm |
| Interface | (2)10/100M Base-T Ethernet ports |
| Power Supply | 802.3af PoE Supported |
| Power Consumption | < 6W |
| Installation | Wall Mounting |
| External buttons | reset button (long press for 8 seconds to restore the factory default configuration) |
| Dimensions | 86mm * 86mm * 35mm |
| Environment | Operating Temperature: -20℃~55℃ Storage Temperature: -40℃~70℃ Operating Humidity: 5%~95% (non-condensing) Storage Humidity: 5%~95% (non-condensing) |
| Software Features | |
| Operating Mode | Fit AP, Fat AP, Repeater, WISP mode |
| Wireless Function | Up to 16 SSIDs |
| Support SSID hiding, Enable/Disable Wireless Radio | |
| RF Parameter setting | |
| Roaming | Support Layer 2 roaming |
| Wireless Security | Captive Portal Authentication Static blacklist and whitelist Wireless Isolation Between Clients SSID to VLAN Mapping Support 802.1X WPA/WPA2/PSK/WPA/WPA2-Enterprise |
| Routing | Support static IP, DHCP, PPPoE Dial-Up |
| Management | Support local management with web Support remote management with Wi-Tek Cloud platform |
| Platform Management Features | Automatic RF adjustment via the platform Unified configuration via the platform Unified monitoring via the platform |
