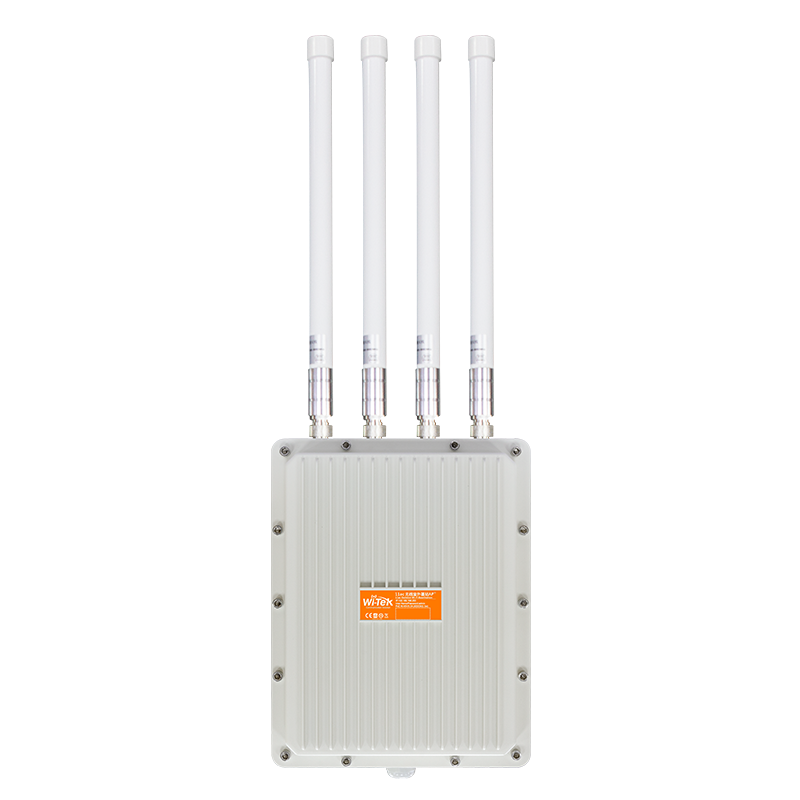

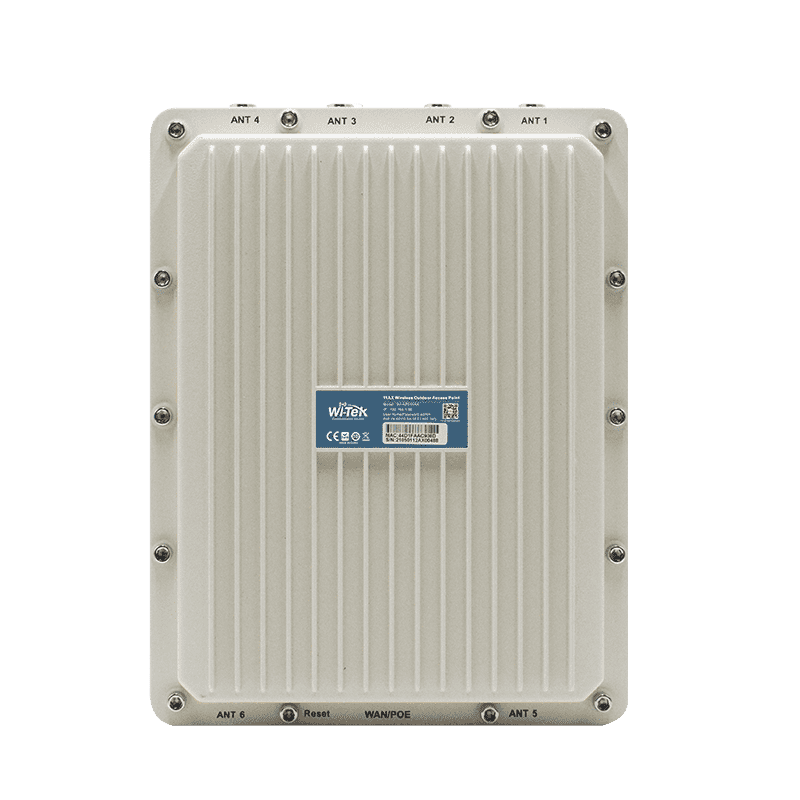

Wi-Tek outdoor AP supports 802.3at PoE power supply, no external power supply is required. Compatible with 802.11a/b/g/n/ac/ax Wi-Fi protocols, 802.11ax adopts OFDMA, 1024QAM, MU-MIMO, and other key technologies to support faster speed and more user access. Through the cloud management function, users can quickly deploy, configure, remotely manage and operate networkwide devices, which greatly reduces labor costs and time costs during wireless network construction. The AP enclosure is designed with an IP67 rating for outdoor environments and is immune to extreme conditions, is an ideal choice for many outdoor wireless scenarios, especially in rural areas, squares.
Features:
Technical Specs
Wireless Standards | IEEE 802.11ax/ac wave2/wave1/n/b/g/a |
Operating Bands | 2.4GHz & 5GHz |

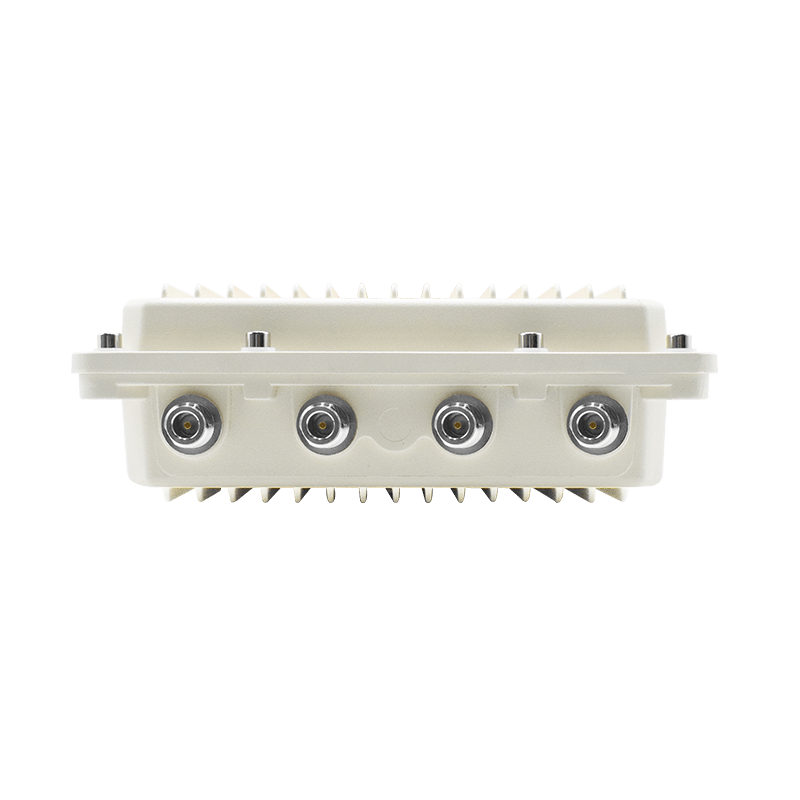

Antenna | external Type-N antennas 2.4Ghz:3dBi, 5GHz: 3dBi |
Signal Rate | Up to 1148Mbps at 2.4GHz Up to 2402Mbps at 5GHz |
Maximum Transmit Power | <20dbm |

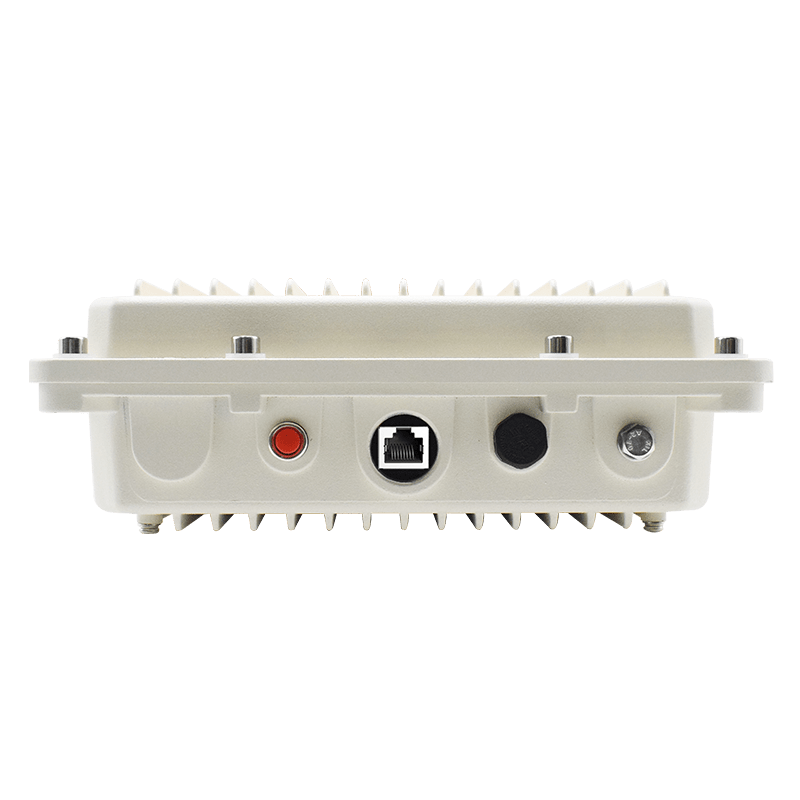

Interface | (2)10/100/1000M Base-T Ethernet ports |
Power Supply | 802.3at PoE Supported |
Power Consumption | <22W |
Installation | Wall Mounting |
External Buttons | reset button (long press for 8 seconds to restore the factory default co nfiguration) |
Dimensions | 295.1mm * 231.1mm * 80mm |
Environment | Operating Temperature:-20℃~55℃ Storage Temperature: Storage Temperature: -40°C~70 °C(non-condensing) Humidity:5% ~95% (non-condensing) |
