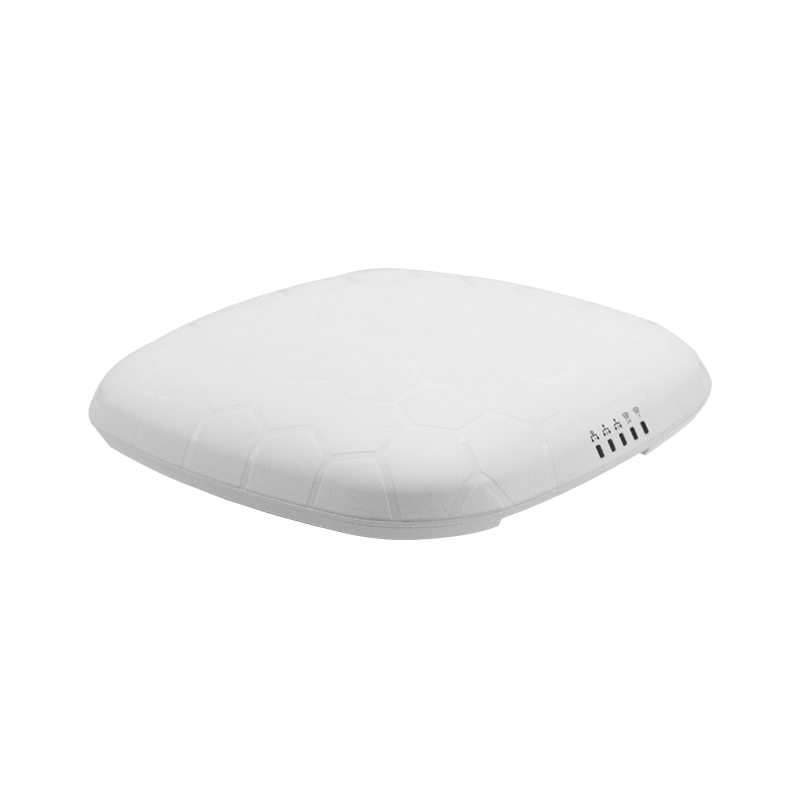

Wi-Tek - WI-AP717MP - 802.11AC 2.4G&5.8G 1200M Indoor Wireless Mesh AP
Part number:
WI-AP717MP
Price:
WI-AP717MP Dual-Band AC1200M WiFi Mesh AP is designed to cover your home or small shops, villas, etc in seamless WiFi coverage. provides ample coverage for up to a 1,500 square foot home. For larger homes, simply add a Mesh node to the system for expanded WiFi coverage. It also offers 3 10/100/1000Mbps RJ45 ports, with up to 2 PoE Out ports powering IP Cameras, without running more cabling and achieves more flexible network applications without requiring an external power adapter.
Feature:
- 1200Mbps Wireless Ceiling Mount Mesh Access Point

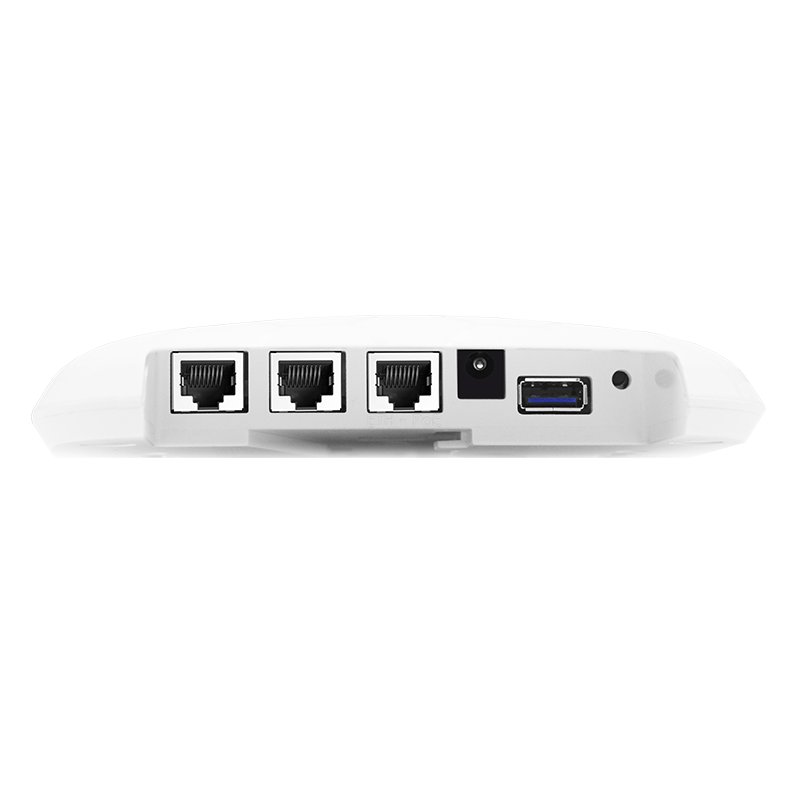

- 3 Gigabit Ethernet PoE ports
- 300Mbps at 2.4GHz + 867Mbps at 5GHz
- Easy Mesh Connect design for big area Wireless Coverage
- Support fast roaming technology
- Support 2 PoE Output for IPC when Port 1 PoE Input 48-52V
- Support cloud management
| Products | WI-AP717MP |
| Hardware Version | |
| Wireless Standards | IEEE 802.11 ac/n/b/g/a |
| Operating Bands | 2.4GHz & 5GHz |
| Spatial Streams | 2.4GHz: 2x2 MIMO 5GHz: 2x2 MIMO |
| Signal Rate | Up to 300 Mbps at 2.4GHz Up to 867 Mbps at 5GHz |
| Interface | (3)10/100/1000M Base-T LAN Ethernet ports |
| Power Supply | 802.3af/at PoE Supported; DC 12V-48V (Not Included) |
| PoE Port | 1*PoE In+2 PoE Out |
| Buttons | reset button (long press for 8 seconds to restore the factory default configuration) |
| Dimensions | 153mm * 147mm * 29mm |
| Environment | Operating Temperature: -10℃~55℃ Storage Temperature: -40℃~70℃ Operating Humidity: 5%~95% (non-condensing) Storage Humidity: 5%~95% (non-condensing) |
| Software Features | |
| Operating Mode | Router Mode and AP Mode |
| Internet Connection Type | Static IP, DHCP, PPPoE Dial-Up |
| Network Security | Guest Wi-Fi Hide SSID Wi-Fi Isolate |
| Parental Control; IP/MAC binding | |
| Wireless Security: WPA-PSK/WPA2-PSK/WPA3-SAE | |
| Advanced Features | Mesh: Supports zero-configuration networking of multiple devices, and supports automatic switching between wired and wireless networking for multiple devices. |
| Wi-Fi optimization: Wi-Fi roaming, channel adjustment, power adjustment | |
| Firewall: Forbid TCP/UDP flood attack | |
| Application: Port Forwarding; SD-LAN; OpenVPN; | |
| Software upgrade: Firmware upgrade online or Firmware upgradeable via browser | |
| Diagnostics Utilities: Ping; IPV4 Traceroute; Nslookup | |
| Management and Maintenance | Support local management with web Support remote management with Wi-Tek Cloud platform |
