Wi-Tek - WI-AP718M V2 -

Product Overview

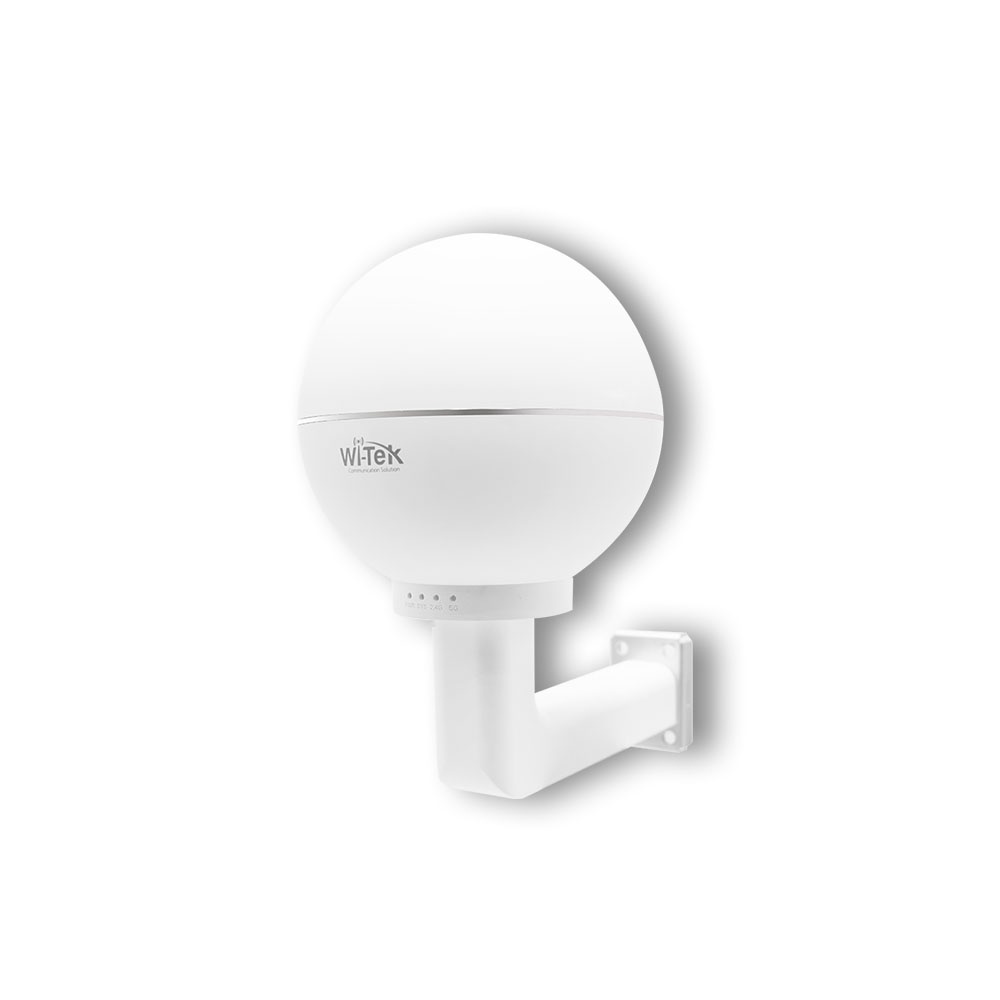

The Wi-Tek WI-AP718M(V2) is a 1200Mbps dual-band outdoor wireless access point designed for weatherproof Wi-Fi coverage in outdoor and distributed network environments. It supports 2.4GHz and 5GHz wireless operation, EasyMesh technology, fast roaming, SD-LAN, and both cloud and web management for flexible deployment and remote administration.

Key Configuration

Model: WI-AP718M(V2) | Product Type: Outdoor Weatherproof Wireless Access Point | Wireless Speed: 1200Mbps | Wireless Bands: 2.4GHz + 5GHz | Ethernet Port: 1 x Gigabit Ethernet PoE port | PoE Input: IEEE 802.3af | Mesh Support: EasyMesh | Network Features: SD-LAN, Fast Roaming | Protection Rating: IP65 | Management: Cloud and Web Management

Key Features

 · Provides 1200Mbps dual-band outdoor wireless coverage

 · Supports both 2.4GHz and 5GHz Wi-Fi operation

 · Includes one Gigabit Ethernet PoE port for network and power connectivity

 · Supports IEEE 802.3af PoE input for simplified installation

 · EasyMesh technology supports standards-based mesh networking

 · Fast roaming technology helps maintain smoother wireless client handoff

 · SD-LAN support enables flexible software-defined LAN deployment

 · IP65 weatherproof enclosure supports outdoor installation

 · Cloud management enables remote monitoring and configuration

 · Web management supports local configuration and administration

Technical Context

The WI-AP718M(V2) is intended for outdoor wireless networks where dual-band coverage, mesh expansion, and centralized management are required. Its Gigabit PoE port allows data and power to be delivered over a single Ethernet cable when connected to a compatible 802.3af PoE source.

EasyMesh support allows mesh networking with devices that support the EasyMesh standard, while SD-LAN, fast roaming, cloud management, and web management help simplify deployment across distributed wireless environments.

Installation Notes

The WI-AP718M(V2) does not include a PoE injector, so a compatible PoE injector or PoE switch must be purchased separately if PoE power is not already available. The WI-AP718M(V2) is not compatible with WI-AP718M(V1) for mesh networking; EasyMesh networking should only be used with devices that support the EasyMesh standard.
