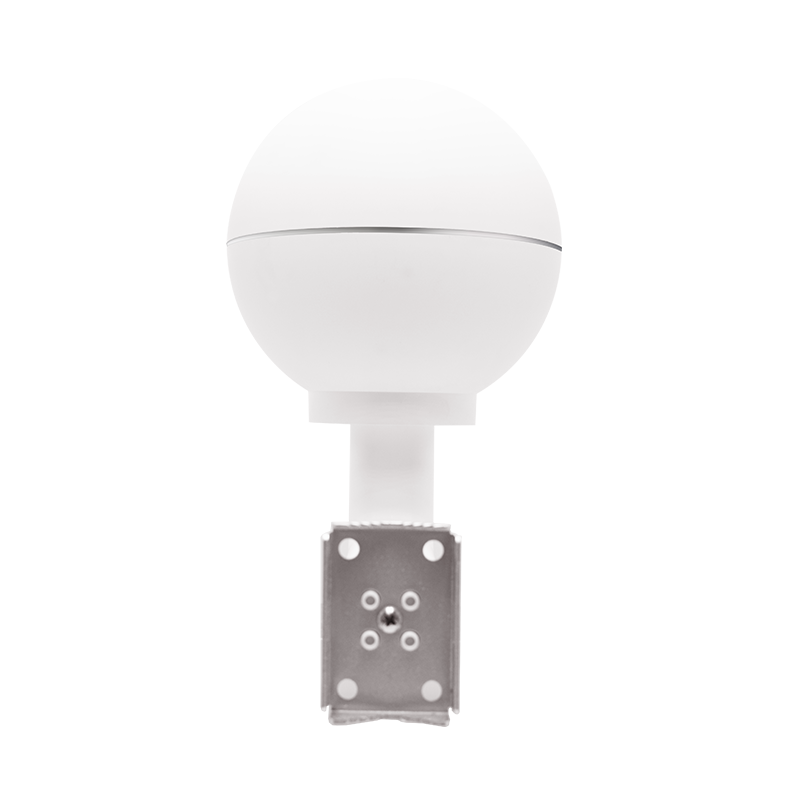

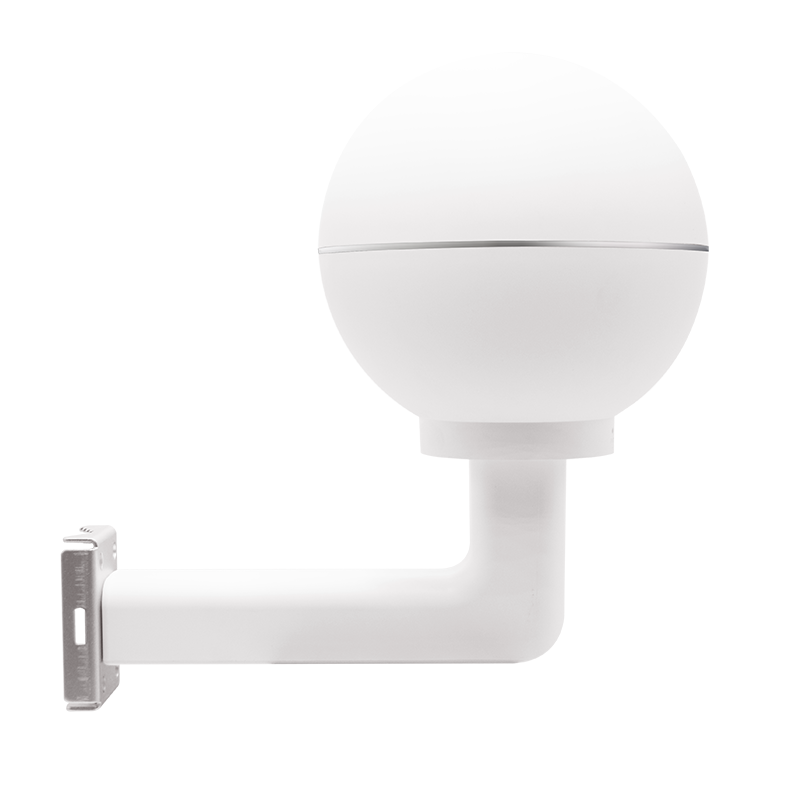

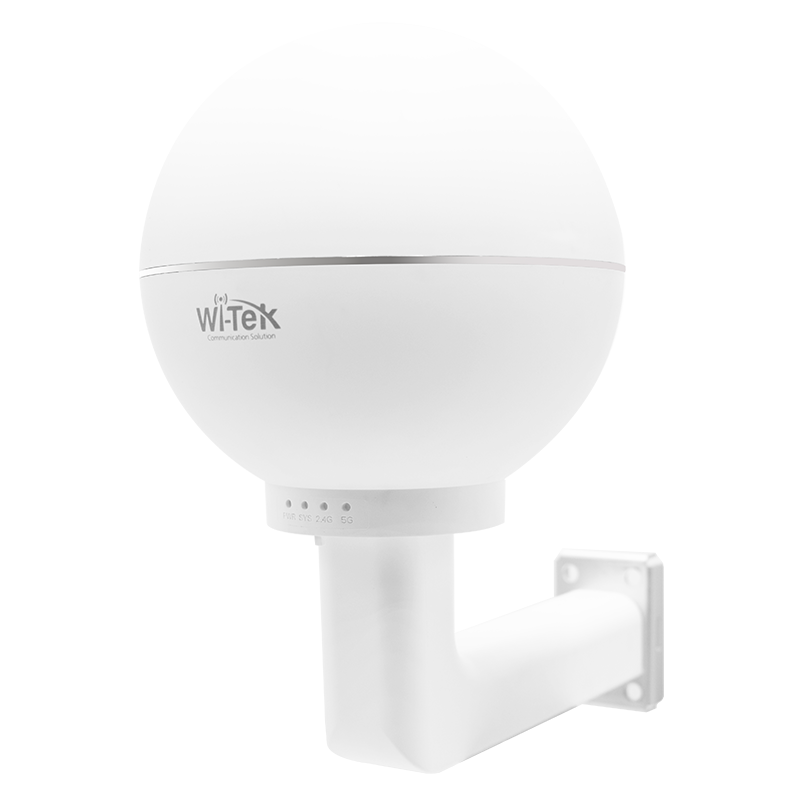

WI-AP718M is a Gigabit dual-band wireless mesh AP, designed for small offices, large flats, villas, small shops, and other SOHO scenarios. It comes with a Wi-Fi standard 802.11ac Wave2, boosts up to 1167Mbps, integrates mesh technology, and eliminates the configuration difficulty of multi-device networking. Additionally, it comes with MU-MIMO technology and beamforming technology, so it can connect more client terminals, provide faster wireless speed and more stable connection, and improve terminal internet performance and user internet experience.
Features:
- 1200Mbps Wireless Ceiling Mount Mesh Access Point
- 1 Gigabit Ethernet PoE ports
- 300Mbps at 2.4GHz + 867Mbps at 5GHz
- Support fast roaming technology
- IP65 weatherproof
- Support cloud and Web management
| Model | WI-AP718M |
Hardware Specifications
| |
| Wireless Standards | IEEE 802.11 ac/n/b/g/a
|
| Operating Bands | 2.4GHz & 5GHz
|
| Spatial Streams | 2.4GHz: 2x2 MIMO 5GHz: 2x2 MIMO |
| Antenna | 2.4GHz: 5dBi, 5GHz: 5dBi |
| Signal Rate | Up to 300 Mbps at 2.4GHz Up to 867 Mbps at 5GHz
|
| Maximum Transmit Power | 2.4GHz: ≤24dbm 5GHz: ≤26dbm
|
| Maximum Power Consumption | < 13W
|
| Interface | (1)10/100/1000M Base-T LAN Ethernet ports
|
| Power Supply | 802.3af/at PoE Supported
|
| Weatherproof Enclosure | IP65 |
| ESD Protection | 6KV |
| Mounting | Pole Mounting (Kits included) |
| Buttons | reset button (long press for 8 seconds to restore the factory default configuration)
|
| Dimensions | 160mm * 170mm
|
| Environment | Operating Temperature: -40°C～60°C Storage Temperature: -40°C～70°C Operating Humidity: 5% ～ 95% (non-condensing) Storage Humidity: 5% ～ 95% (non-condensing)
|
Software Features
| |
Operating Mode
| Router Mode and AP Mode
|
Internet Connection Type
| Static IP, DHCP, PPPoE Dial-Up
|
| Network Security | Guest Wi-Fi； Hide SSID； Wi-Fi Isolate
|
| Parental Control; IP/MAC binding | |
| Wireless Security: WPA-PSK/WPA2-PSK/WPA3-SAE | |
| Advanced Features | Mesh: Supports zero-configuration networking of multiple devices, and supports automatic switching between wired and wireless networking for multiple devices.
|
Wi-Fi optimization: Wi-Fi roaming, channel adjustment, power adjustment
| |
Firewall: Forbid TCP/UDP flood attack
| |
Application: Port Forwarding; SD-LAN; Open VPN;
| |
Software upgrade: Firmware upgrade online or Firmware upgradeable via browser
| |
| Diagnostics Utilities: Ping; IPV4 Traceroute; Nslookup | |
Management and Maintenance
| Support local management with web Support remote management with the Wi-Tek Cloud platform |
