Product Overview

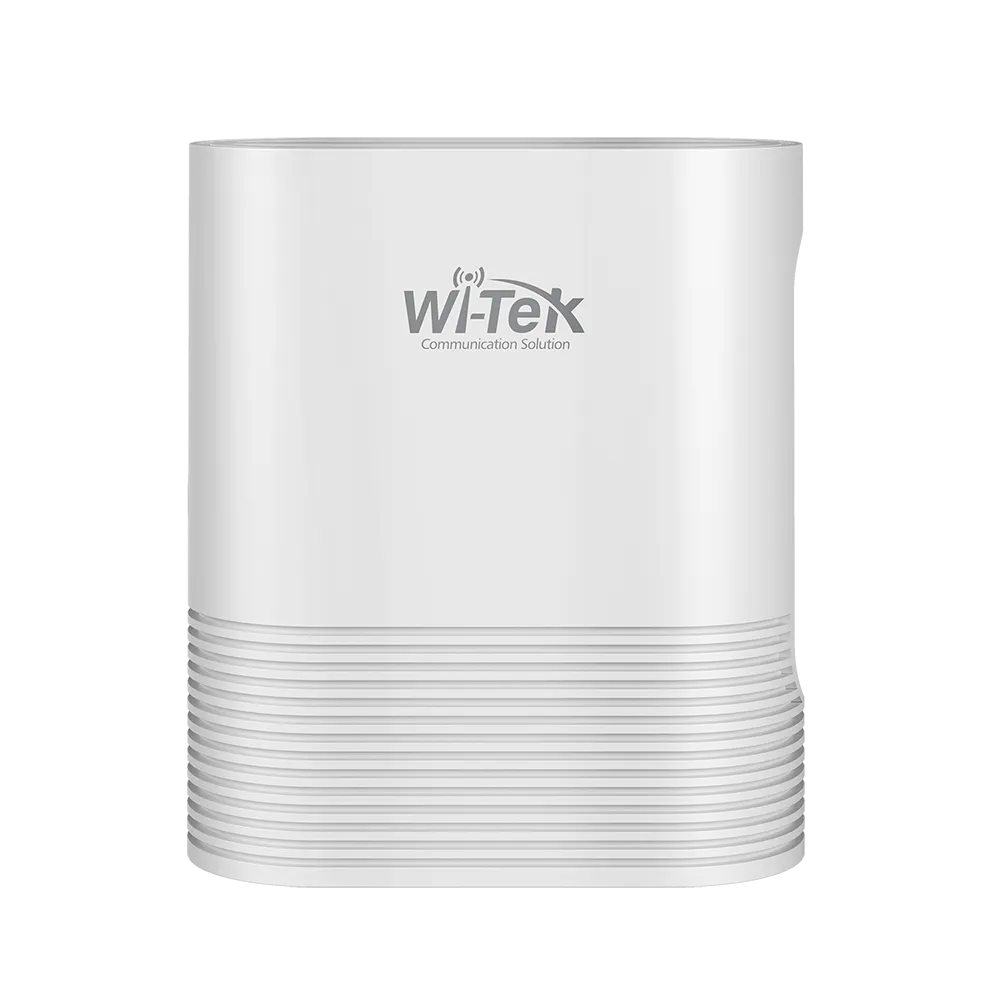

The Wi-Tek WI-AX3000M is a Wi-Fi 6 AX3000 indoor mesh Wi-Fi device designed for large wireless coverage, high-speed dual-band connectivity, and cloud-managed network deployment. It supports 574Mbps at 2.4GHz, 2402Mbps at 5GHz, EasyMesh technology, SD-LAN, ONVIF camera detection, MU-MIMO, OFDMA, 160MHz channel width, and 1024-QAM.
Key Configuration
Model: WI-AX3000M | Product Type: Wi-Fi 6 AX3000 Indoor Mesh Wi-Fi | Wireless Speed: 574Mbps at 2.4GHz + 2402Mbps at 5GHz | Ethernet Ports: 4 x Gigabit | Port Configuration: 1 x WAN, 1 x WAN/LAN, 2 x LAN | WAN Feature: Dual WAN bandwidth aggregation | Mesh Support: EasyMesh | Camera Detection: ONVIF | Network Features: SD-LAN, MU-MIMO, OFDMA, 160MHz channel width, 1024-QAM | Management: Cloud Web and Cloud App
Key Features
· Wi-Fi 6 AX3000 indoor mesh Wi-Fi for large wireless coverage
· Supports 574Mbps wireless speed at 2.4GHz
· Supports 2402Mbps wireless speed at 5GHz
· Provides four Gigabit Ethernet ports
· Port layout includes one WAN, one WAN/LAN, and two LAN ports
· Dual WAN ports enable bandwidth aggregation
· EasyMesh technology supports scalable mesh wireless coverage
· ONVIF camera detection helps identify connected surveillance devices
· SD-LAN technology supports easy cross-region networking
· MU-MIMO and OFDMA help keep multiple simultaneous clients online
· 160MHz channel width supports higher wireless bandwidth
· 1024-QAM increases wireless data rate capability
· Cloud Web and Cloud App management support remote configuration and maintenance
Technical Context
The WI-AX3000M is intended for indoor Wi-Fi 6 deployments where high wireless capacity, mesh expansion, and remote management are required. Dual-band AX3000 performance, 160MHz channel width, MU-MIMO, OFDMA, and 1024-QAM help support dense client environments and high-throughput applications.
EasyMesh support allows mesh networking with devices that follow the EasyMesh standard, while SD-LAN and cloud management help simplify multi-site or cross-region network operation.
Installation Notes
Plan placement for strong indoor mesh coverage and confirm WAN/LAN port assignments before deployment. EasyMesh devices can be networked only with devices that support the EasyMesh standard.
| Model | WI-AX3000M |
| Hardware Version | V1 |
| Hardware Features | |
| Memory | RAM: 512MB Flash: 128MB |
| Interface | 1 × 10/100/1000Mbps RJ45 WAN Port 1 × 10/100/1000Mbps RJ45 LAN/WAN Port 2 × 10/100/1000Mbps RJ45 LAN Ports 1 × Reset Button (long press for 8 seconds to restore the factory default configuration) |
| Power Supply | DC 12V/1A |
| Max. Power Consumption | 7W |
| Wireless Features | |
| Standards | IEEE 802.11a/b/g/n/ac/ax |
| Data Rates | 2.4GHz: up to 574Mbps 5GHz: up to 2402Mbps |
| MIMO | 2.4GHz: 2x2 MIMO 5GHz: 2x2 MIMO |
| Antenna | 2.4GHz: 5dBi 5GHz: 5dBi |
| Frequency | 2.4GHz ~ 2.484 GHz 5.150GHz ~ 5.825GHz *Please follow national regulations to select the appropriate frequency. |
| Channel Width | 2.4GHz: 20/40MHz 5GHz: 20/40/80/160MHz |
| Max. TX Power | 2.4GHz: 20dBm 5GHz: 20dBm |
| Receiver Sensitivity | 2.4GHz: 802.11b: -119±1.5dBm @1Mbps, -90±1.5dBm @11Mbps 802.11g: -96±1.5dBm @6Mbps, -78±1.5dBm @54Mbps 802.11n 20MHz: -96±1.5dBm @MCS0, -76±1.5dBm @MCS7 802.11n 40MHz: -92±1.5dBm @MCS0, -74±1.5dBm @MCS7 802.11ax 20MHz: -96±1.5dBm @MCS0, -66±1.5dBm @MCS11 802.11ax 40MHz: -94±1.5dBm @MCS0, -63±1.5dBm @MCS11 5GHz: 802.11a: -94±1.5dBm @6Mbps, -78±1.5dBm @54Mbps 802.11n 20MHz: -94±1.5dBm @MCS0, -74±1.5dBm @MCS7 802.11n 40MHz: -90±1.5dBm @MCS0, -72±1.5dBm @MCS7 802.11ac 20MHz: -94±1.5dBm @MCS0, -72±1.5dBm @MCS8 802.11ac 40MHz: -90±1.5dBm @MCS0, -66±1.5dBm @MCS9 802.11ac 80MHz: -88±1.5dBm @MCS0, -62±1.5dBm @MCS9 802.11ax 20MHz: -94±1.5dBm @MCS0, -64±1.5dBm @MCS11 802.11ax 40MHz: -92±1.5dBm @MCS0, -60±1.5dBm @MCS11 802.11ax 80MHz: -88±1.5dBm @MCS0, -58±1.5dBm @MCS11 802.11ax 160MHz: -84±1.5dBm @MCS0, -56±1.5dBm @MCS11 |
| Software Features | |
| Operating Mode | Router Mode (Default), AP Mode |
| WAN Type | Dynamic IP, Static IP, PPPoE |
| Protocols | IPv4, IPv6 |
| DHCP | DHCP Server, DHCP Pool, DHCP, DHCP Lease, DNS Server, Host List |
| Routing | Routing Table, ARP Table Dual-WAN Aggregation Supported |
| Wireless | Enable/disable SSID Hide SSID Wi-Fi Isolate Multiple SSID Wireless Statistics Wi-Fi Schedule Wi-Fi Multimedia (WMM) |
| Radio | Region Adjustment Channel Adjustment Bandwidth Adjustment Tx Power Adjustment Weak Signal Threshold Setting |
| Wireless Security | WPA-PSK (TKIP), WPA2-PSK (TKIP, CCMP), WPA2-PSK (CCMP), WPA2/WPA3-PSK (CCMP, SAE), WPA3-PSK (SAE), WPA-Enterprise, WPA2-Enterprise |
| Mesh | EasyMesh |
| Port Forwarding | Port Mapping, DMZ, UPnP |
| Access Control | Source/Destination IP Based Access Control, Wireless Blacklist/Whitelist |
| Advanced Applications | SD-LAN ONVIF Detection |
| System | Scheduled Reboot Ping Watchdog Diagnostics: Ping, Traceroute Restore & Backup Firmware update via Web NTP |
| Management | Support local management with web Support remote management with Wi-Tek Cloud platform and APP |
| Environment | |
| Operating Temperature | -20℃~55℃ (-4℉~131℉) |
| Storage Temperature | -40°C~70°C (-40℉~158℉) |
| Operating Humidity | 5%~95% (non-condensing) |
| Storage Humidity | 5%~95% (non-condensing) |
| Others | |
| Certification | CE, FCC, RoHS, UKCA, RCM |
| Product Dimension | 167mm × 144mm × 66mm |
| Package Dimension | 325mm × 235mm × 70mm |
