Product Overview

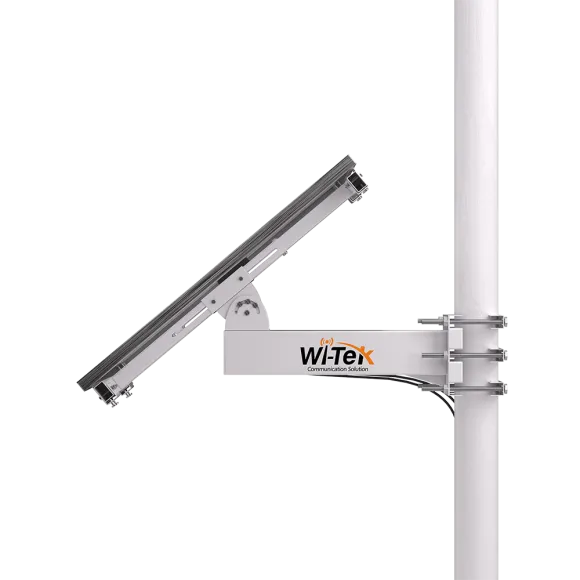

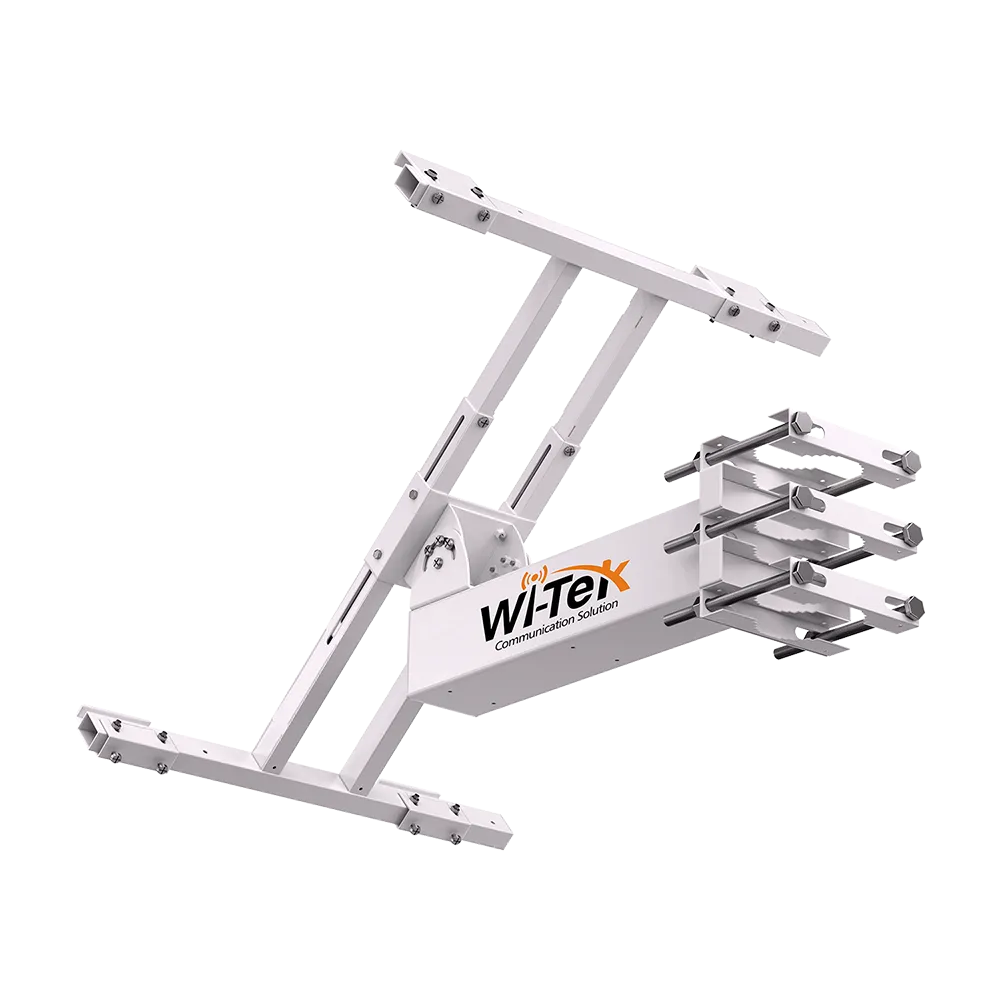

The Wi-Tek Solar Panel Bracket is designed for small to medium pole-mounted solar power applications. It provides an adjustable mounting structure for solar panels, with support for round and square poles, adjustable panel width, depth, and angle, and a heavy galvanized steel construction built for harsh outdoor environments.
Key Configuration
Product Type: Solar Panel Bracket | Application: Small-medium pole-mounted solar power installations | Round Pole Compatibility: 76-105 mm | Square Pole Compatibility: 50-80 mm | Adjustable Width: 540-900 mm | Adjustable Depth: 25-35 mm | Adjustable Angle: 0-50 degrees recommended, up to 75 degrees maximum | Material: SGCC heavy galvanized steel with baking varnish
Key Features
· Designed for small to medium pole-mounted solar power applications
· Suitable for 76-105 mm round poles
· Compatible with 50-80 mm square poles
· Adjustable 540-900 mm width supports different solar panel sizes
· Adjustable 25-35 mm depth provides installation flexibility
· Solar panel angle adjusts from 0-50 degrees, with up to 75 degrees maximum adjustment
· SGCC heavy galvanized steel construction supports outdoor durability
· Baking varnish finish adds protection against environmental exposure
· Heavy galvanized steel body is designed to withstand high wind and snow loads
· Anti-ultraviolet and corrosion-resistant design supports long-term harsh-environment use
Technical Context
This bracket is intended for solar-powered outdoor systems where the solar panel must be securely mounted to a pole and adjusted for optimal angle. Its adjustable width, depth, and tilt range make it suitable for a range of small to medium solar panel deployments.
The galvanized steel construction and corrosion-resistant finish help the bracket maintain structural stability in outdoor environments exposed to wind, snow, sunlight, and moisture.
Installation Notes
The bracket should be matched to the pole size and solar panel dimensions before installation. For units produced after SN 202605, the duckbill fixation method has been changed to welding and the support stability has been optimized.
| Highlight Features | |
| Application | Designed for the small-medium pole-mounted solar power application. |
| Pole Compatibility | Suitable for 76~105mm round pole, compatible with 50~80mm square pole. |
| Adjustability | 540mm~900mm adjustable width, 25mm~35mm adjustable depth, 0°~50° (0°~50° is recommended, 0~75° max.) adjustable angle for solar panel. |
| Material | SGCC heavy galvanized steel, with baking varnish. |
| Load Resistance | A heavy galvanized steel body can withstand huge wind load and snow load. |
| Durability | Anti-ultraviolet, resist corrosion designed for durability in harsh environments. |
| Note | Production times after SN 202605 has changed the duckbill fixation method to welding and optimized the stability of the support. |
