Wi-Tek - WI-CES506GF - 2.5Gbps Cloud Easy Smart PoE/ Ethernet Switch
Product Overview
The Wi-Tek Cloud Easy Smart Managed 2.5Gbps PoE/Ethernet Switch family provides 2.5Gbps RJ45 access ports and 10Gbps SFP+ uplinks for modern wired networks. Available in 4-port configurations with non-PoE or PoE+ options, these switches support cloud management, ONVIF-based camera integration, real-time alarms, and silent operation for homes and offices.
Key Configuration
Product Family: Cloud Easy Smart Managed 2.5Gbps PoE/Ethernet Switches | Access Ports: 4 × 2.5Gbps RJ45/PoE+ ports | Uplink Ports: 2 × 10Gbps SFP+ slots | Variants: Non-PoE and PoE+ configurations | Management: Wi-Tek Cloud management and mobile app remote maintenance
Key Features
- · Available with four or eight 2.5Gbps Ethernet access ports
- · Available with one or two 10Gbps SFP+ uplink slots
- · 2.5Gbps downlink speeds overcome the bandwidth limitations of standard Gigabit Ethernet
- · Offered in non-PoE and PoE+ access switch configurations
- · Supports magnetic and wall-mounted installation
- · Fanless design provides silent operation in homes and offices
- · Real-time alarms help monitor network and device status
- · Alarm functions are designed to assist users without advanced networking expertise
- · ONVIF support can automatically identify compatible IP cameras for CCTV deployments
- · Wi-Tek Cloud management and mobile app support remote maintenance
Technical Context
2.5Gbps RJ45 access ports provide additional bandwidth for high-throughput endpoints, while 10Gbps SFP+ slots support high-speed uplinks to aggregation or backbone equipment. ONVIF support helps the switch recognize compatible IP cameras, and Wi-Tek Cloud management enables remote monitoring and maintenance through the mobile application.
Installation Notes
The switches support magnetic and wall-mounted installation, allowing flexible placement in homes, offices, and CCTV environments. The fanless design is suitable for locations where quiet operation is required.
| General | |
| Model | WI-CES506GF |
| Hardware Version | V1 |
| Interfaces | |

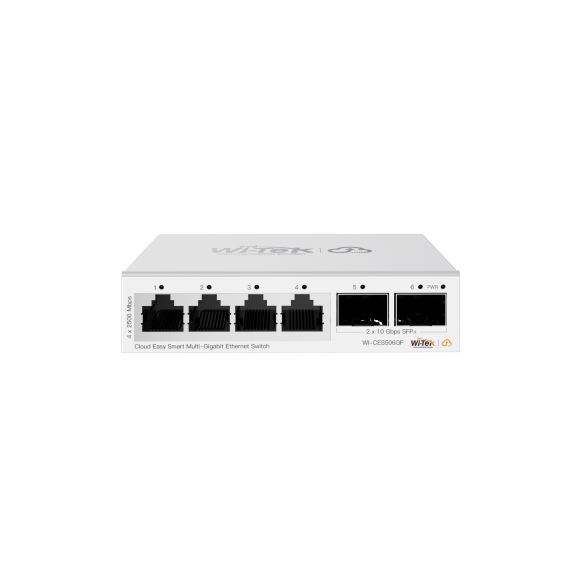

| Downlink Ports | 4 × 10M/100M/1000M/2.5Gbps RJ45 ports |
| Uplink Ports | 2 × 10M/100M/1000M/2.5G/10Gbps SFP slots |
| Performance | |
| Memory | 8 KB |
| Flash Memory | 16 MB |
| Standards and Protocols | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3bz IEEE 802.3x IEEE 802.3ae |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 60 Gbps |
| Packet Forwarding Rate | 44.64 Mpps |
| MAC Address Table | 4K |
| Packet Buffer Memory | 8 Mbit |
| Jumbo Frame | 12 KB |
| Electrical | |
| Input Power | DC 12 V / 1 A max. |
| Power Consumption | Idle: 7.11 W |
| Physical Characteristics | |
| LED Indicators | PWR: Green on - the device power is normal; Off - the device is powered off or has failed Link: Green on - port connected at 2.5 Gbps; Orange on - port connected at 10/100/1000 Mbps; Blinking - data transmission; Off - port disconnected SFP Indicators (Ports 5 and 6): Green on - 10 Gbps link; Orange on - 1G/2.5G link; Off - port disconnected |

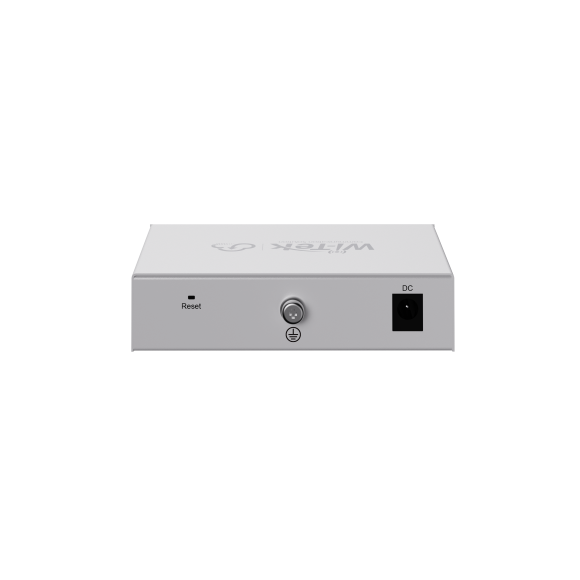

| Reset Button | Hold for more than 5 seconds to restore the factory default configuration |
| Fan Quantity | Fanless |
| Switch Dimensions | 100 × 63.7 × 24 mm |
| Package Dimensions | 405 × 253 × 97 mm |
| Net Weight | 0.24 kg |
| Package Weight | 0.71 kg |
| Installation | Wall-mounted, magnetic-mounted, desktop |
| Reliability | |
| Surge Immunity | IEC 61000-4-5 Common mode: 4 kV Differential mode: 2 kV |
| ESD Protection | IEC 61000-4-2 Contact discharge: 6 kV Air discharge: 8 kV |
| Environmental | |
| Operating Environment | -10°C to 50°C (14°F to 122°F); 10%–90% RH, non-condensing |
| Storage Environment | -40°C to 70°C (-40°F to 158°F); 5%–90% RH, non-condensing |
| Certifications | |
| Certifications | CE, FCC, RoHS, UKCA, RCM |
