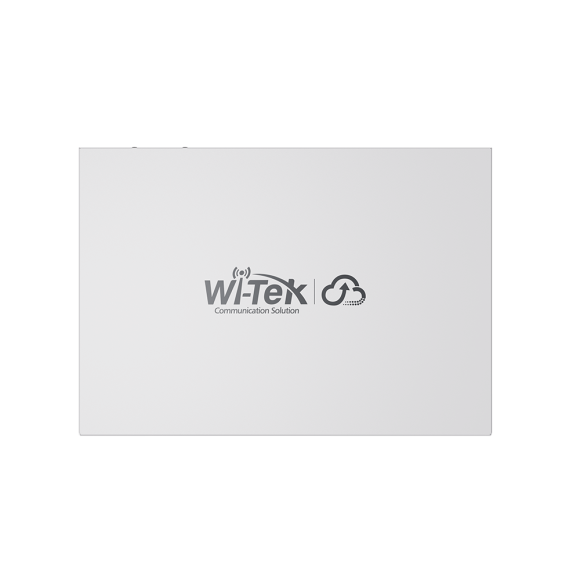

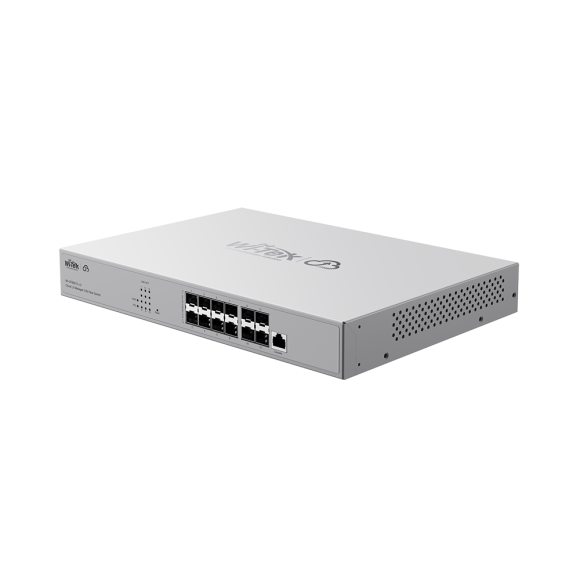

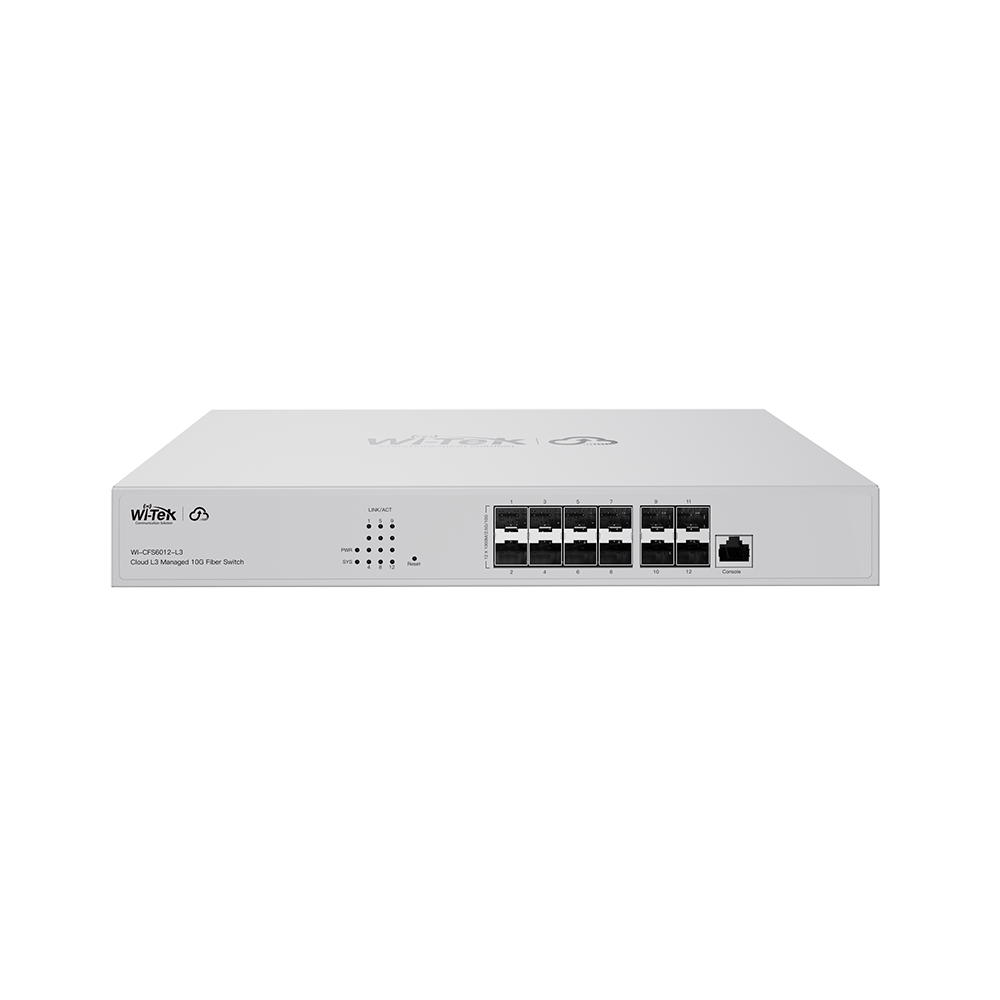

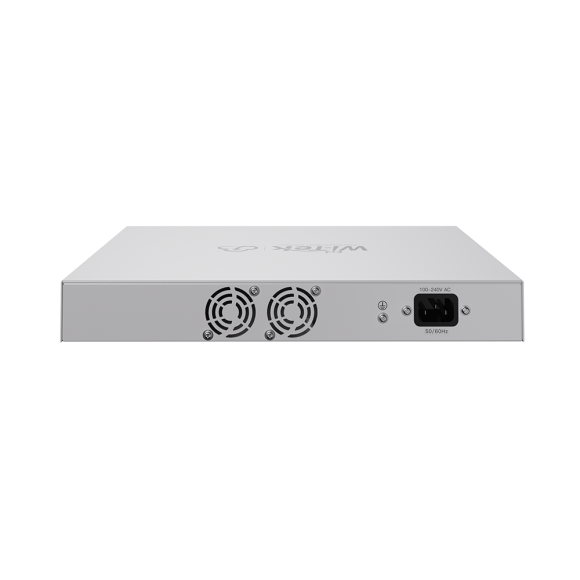

Wi-Tek - WI-CFS6012-L3 - Cloud L3 Managed Non-PoE Switch

Product Overview

This Wi-Tek Cloud L3 Managed Non-PoE Switch is designed for high-speed aggregation and core network deployments that require dense 10Gbps fiber connectivity, Layer 3 routing, advanced security, traffic control, and cloud-based maintenance. It provides twelve 10Gbps SFP+ slots and a managed non-PoE architecture for backbone and fiber aggregation applications.

Key Configuration

Product Type: Cloud L3 Managed Non-PoE Aggregation/Core Switch | SFP+ Slots: 12 x 10Gbps | PoE: Non-PoE | L3 Features: Static Routing, RIP, OSPF, DHCP Server/Relay | Security: ACL, DoS Defend, DHCP Snooping, 802.1X, IP-MAC-Port Binding | Network Features: QoS Policies, VLAN Protocols | Management: Web, CLI, Telnet, SNMP, RMON, Cloud Management

Key Features

 · Provides twelve 10Gbps SFP+ slots for high-speed fiber aggregation

 · Non-PoE design is suited for aggregation and core switching roles

 · L3 features include Static Routing, RIP, OSPF, and DHCP Server/Relay

 · Security functions include ACL, DoS Defend, DHCP Snooping, 802.1X, and IP-MAC-Port Binding

 · Rich QoS policies support flexible resource allocation

 · Multiple VLAN protocols help separate traffic and improve network reliability

 · Supports Web, CLI, Telnet, SNMP, and RMON management

 · Cloud management enables easy and flexible remote maintenance

Technical Context

This switch is intended for fiber-heavy aggregation and core network layers where 10Gbps uplink density and Layer 3 services are required. The twelve SFP+ slots allow high-speed connections to access switches, distribution switches, servers, storage, or upstream backbone infrastructure.

Layer 3 routing, VLAN protocols, QoS policies, and security controls help segment traffic, prioritize critical services, and protect network stability in enterprise, campus, hospitality, and surveillance backbone deployments.

Installation Notes

This Cloud L3 managed non-PoE switch is suitable for core and aggregation environments where powered endpoints are handled by separate PoE access switches or injectors. Plan SFP+ modules, fiber type, routing design, VLAN structure, and uplink capacity before deployment.
