Wi-Tek - WI-CMS528F-L3 - Cloud L3 Managed Non-PoE Switch

Product Overview

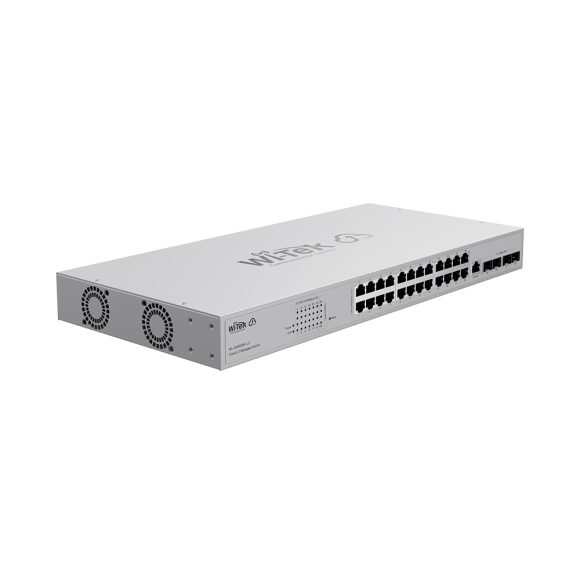

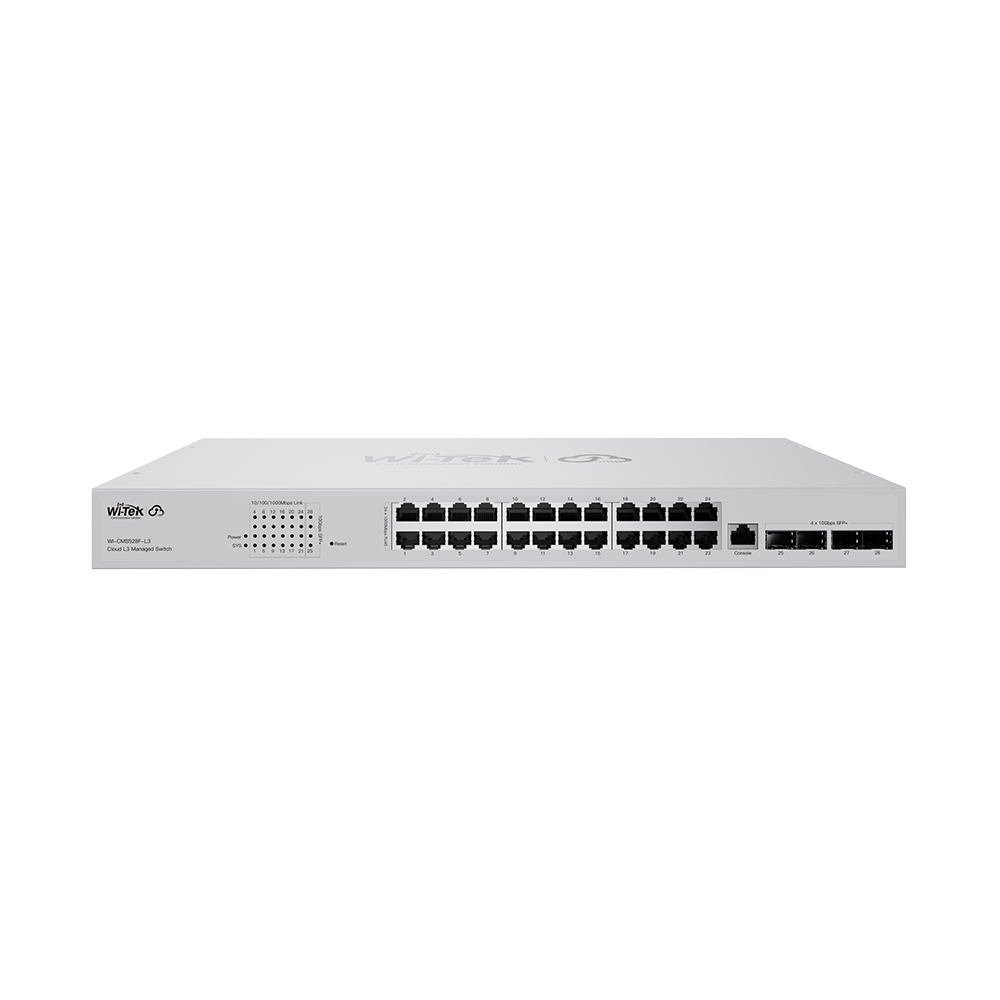

This Wi-Tek Cloud L3 Managed Non-PoE Switch is designed for aggregation and core network deployments that require high-density Gigabit copper connectivity, 10Gbps fiber uplinks, Layer 3 routing, advanced security, QoS, VLAN support, and cloud-based maintenance. It provides twenty-four 1000Mbps RJ45 ports and four 10Gbps SFP+ slots in a managed non-PoE switching platform.

Key Configuration

Product Type: Cloud L3 Managed Non-PoE Aggregation/Core Switch | RJ45 Ports: 24 x 1000Mbps | SFP+ Slots: 4 x 10Gbps | PoE: Non-PoE | L3 Features: Static Routing, RIP, OSPF, DHCP Server/Relay | Security: ACL, DoS Defend, DHCP Snooping, 802.1X, IP-MAC-Port Binding | Network Features: QoS Policies, VLAN Protocols | Management: Web, CLI, Telnet, SNMP, RMON, Cloud Management

Key Features

 · Provides twenty-four 1000Mbps RJ45 ports for high-density wired connectivity

 · Includes four 10Gbps SFP+ slots for high-speed fiber uplinks

 · Non-PoE design is suited for aggregation and core switching roles

 · L3 features include Static Routing, RIP, OSPF, and DHCP Server/Relay

 · Security functions include ACL, DoS Defend, DHCP Snooping, 802.1X, and IP-MAC-Port Binding

 · Rich QoS policies support flexible resource allocation

 · Multiple VLAN protocols help separate traffic and improve network reliability

 · Supports Web, CLI, Telnet, SNMP, and RMON management

 · Cloud management enables easy and flexible remote maintenance

Technical Context

This switch is intended for managed aggregation and core environments where many wired Gigabit connections must be combined with high-speed 10Gbps uplinks. The twenty-four RJ45 ports support copper network access, while the four SFP+ slots provide backbone capacity for fiber-connected infrastructure.

Layer 3 routing, VLAN support, QoS policies, and security controls help segment traffic, prioritize services, and protect network reliability in enterprise, campus, hospitality, and surveillance backbone networks.

Installation Notes

This Cloud L3 managed non-PoE switch is suitable for core and aggregation deployments where endpoint power is supplied separately through PoE access switches, injectors, or local power adapters. Plan RJ45 port allocation, SFP+ modules, VLAN structure, routing design, and uplink capacity before installation.
