Wi-Tek - WI-IOT100 - Cloud controller for solar powered PoE switch
Product Overview
The Wi-Tek WI-IOT100 is a cloud controller designed for solar powered PoE switch deployments. It connects to a solar power PoE switch through RS-485, supports PoE or DC power input, and enables real-time and trendline monitoring of photovoltaic and battery status through the Wi-Tek cloud platform.
Key Configuration
Model: WI-IOT100 | Product Type: Solar Powered PoE Switch Cloud Controller | PoE Input: 1 x 100 Mbps IEEE 802.3af PoE IN | Ethernet: 1 x 100 Mbps RJ45 | Control Interface: 1 x RS-485 | Power Supply: IEEE 802.3af PoE IN or 12-54V DC | Operating Temperature: -20 to 65 °C | Monitoring: Wi-Tek cloud photovoltaic and battery status monitoring
Key Features
· Provides cloud control for solar powered PoE switch installations
· Includes one 100 Mbps IEEE 802.3af PoE input port
· Provides one 100 Mbps RJ45 Ethernet port for network connectivity
· RS-485 interface connects directly to a solar power PoE switch
· Supports IEEE 802.3af PoE input or 12-54V DC power supply
· Operating temperature range of -20 to 65 °C supports demanding environments
· Monitors photovoltaic status in real time through Wi-Tek cloud
· Tracks battery status and trendline data for solar power PoE switch systems
Technical Context
The WI-IOT100 is intended to add cloud-based visibility and control to solar powered PoE switch systems. Through RS-485 communication, it gathers operating data from the connected solar power PoE switch and makes photovoltaic and battery information available through Wi-Tek cloud monitoring.
Support for both IEEE 802.3af PoE input and 12-54V DC input gives installers flexibility when integrating the controller into solar or hybrid power network designs.
Installation Notes
The WI-IOT100 should be connected to the solar power PoE switch through the RS-485 interface and powered using IEEE 802.3af PoE input or a 12-54V DC power source. Its -20 to 65 °C operating range supports deployment in outdoor solar network environments when installed in a suitable enclosure.
| Products | WI-IOT100 |
| Hardware Version | V1 |
| Hardware Features | |
| Serial Port | 1 × RS-485 port Signal: 485-A, 485-B, GND, VCC (5V) Baud Rate: 300-230400 bps Data bits: 8bits, 7bits Stop bit: 1 bit, 2bits Check bit: None, Even, Odd Support software flow control |
| Flash | 8MB |
| DDR2 | 64MB |

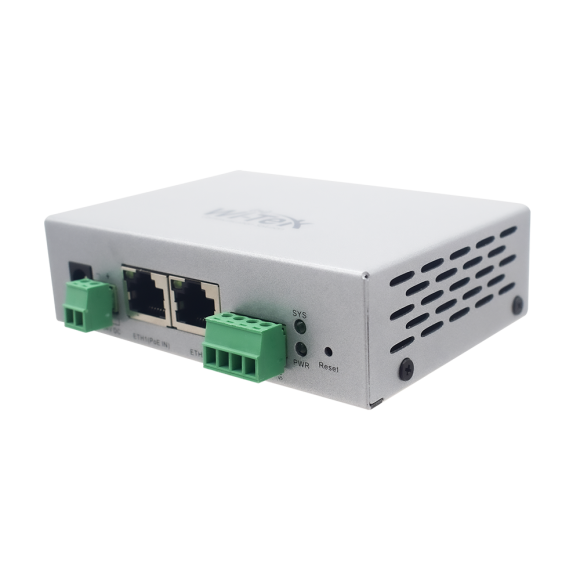

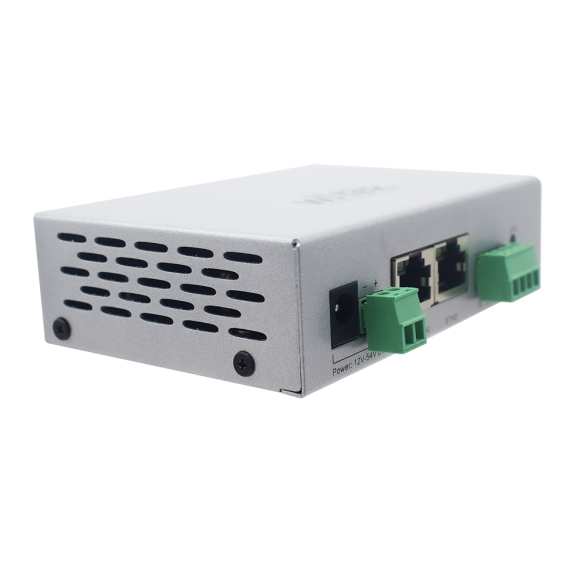

| LED Indicator | 1 × PWR, Power indicator 1 × SYS, System indicator |
| Reset Button | Short press 1~3 seconds: Reboot the device. Long press over 5 seconds: Restore the factory default configuration. |
| Interface | 1 × 10/100Mbps PoE IN RJ45 port 1 × 10/100Mbps RJ45 port |
| Power Supply | IEEE 802.3af PoE IN 12~54V DC (The two DC power supplies cannot be connected at the same time) |
| Power Consumption | <1.8W (without RS-485 VCC output) |
| Dimensions | 105 × 74 × 30mm |
| Package Dimensions | 182 × 133 × 36mm |
| Weight | 0.21kg |
| Package Weight | 0.3kg |

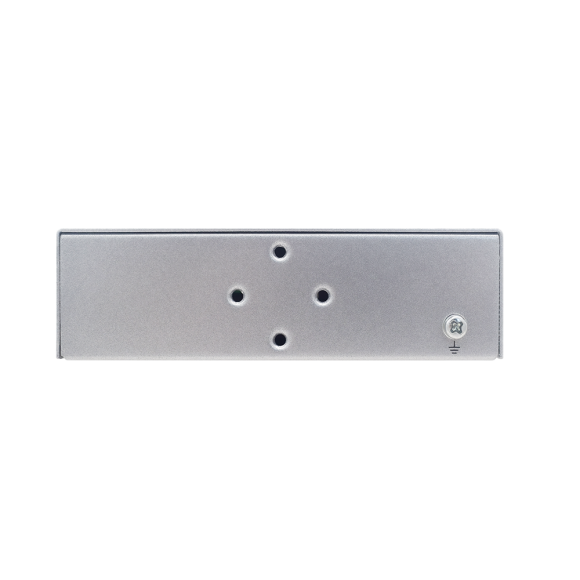

| Installation | DIN-rail / Desktop mounted |
| Fan Quantity | Fan-less |
| Color | Silver |
| Material | Metal shell |
| Software Features | |
| Network | Static IP, Dynamic IP |
| Advanced | Ping Watchdog, Scheduled Reboot, NTP Server, Diagnosis: PING, TRACERT |
| Serial Mode | DTU, Modbus Master, Modbus Slave, Solar |
| Management | Local WEB Management, Cloud Management: The photovoltaic power and battery status and data of Wi-Tek solar power PoE switch can be quick configuration, visual management, and remote access in the Wi-Tek through WI-IOT100 (Solar serial mode). |
| Reliability | |
| Surge Immunity | Common mode: 2kV, Differential mode: 1kV |
| ESD Protection | Contact Discharge: ±6kV, Air Discharge: ±8kV |
| Environment | |
| Operating Environment | -20°C to 65°C, 5%~95% (non-condensation) |
| Storage Environment | -40°C to 70°C, 5%~95% (non-condensation) |
