Wi-Tek - WI-IOT110(V2) - Industrial IOT 4G LTE Gateway

Product Overview

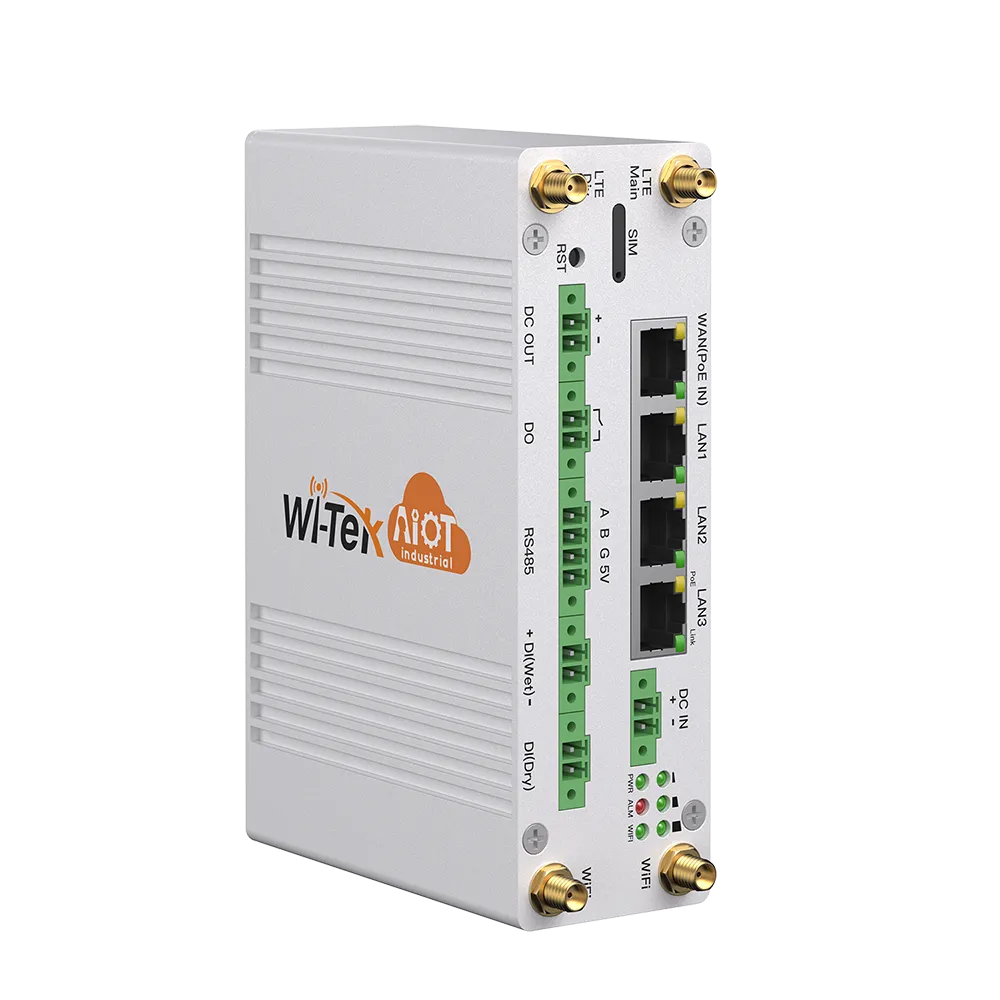

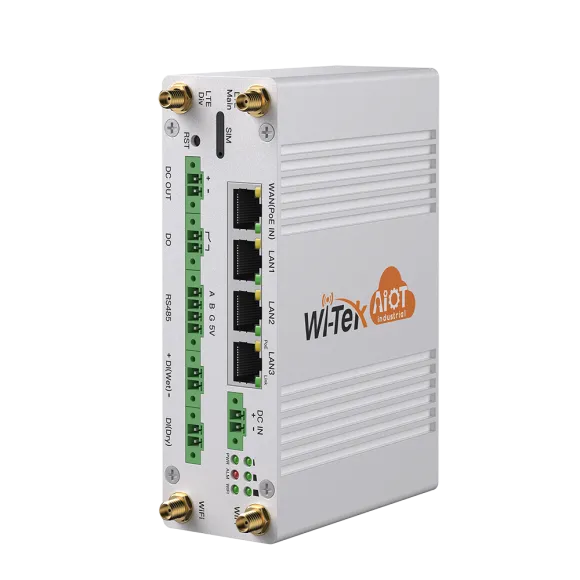

The Wi-Tek WI-IOT110 V2 is an Industrial IoT 4G LTE Gateway designed for solar-powered PoE switch monitoring and outdoor network control applications. It provides four 100Mbps Ethernet ports, 2.4GHz wireless connectivity, RS-485 communication, flexible IoT input/output interfaces, PoE input and output support, and Wi-Tek Cloud monitoring for photovoltaic and battery status data.

Key Configuration

Model: WI-IOT110 V2 | Product Type: Industrial IoT 4G LTE Gateway | Ethernet Ports: 4 x 100Mbps, 1 WAN + 3 LAN | Wireless: 300Mbps at 2.4GHz | Industrial Interface: 1 x RS-485 | IoT Interfaces: 1 x DI Dry, 1 x DI Wet, 1 x DO | PoE Input: 802.3bt at WAN port | PoE Output: 802.3af/at at LAN port | DC Output: 12V / 1.5A | Cloud Monitoring: Photovoltaic and battery real-time status and trendline monitoring in Wi-Tek Cloud

Key Features

 · Industrial IoT 4G LTE gateway for solar-powered PoE switch applications

 · Provides four 100Mbps Ethernet ports with 1 WAN and 3 LAN configuration

 · Supports 300Mbps wireless data rate at 2.4GHz

 · Includes one RS-485 interface for connection to a solar power PoE switch

 · Flexible IoT interfaces include one dry digital input, one wet digital input, and one digital output

 · Supports 802.3bt PoE input at the WAN port

 · Supports 802.3af/at PoE output at the LAN port

 · Provides DC 12V / 1.5A output for auxiliary power needs

 · Wi-Tek Cloud displays real-time photovoltaic and battery status

 · Trendline monitoring helps track solar power PoE switch performance over time

Technical Context

The WI-IOT110 V2 is intended for industrial IoT and solar networking deployments where remote communication, device control, and power-system monitoring are required. Its RS-485 interface connects to a solar power PoE switch, while the Ethernet, wireless, and IoT interfaces support local device integration.

By combining PoE input, PoE output, DC output, and Wi-Tek Cloud monitoring, the gateway can support remote solar-powered network sites that require visibility into photovoltaic generation and battery status.

Installation Notes

The WI-IOT110 V2 should be connected to the solar power PoE switch through RS-485 for photovoltaic and battery monitoring. Confirm WAN/LAN port use, PoE input and output requirements, DC 12V load, and IoT interface wiring before installation.
