Wi-Tek industrial media converter provide 1 Gigabit Ethernet RJ-45 port and 1 Gigabit SFP slot. It combines Ethernet media conversion with 802.3af/at/bt PoE (PoE++) power to deliver up to 60 watts (60W Mode) of power output and high data transmission speed to PDs (powered devices) which installed in a remote area and the sufficient and reliable power input is required. Gigabit SFP slot provides long distance, high speed data transmission to a remote core network. Professional design providing a flexible, easy to use and reliable industrial network solution. Redundant power design guarantee the stable power supply. Solid shell, wide operation temperature from -40°C to 80°C design, ensure its reliable operation even in harsh environment. It is the best choice for outdoor CCTV project, wireless coverage project and the project of industrial application scenarios.
Features:

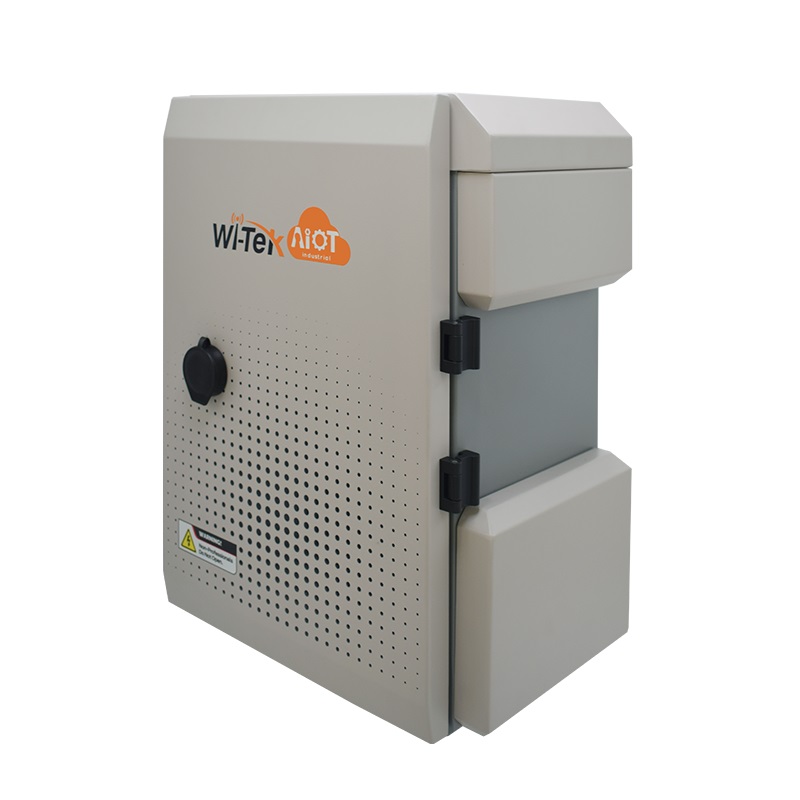

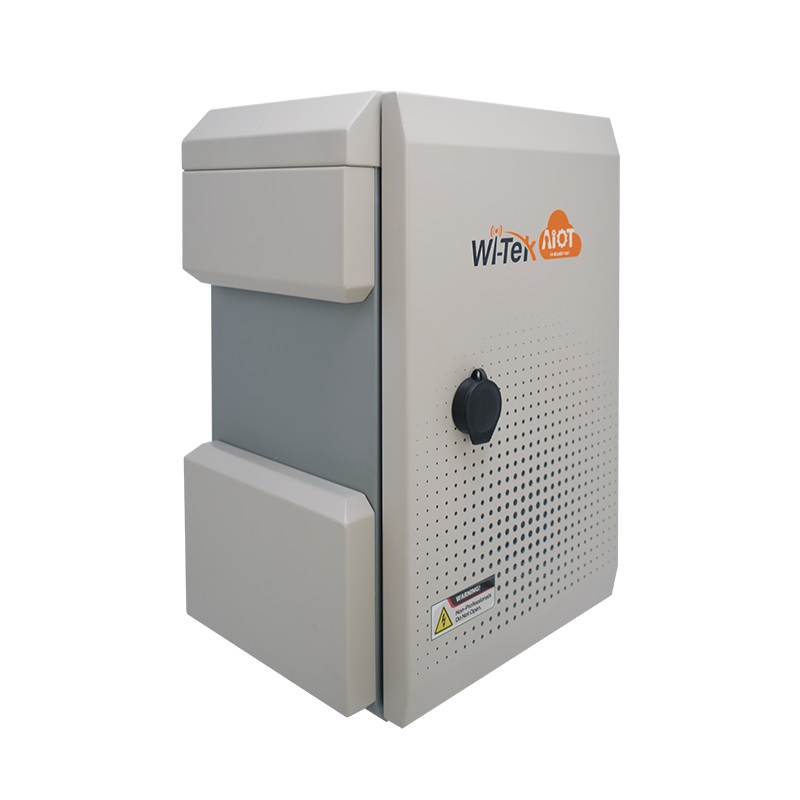

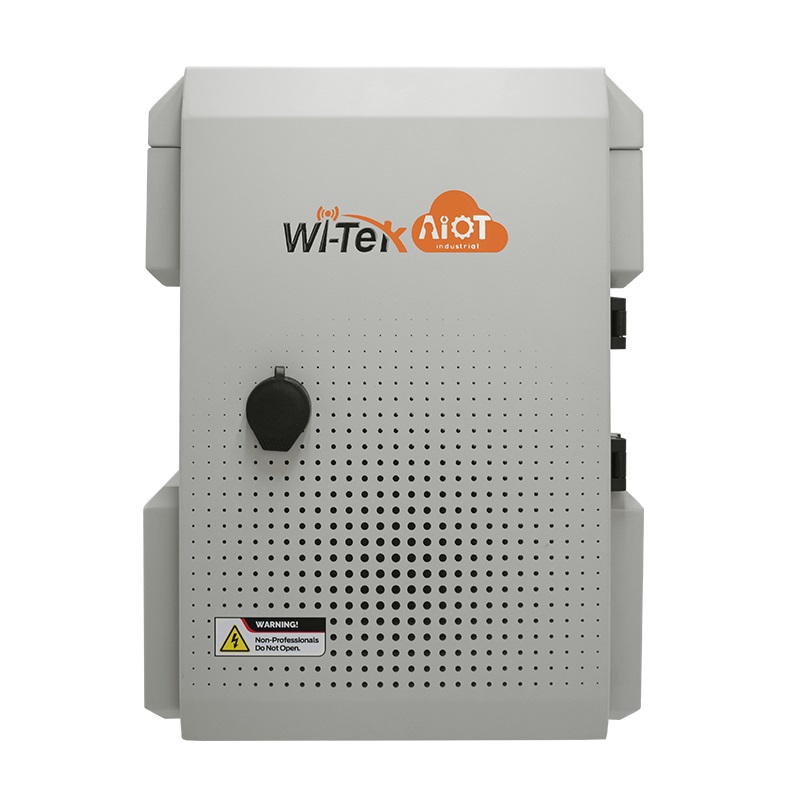

- Housing IP66 and IK08 Deisgn
- 1.2mm thickness 430 Stainless Steel Material
- Included Wall mounting and Pole mounting kits
- Included 2 mounting plate with DIN rails for customer equipment
- Included DIN Railcircuit breaker*1pcs,DIN Rail AC Socket*1pcs
- Waterproof Port connectors*4pcs for RJ45 and AC cable
- IPC/Wireless AP mounting hole cover*4pcs
- Operating Temperature: -40 ~ 80°C; Dimensions: 300x400x200mm, 7.5kg
- Multiple use for Junction, Distribution, Electrical, Battery, Control, Monitoring etc. Outdoor waterproof Enclosure Box，IPC/Wireless AP mounting hole
| Model | WI-PS302GF-I |
| Hardware Specification | |
| Interfaces | |
| Ethernet Port | 1*10/100/1000 Base-T PoE+ +RJ-45(Auto-MDI/MDI-X) |
| Fiber Port | 1*1000 Base-X SFP slot |
| DIP Switch |
60W PoE |
| PoE | |
| PoE Standard | IEEE 802.3af/at/bt (PSE) |
| PoE Power Supply Type | Mid-span, End-span |
| PoE Pin Assignment | 1/2 (-)，3/6 (+), 4/5 (+), 7/8 (-) |
| PoE Power Output | 37~55V DC |
| PoE Power | 60W |
| Switch Property | |
| Standards | IEEE 802.3 Ethernet, IEEE802.3 x Full Duplex and flow control IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
| Power Supply | |
| Input Voltage | Power 1 (Main): 37~57V DC, Power 2 (Backup): 37~57V DC, DC Jack: 37~57V DC |
| Power Consumption | Full loading without PoE ≤ 6W PoE power budget ≤ 66W |
| Connector | Removable 4-pin terminal block, DC Jack |
| Environmental Reliability | |
| Surge Immunity | 6kV |
| ESD | 8kV Contact Discharge, 15kV Air Discharge |
| Operating Temperature | -40℃~80℃ |
| Storage Temperature | -40℃~85℃ |
| Operating Humidity | 5%~95% (Non-condensation) |
| LED Indicators | |
| PW (Power indicator) | Off: the device is power off or failed On: the device power on is normal |
V1/V2/V3 (Input power indicator) | Off: No power supply On: Power is supplying via V1/V2/V3 DC connector |
| Link Indicator | Off: ports link down On: ports link up Blinking: data on TX/RX |
| EX Indicator | Off: Extend mode is disabled. On: Extend mode is enabled. |
| SFP Indicator | Off: ports link down Green On: ports link up Blinking: data on TX/RX |
| Dimensions (W*D*H) 110*96*31mm | |
| Net Weight | 295g |
| Gross Weight 390g | |
| Installation | Wall/DIN-rail mounting |
| Certifications | |
| Certifications | CE, FCC, RoHS |
