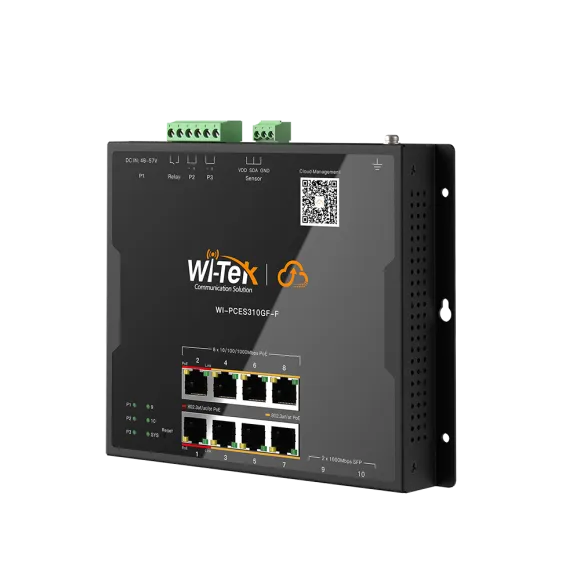

Wi-Tek - WI-PCES310GF-F - Flat-type Cloud Easy Smart Switch
Product Overview
This Wi-Tek Flat-type Cloud Easy Smart Switch is a cloud-managed industrial PoE access switch designed for compact surveillance and network edge installations. It provides eight Gigabit PoE ports, two Gigabit SFP slots, high-power PoE++ support on ports 1-2, environmental temperature and humidity sensing, and Wi-Tek Cloud management for remote monitoring and maintenance.
Key Configuration
Product Type: Cloud Industrial Flat Easy Smart PoE Switch | PoE Ports: 8 x 1000 Mbps | SFP Slots: 2 x 1000 Mbps | PoE Output: Ports 1-2 support 802.3af/at/bt up to 90W; ports 3-8 support 802.3af/at up to 30W | Mounting: Wall mounting, magnetic wall mounting, DIN-rail mounting | Operating Temperature: -40°C to 75°C | Management: Wi-Tek Cloud platform and mobile app | Camera Discovery: ONVIF Support
Key Features
· Cloud industrial flat easy smart switch for compact PoE access deployments
· Provides eight 1000 Mbps PoE ports for IP cameras and powered network devices
· Includes two 1000 Mbps SFP slots for fiber uplink connectivity
· Ports 1-2 support IEEE 802.3af/at/bt PoE++ output up to 90W
· Ports 3-8 support IEEE 802.3af/at PoE output up to 30W
· Compact flat design supports wall, magnetic wall, or DIN-rail mounting
· Built-in temperature and humidity sensing supports environmental monitoring
· Sends remote cloud alarm notifications when configured thresholds are exceeded
· Wide -40°C to 75°C operating temperature range supports industrial environments
· Port automatic anti-loop helps maintain network continuity
· Alarm notifications support real-time maintenance
· ONVIF support helps automatically identify connected IP cameras
· Link aggregation helps increase network bandwidth and reliability
· Wi-Tek Cloud platform and mobile app enable remote ONVIF camera management
Technical Context
This switch is intended for industrial and surveillance deployments where compact mounting, PoE power, fiber uplinks, and cloud-based maintenance are required. The flat form factor allows installation in space-limited cabinets, walls, or DIN-rail environments.
Environmental sensing, alarm notifications, automatic anti-loop protection, ONVIF discovery, and link aggregation make it suitable for managed IP camera networks that require visibility, reliability, and remote administration.
Installation Notes
This flat-type switch can be installed by wall mounting, magnetic wall mounting, or DIN-rail mounting depending on the site requirements. PoE load planning should account for high-power PoE++ devices on ports 1-2 and standard PoE+ devices on ports 3-8.
| Model | WI-PCES310GF-F |
| Hardware Specifications | |
| Interfaces | |
| Downlink Ports | 8 × 10/100/1000Mbps RJ45 Ports |
| Uplink Ports | 2 × 1000Mbps SFP Slots |
| PoE | |
| PoE Ports | Port 1-8 |
| PoE Standard | Port 1-2: IEEE802.3 af/at/bt Port 3-8: IEEE802.3 af/at |
| PoE Power Supply Type | Mid-span and End-span |
| PoE Pin Assignment | 1/2(+), 3/6(-), 4/5(+), 7/8(-) |
| PoE Power | 90W Max. for port 1-2 30W Max. for port 3-8 355W Max. for PoE power budget. |
| Performance | |
| Flash Memory | 4 MB Flash |
| Switch Property | |
| Standards and Protocols | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.1x IEEE 802.1q IEEE 802.1p IEEE802.3af IEEE802.3at IEEE802.3bt |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 2 k |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 9216 Bytes |
| Power Supply | |
| Input Power | DC 48-57V/6A Max |
| Power Consumption | Idle: 5 W 100% Traffic Rate with PoE: 360 W |
| Physical Characteristics | |

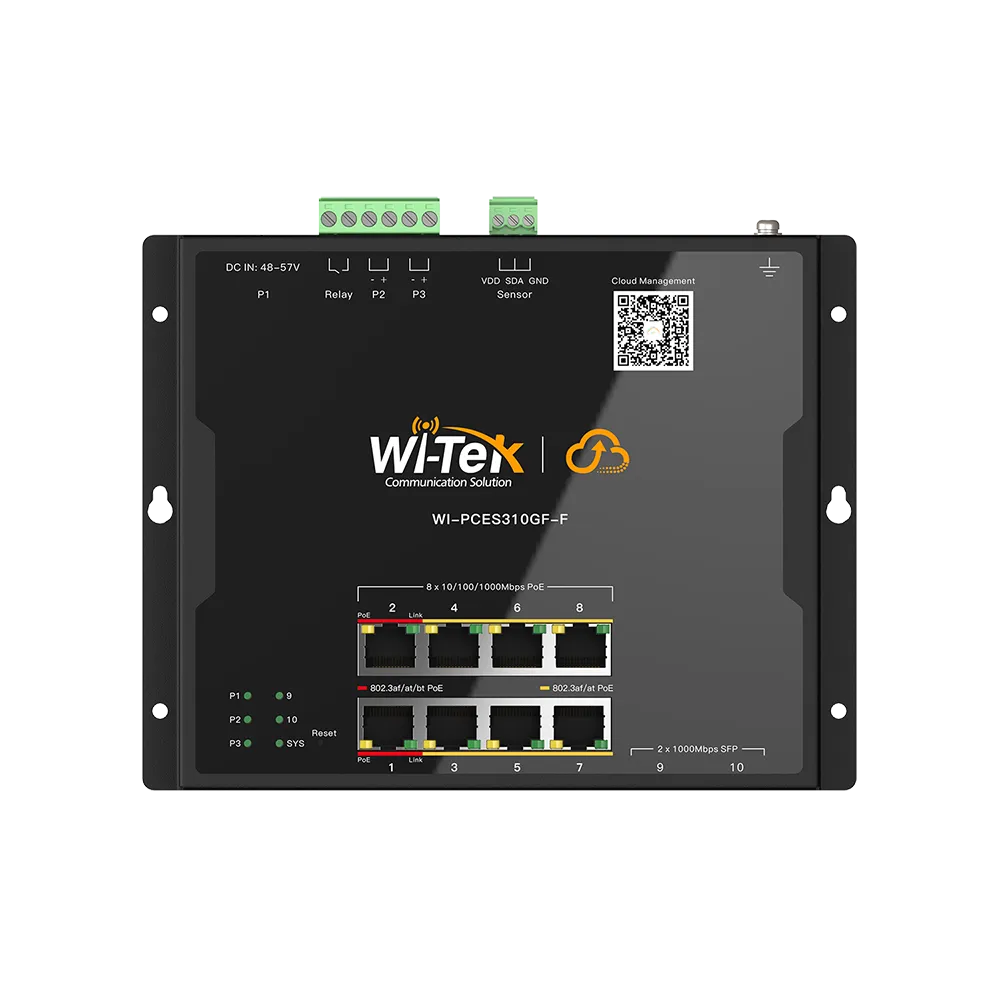

| LED Indicators | SYS (Green): Blinking: The system is working normally Off: The system is being started or abnormal PoE (Orange): On: There is a PoE PD connected to the port, which supplies power successfully Off: No PoE powered device (PD) connected Link (Green): On: Port connected Off: Port disconnected Blinking: Data transmission SFP Indicator (9,10): Solid on: Port connected Blinking: Data transmission Off: Port disconnected P1/P2/P3: On: the device power on is normal Off: the device is power off or failed |
| Switch Dimension (W × D × H) | 180 × 140 × 25 mm |
| Package Dimension | 307 × 291 × 69 mm |
| Weight | Net Weight: 0.40 kg Package Weight: 0.65 kg |
| Installation | DIN-rail, wall-mount and magnetic-mount |
| Fan Quantity | Fanless |
| Button | Reset: Hold for >5 sec. to restore factory default |
| Reliability | |
| Surge Immunity | IEC 61000-4-5 Common mode 6kV Differential mode 4kV |
| ESD Protection | IEC 61000-4-2 Contact discharge 6kV Air discharge 8kV |
| Environmental | |
| Operating Temperature | -40℃ to 75℃ (-40℉ to 167℉) |
| Operating Humidity | 10%~90% RH no condensation |
| Storage Temperature | -40℃ to 80℃ (-40℉ to 176℉) |
| Storage Humidity | 10%~90% RH no condensation |
| Certification | |
| Certification | CE, FCC, RoHS, UKCA, RCM |
