Wi-Tek - WI-PCES318GF-F - Flat-type Cloud Easy Smart Switch
Product Overview

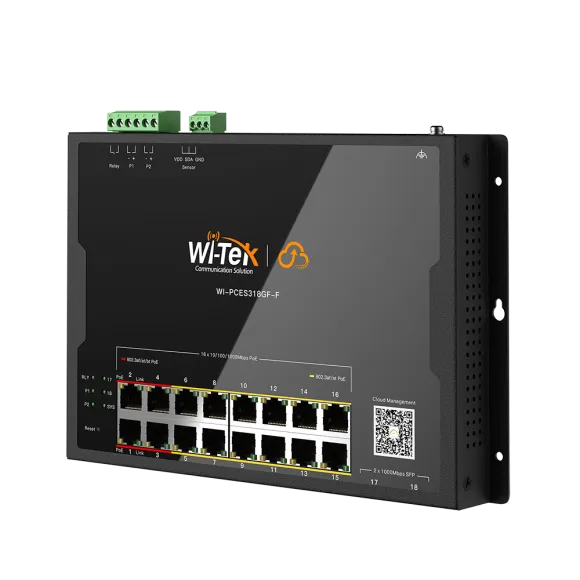

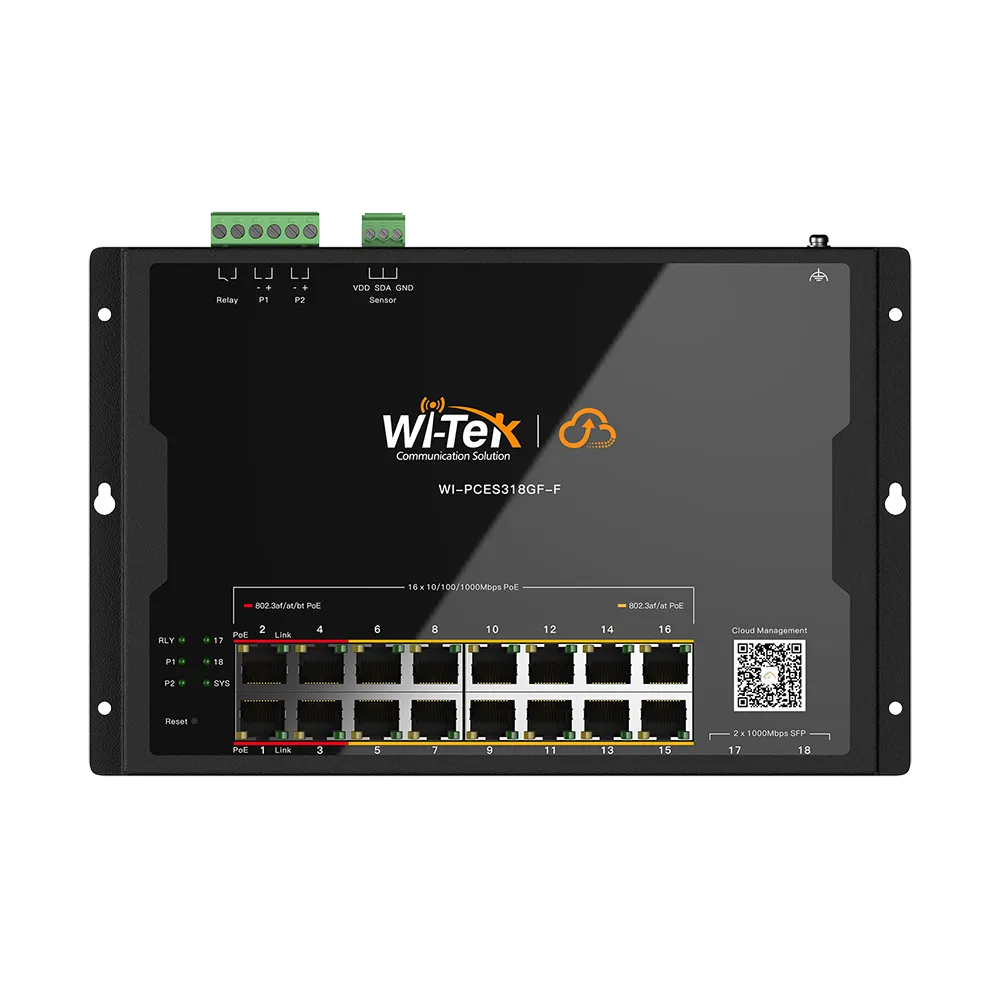

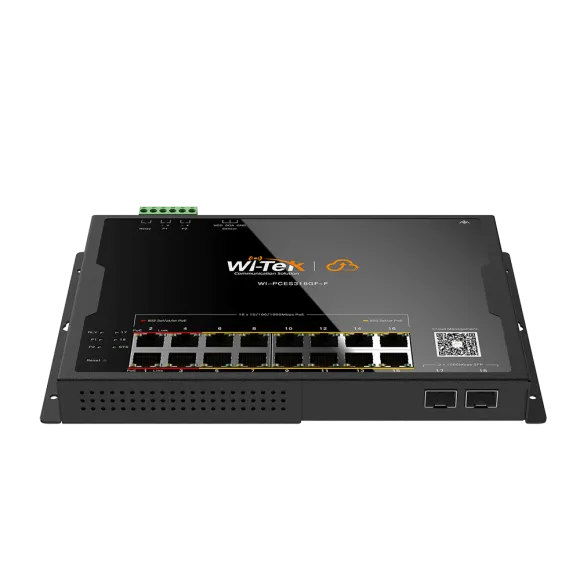

The Wi-Tek Flat-type Cloud Easy Smart Switch is a hardened cloud-managed PoE switch with 16 Gigabit PoE ports and two 1000 Mbps SFP uplink slots. It combines flexible high-power PoE delivery, environmental monitoring, automatic loop prevention, link aggregation, ONVIF camera identification, and compact mounting options for surveillance, business networks, and industrial applications.
Key Configuration
Product Type: Flat-type Cloud Easy Smart Switch | Ethernet Ports: 16 × 1000 Mbps PoE ports | Uplink Ports: 2 × 1000 Mbps SFP slots | PoE Output: Ports 1–4 support 802.3af/at/bt up to 90 W; ports 5–16 support 802.3af/at up to 30 W | Operating Temperature: -30°C to 65°C
Key Features
- · Provides 16 Gigabit PoE Ethernet ports for network and powered device connectivity
- · Includes two 1000 Mbps SFP slots for fiber uplink connections
- · Ports 1–4 support IEEE 802.3af/at/bt PoE up to 90 W per port
- · Ports 5–16 support IEEE 802.3af/at PoE up to 30 W per port
- · Supports wall, magnetic wall, and DIN-rail mounting
- · Monitors temperature and humidity and sends remote cloud alarm notifications when thresholds are exceeded
- · Automatic port anti-loop function helps maintain network continuity
- · Supports real-time alarm notifications for easier maintenance
- · ONVIF support enables automatic identification of compatible IP cameras
- · Link aggregation increases available network bandwidth and connection reliability
Technical Context
The switch separates PoE delivery into two power classes: ports 1–4 can provide up to 90 W for higher-power devices, while ports 5–16 provide up to 30 W for standard PoE and PoE+ equipment. Automatic anti-loop helps prevent network interruptions, and link aggregation combines multiple links to increase bandwidth and improve connection reliability. Temperature and humidity monitoring provides cloud-based alerts for proactive maintenance.
Installation Notes
The flat enclosure supports wall, magnetic wall, or DIN-rail installation for flexible deployment in CCTV, office, and industrial environments. Install the switch where the ambient temperature remains between -30°C and 65°C, and ensure that connected PoE devices are matched to the appropriate port power class.
| General | |
| Model | WI-PCES310GF-F |
| Interfaces | |
| Downlink Ports | 8 × 10/100/1000 Mbps RJ45 ports |
| Uplink Ports | 2 × 1000 Mbps SFP slots |
| PoE | |
| PoE Ports | Ports 1–8 |
| PoE Standard | Ports 1–2: IEEE 802.3af/at/bt Ports 3–8: IEEE 802.3af/at |
| PoE Power Supply Type | Mid-span and End-span |
| PoE Pin Assignment | 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-) |
| PoE Power | 90 W max. for ports 1–2 30 W max. for ports 3–8 355 W max. total PoE power budget |
| Performance | |
| Flash Memory | 4 MB |
| Standards and Protocols | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.1q IEEE 802.1x IEEE 802.1p IEEE 802.3af IEEE 802.3at IEEE 802.3bt |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 1.5 Mbit |
| Jumbo Frame | 9,216 bytes |
| Power Supply | |
| Input Power | DC 48–57 V / 6 A max. |
| Power Consumption | Idle: 5 W 100% traffic rate with PoE: 360 W |
| LED Indicators | |
| SYS | Blinking: system operating normally Off: system starting or abnormal |
| PoE | Orange on: PoE powered device connected and supplied successfully Off: no PoE powered device connected |
| Link | Green on: port connected Off: port disconnected Blinking: data transmission |
| SFP Indicators | Solid on: port connected Blinking: data transmission Off: port disconnected |
| P1/P2/P3 | On: device power is normal Off: device is powered off or has failed |
| Physical Characteristics | |
| Reset Button | Hold for more than 5 seconds to restore the factory default configuration |
| Fan Quantity | Fanless |
| Switch Dimensions | 180 × 140 × 25 mm |
| Package Dimensions | 307 × 291 × 69 mm |
| Net Weight | 0.40 kg |
| Package Weight | 0.65 kg |
| Installation | DIN-rail, wall-mounted, magnetic-mounted |
| Reliability | |
| Surge Immunity | IEC 61000-4-5 Common mode: 6 kV Differential mode: 4 kV |
| ESD Protection | IEC 61000-4-2 Contact discharge: 6 kV Air discharge: 8 kV |
| Environmental | |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) |
| Operating Humidity | 10%–90% RH, non-condensing |
| Storage Temperature | -40°C to 80°C (-40°F to 176°F) |
| Storage Humidity | 10%–90% RH, non-condensing |
| Certifications | |
| Certifications | CE, FCC, RoHS, UKCA, RCM |
