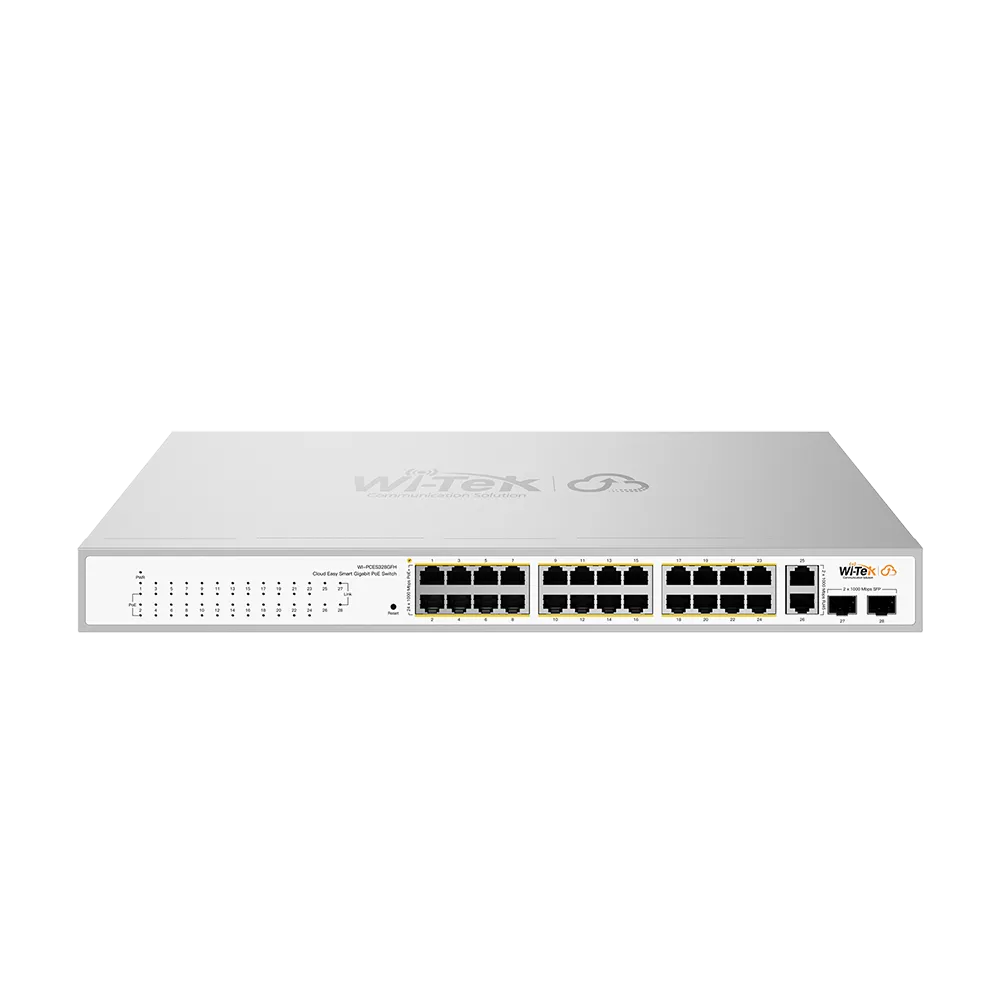

Wi-Tek - WI-PCES328GFH - 1000Mbps Cloud Easy Smart PoE/ Ethernet Switch

Product Overview

This Wi-Tek 1000Mbps Cloud Easy Smart PoE/Ethernet Switch is designed for high-density Gigabit PoE access deployments that require cloud-based monitoring, remote configuration, fiber uplinks, and smart network protection features. It provides twenty-four 1000Mbps PoE+ ports, two 1000Mbps Ethernet uplink ports, two 1000Mbps SFP slots, IEEE 802.3af/at PoE output up to 30W per port, and a total PoE power budget of up to 245W.

Key Configuration

Product Type: 1000Mbps Cloud Easy Smart PoE/Ethernet Switch | PoE Ports: 24 x 1000Mbps PoE+ | Uplink Ports: 2 x 1000Mbps Ethernet | SFP Slots: 2 x 1000Mbps | PoE Standard: IEEE 802.3af/at | PoE Output: Up to 30W on ports 1-24 | Total PoE Budget: Up to 245W | Network Features: Automatic Anti-Loop, Link Aggregation, QoS, IGMP Snooping | Camera Discovery: ONVIF Support | Management: Wi-Tek Cloud

Key Features

 · Provides twenty-four 1000Mbps PoE+ ports for powered network devices

 · Includes two 1000Mbps Ethernet uplink ports for network connectivity

 · Includes two 1000Mbps SFP slots for fiber uplink connectivity

 · Ports 1-24 support IEEE 802.3af/at PoE output up to 30W

 · Total PoE power budget of up to 245W supports high-density PoE deployments

 · Port automatic anti-loop helps maintain network continuity

 · Alarm notifications support real-time maintenance

 · ONVIF support helps automatically identify connected IP cameras

 · Link aggregation helps increase network bandwidth and reliability

 · QoS support helps high-priority services operate normally

 · IGMP Snooping helps prevent Layer 2 multicast flooding and improve network performance

 · Wi-Tek Cloud management enables real-time monitoring and remote configuration

Technical Context

This switch is intended for managed Gigabit PoE access networks where many IP cameras, access points, or other PoE devices require power and data over Ethernet. The Ethernet uplink ports and SFP slots provide flexible upstream connectivity through copper or fiber links.

Cloud management, ONVIF camera discovery, automatic anti-loop, link aggregation, QoS, IGMP Snooping, and alarm notifications help improve remote visibility, network reliability, multicast handling, and service prioritization in surveillance and network edge deployments.

Installation Notes

This Cloud Easy Smart PoE/Ethernet switch is suitable for high-density Gigabit PoE access deployments requiring fiber uplink options and remote cloud management. PoE planning should account for the total 245W power budget and the 30W maximum output available on ports 1-24.
