Wi-Tek - WI-PCMS306GF-I V2 - Cloud L2+ Industrial PoE+ Switch
Product Overview

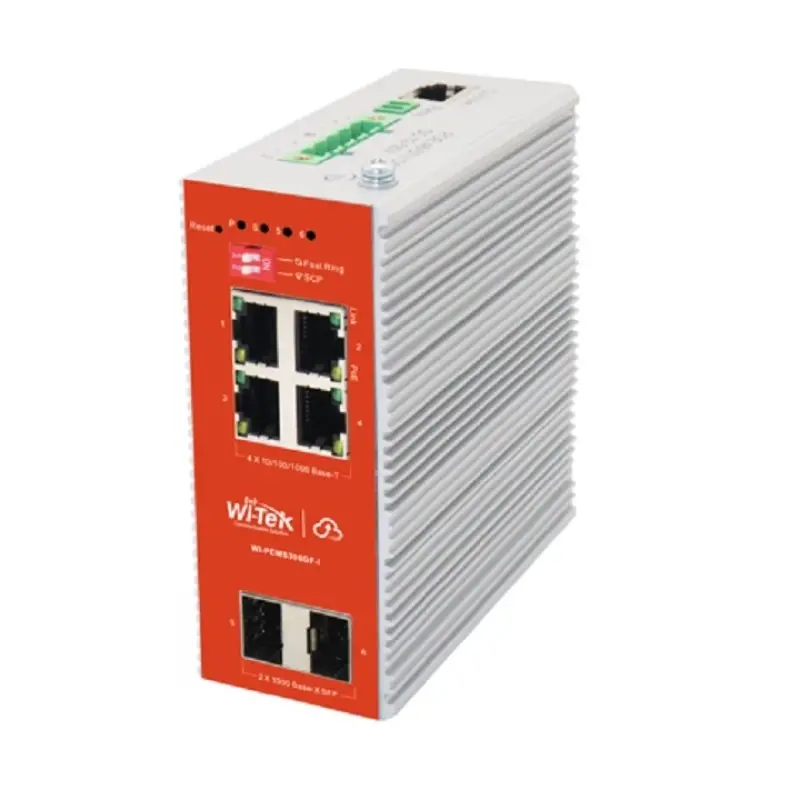

The Wi-Tek WI-PCMS306GF-I V2 is a Cloud L2+ managed industrial PoE switch with four 10/100/1000 Mbps Base-T PoE+ ports and two 10/100/1000 Mbps Base-X SFP ports. It is designed for IP video surveillance, wireless network coverage, and industrial applications, with ONVIF camera integration, cloud-based management, a wide -40°C to 75°C operating temperature range, and protection against surges and ESD.
Key Configuration
Model: WI-PCMS306GF-I V2 | Type: Cloud L2+ managed industrial PoE switch | PoE Ports: 4 × 10/100/1000 Mbps Base-T PoE+ ports | Uplink Ports: 2 × 10/100/1000 Mbps Base-X SFP ports | Protection: 6 kV surge immunity and 8 kV ESD protection
Key Features
- · Cloud L2+ managed industrial Ethernet switch design
- · Four 10/100/1000 Mbps Base-T PoE+ ports provide flexible device connectivity
- · Two 10/100/1000 Mbps Base-X SFP ports support fiber uplink connections
- · Ports 1–4 support IEEE 802.3af/at PoE standards
- · 10/100/1000 Mbps speeds support connections from Fast Ethernet to Gigabit Ethernet
- · ONVIF support enables automatic identification of compatible IP cameras
- · Wi-Tek Cloud management and mobile app support remote maintenance
- · Operating temperature range from -40°C to 75°C supports harsh environments
- · 6 kV surge immunity helps protect the switch from electrical surges
- · 8 kV ESD protection supports reliable operation in demanding installations
Technical Context
The four PoE+ ports combine network connectivity and power delivery for compatible IP cameras and other powered devices. The two SFP ports provide fiber uplink options, while ONVIF support helps identify compatible cameras for CCTV deployments. Cloud L2+ management and mobile app access enable remote monitoring and maintenance of the network.
Installation Notes
The WI-PCMS306GF-I V2 is intended for IP video surveillance, wireless coverage, and industrial network installations in harsh environments. Ensure that the operating temperature remains within -40°C to 75°C and that connected devices use compatible IEEE 802.3af/at PoE standards.
| General | |
| Model | WI-PCMS306GF-I |
| Hardware Version | V2 |
| Interfaces | |
| Downlink Ports | 4 × 100/1000 Mbps RJ45 ports |
| Uplink Ports | 2 × 1000 Mbps SFP ports |
| Management Port | 1 × console port |
| PoE | |
| PoE Standard | 802.3af/at |
| PoE Ports | Ports 1–4 |
| PoE Type | End-span |
| PoE Power | 30 W per port 120 W total budget |
| PoE Pin Assignment | 1/2 (-), 3/6 (+) |
| Network Performance | |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q, IEEE 802.1d, IEEE 802.1x, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt (BT model) |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 12 Gbps |
| Packet Forwarding Rate | 8.93 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4.1 Mbit |
| Jumbo Frame | 10 KB |
| Power Supply | |
| Input Power | Power 1 (Main): 48–57 V DC Power 2 (Backup): 48–57 V DC |
| Power Consumption | Idle: 2 W Full load + PoE: 122 W |
| Physical Characteristics | |
| LED Indicators | P: Power (On/Off) S: System (Blinking = OK) Link (Green): Link/Activity PoE (Yellow): PoE active Fiber Ports: Green on / blinking for TX/RX |
| Reset Button | Hold for more than 5 seconds to restore the factory default configuration |
| DIP Switch | Fast Ring: One-key ring enable SCP: Broadcast storm suppression |
| Fan Quantity | Fanless |
| Switch Dimensions | 110 × 92 × 46 mm |
| Package Dimensions | 234 × 190 × 86 mm |
| Installation | Desktop, DIN-rail |
| Reliability | |
| Surge Immunity | IEC 61000-4-5: 6 kV common mode, 2 kV differential mode |
| ESD Protection | IEC 61000-4-2: 6 kV contact discharge, 8 kV air discharge |
| Environmental | |
| Operating Environment | -40°C to 75°C; 5%–95% RH |
| Storage Environment | -40°C to 85°C; 0%–95% RH |
| Certifications | |
| Certifications | CE, FCC, RoHS, UKCA, RCM |
