Wi-Tek - WI-PCMS310GF-Alien-I - Gigabit 24/ 48V Mixed PoE Industrial Switch

Product Overview

The Wi-Tek WI-PCMS310GF-ALIEN-I is a Cloud L2+ managed industrial mixed PoE switch designed for demanding access and aggregation deployments that require Gigabit PoE, 24V passive PoE compatibility, fiber uplinks, environmental monitoring, and cloud-based management. It provides eight 1000Mbps RJ45 PoE ports, two 1000Mbps SFP slots, three power inputs, wide DC input support, and industrial-grade protection for harsh environments.

Key Configuration

Model: WI-PCMS310GF-ALIEN-I | Product Type: Cloud L2+ Managed 24V/48V Mixed PoE Industrial Switch | PoE Ports: 8 x 1000Mbps RJ45 | SFP Slots: 2 x 1000Mbps | PoE Output: Ports 1-2 support Hi-PoE up to 60W or 24V Passive PoE; ports 3-8 support 802.3af/at up to 30W or 24V Passive PoE | Power Input: Three power inputs, DC3 supports 9V to 52V wide DC input | Monitoring: Digital Input, Relay, Temperature/Humidity Sensing | Operating Temperature: -40°C to 75°C | Protection: 6kV surge immunity, 15kV ESD protection | L2 Features: STP, RSTP, MSTP, IGMP Snooping | Management: Web, CLI via Console Port/Telnet/SSH, SNMP, RMON, Wi-Tek Cloud

Key Features

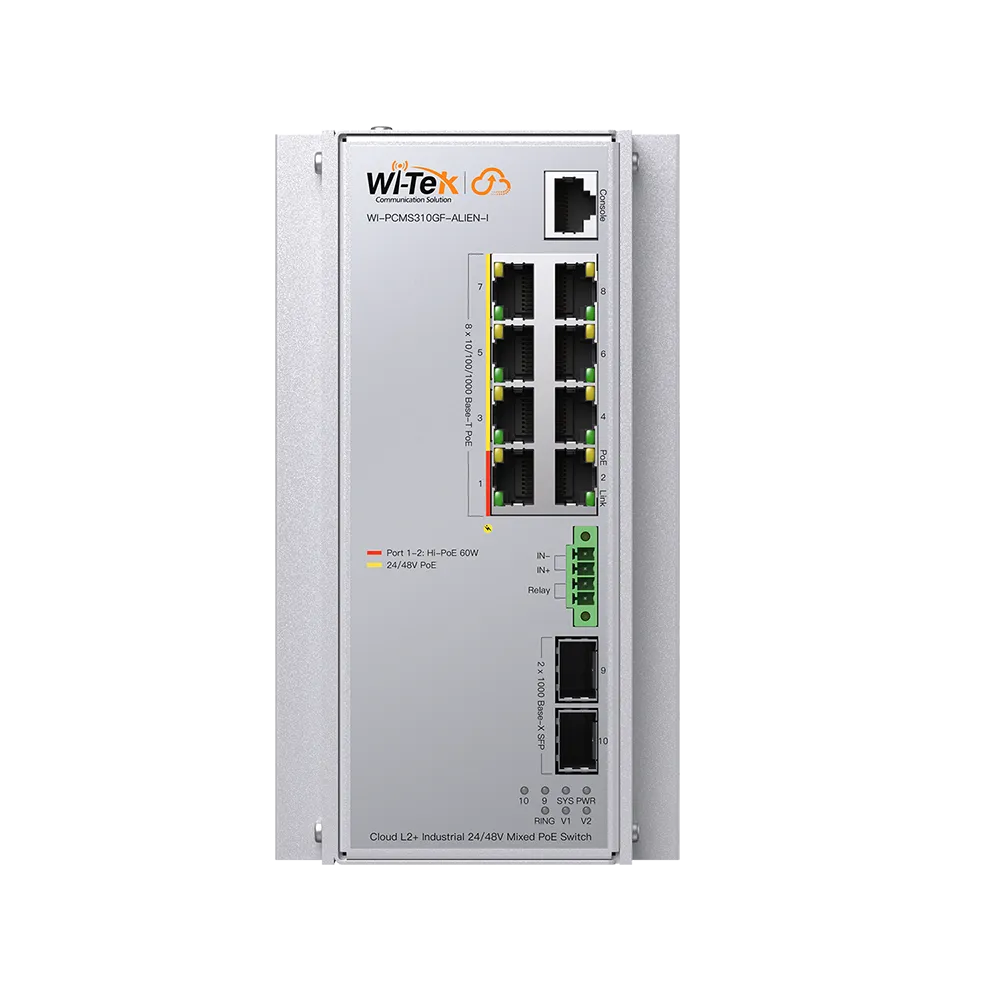

 · Provides eight 1000Mbps RJ45 PoE ports for powered industrial network devices

 · Includes two 1000Mbps SFP slots for fiber uplink connectivity

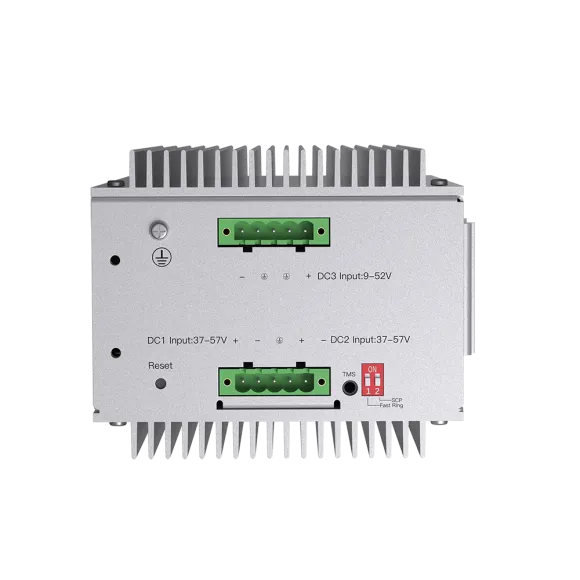

 · Supports three power inputs for flexible and resilient power design

 · DC3 supports wide 9V to 52V DC input

 · Ports 1-2 support Hi-PoE output up to 60W or 24V passive PoE

 · Ports 3-8 support IEEE 802.3af/at PoE output up to 30W or 24V passive PoE

 · Integrated digital input and relay support device status monitoring and control

 · Temperature and humidity sensing support environmental monitoring

 · Wide -40°C to 75°C operating temperature range supports harsh industrial environments

 · 6kV surge immunity and 15kV ESD protection enhance electrical resilience

 · STP, RSTP, MSTP, and IGMP Snooping help protect Layer 2 network stability

 · Supports Web, CLI, Console Port, Telnet, SSH, SNMP, and RMON management

 · Wi-Tek Cloud management enables real-time monitoring and remote configuration

Technical Context

This switch is intended for industrial networks where both standard PoE and 24V passive PoE devices may need to operate from the same access platform. Its Gigabit RJ45 ports and SFP uplinks support camera, wireless, industrial IoT, and aggregation applications requiring reliable wired and fiber connectivity.

Integrated digital input, relay output, and temperature/humidity sensing allow the switch to support device status and environmental monitoring, while STP/RSTP/MSTP and IGMP Snooping help improve Layer 2 reliability in managed network environments.

Installation Notes

The WI-PCMS310GF-ALIEN-I should be planned according to connected device PoE type, power input design, and environmental monitoring requirements. Confirm whether each endpoint requires standard 802.3af/at/Hi-PoE or 24V passive PoE before connection, and account for surge protection, grounding, fiber module selection, and cloud management access during installation.
