Product Overview

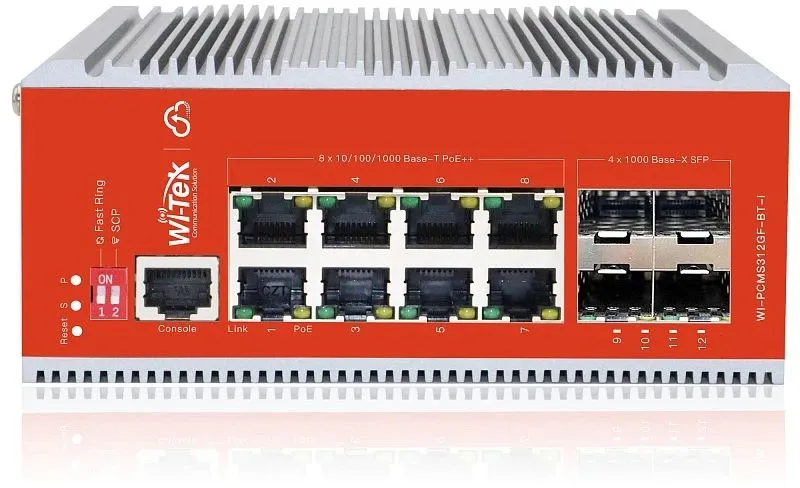

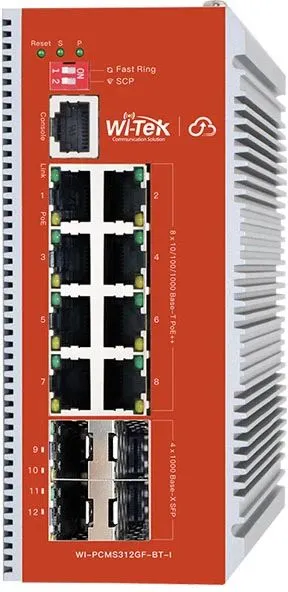

The Wi-Tek WI-PCMS312GF-BT-I is an industrial managed L2 PoE switch designed for enterprise networks, IP video surveillance, business Wi-Fi, and industrial infrastructure. It provides eight Gigabit PoE ports with IEEE 802.3af/at/bt support, four Gigabit SFP uplink ports, a console port, and a PoE budget of up to 460 W for high-power network devices.
Key Configuration
Model: WI-PCMS312GF-BT-I | PoE Ports: 8 × 10/100/1000 Base-T PoE ports | Uplink Ports: 4 × 1000 Base-X SFP ports | Management: 1 × console port; Web, CLI, SNMP, Telnet, and Wi-Tek Cloud 2.0 | PoE Budget: Up to 460 W, up to 90 W per port | Protection: IP30, -40°C to 75°C, and dual 48–57 V DC power input
Key Features
- · Eight 10/100/1000 Base-T ports support Gigabit Ethernet connectivity
- · All eight RJ45 ports support IEEE 802.3af/at/bt PoE standards
- · Provides up to 90 W of PoE power per port
- · Offers a total PoE power budget of up to 460 W
- · Four 1000 Base-X SFP ports support optical uplinks in ring, tree, or mixed network topologies
- · Includes one console port for local device management
- · Supports VLAN, QoS, IGMP Snooping, DHCP Snooping, STP/RSTP/MSTP, Link Aggregation, ACL, Storm Control, and ERPS
- · Can be managed through Web, CLI, SNMP, Telnet, and Wi-Tek Cloud 2.0
- · IP30-rated industrial housing supports DIN-rail or wall installation
- · Redundant dual 48–57 V DC power input supports reverse-polarity, over-voltage, and over-current protection
Technical Context
The switch combines high-power PoE++ connectivity with Gigabit fiber uplinks for PTZ cameras, business Wi-Fi access points, IP speakers, intercoms, and other compatible powered devices. L2 management functions support traffic segmentation, loop prevention, multicast handling, quality of service, access control, link aggregation, and industrial ring redundancy. Wi-Tek Cloud 2.0 enables centralized remote management alongside local Web, CLI, SNMP, and Telnet access.
Installation Notes

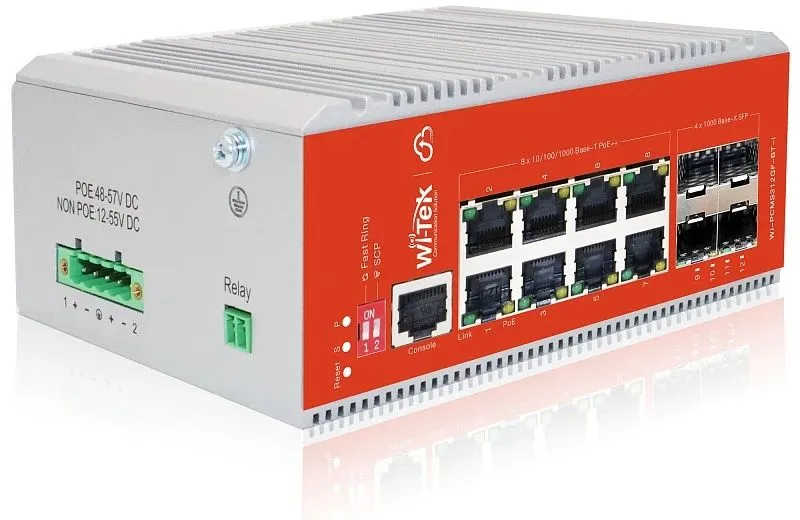

The WI-PCMS312GF-BT-I is designed for industrial, transportation, roadway, factory, park, corporate, and IP surveillance applications. Mount the IP30-rated switch on a DIN rail or wall, connect one or two independent 48–57 V DC power sources as required, and keep the operating temperature within -40°C to 75°C.
| General | |
| Model | WI-PCMS312GF-BT-I |
| Hardware Version | V3 |
| Interfaces | |
| Downlink Ports | 8 × 10/100/1000 Mbps RJ45 ports |
| Uplink Ports | 4 × 1000 Mbps SFP ports |
| Management Port | 1 × console port |
| PoE | |
| PoE Ports | Ports 1–8 |
| PoE Standard | IEEE 802.3af/at/bt |
| PoE Pin Assignment | 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-) |
| PoE Power | 90 W max. per port 460 W max. total PoE power budget |
| Switch Properties | |
| Standards and Protocols | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.1x IEEE 802.1q IEEE 802.1p IEEE 802.1d IEEE 802.1s IEEE 802.1w IEEE 802.1ab IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3az IEEE 802.3bt |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 24 Gbps |
| Packet Forwarding Rate | 17.86 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 10 KB |
| Memory | 128 MB |
| Flash Memory | 32 MB |
| Power Supply | |
| Input Power | Power 1 (Main): 48–57 V DC Power 2 (Backup): 48–57 V DC |
| Power Consumption | Idle: 15 W 100% traffic rate with PoE: 475 W |
| LED Indicators | |
| System Indicators | P (Green): Steady on - normal power; Off - device powered off or failed S (Green): Off - system initialization; Blinking - system operating normally |
| Link Indicators | Green: Steady on - port link up; Blinking - TX/RX data transmission; Off - port link down |
| PoE Indicators | Orange: Steady on - PoE working; Off - PoE not working |
| SFP Port Indicators | Green: Steady on - port link up; Blinking - TX/RX data transmission; Off - port link down |
| Physical Characteristics | |
| Reset Button | Hold for more than 5 seconds to restore the factory default configuration |
| Fan Quantity | Fanless |
| Switch Dimensions | 66 × 109 × 143.5 mm |
| Package Dimensions | 234 × 190 × 86 mm |
| Net Weight | 1.2 kg |
| Package Weight | 1.55 kg |
| Installation | Desktop, DIN-rail, wall-mounted |
| Reliability | |
| Surge Immunity | IEC 61000-4-5 Common mode: ±6 kV Differential mode: ±2 kV |
| ESD Protection | IEC 61000-4-2 Contact discharge: ±6 kV Air discharge: ±8 kV |
| Environmental | |
| Operating Environment | -40°C to 75°C; 5%–95% RH, non-condensing |
| Storage Environment | -40°C to 85°C; 0%–95% RH, non-condensing |
| Certifications | |
| Certifications | CE, FCC, RoHS, UKCA, RCM |
