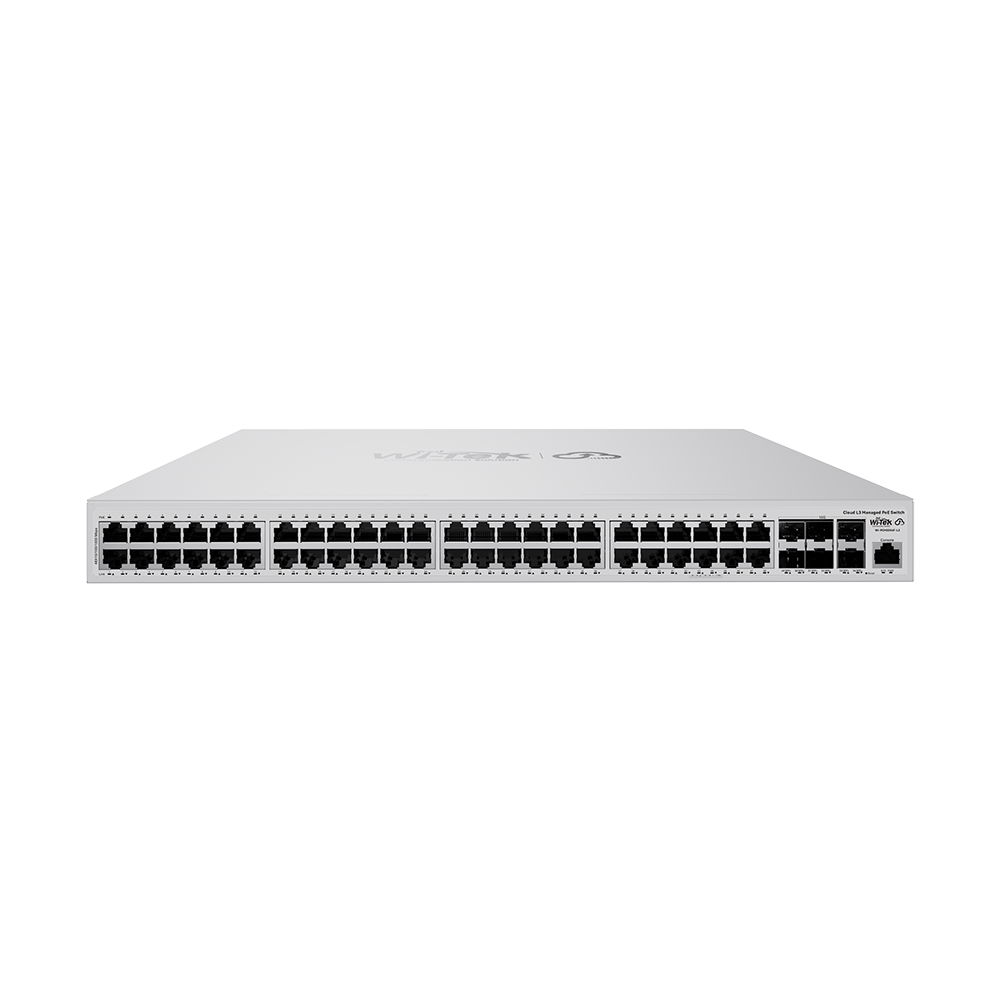

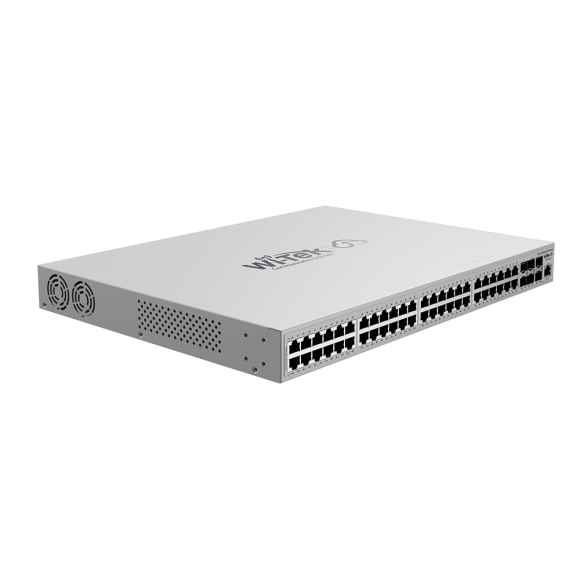

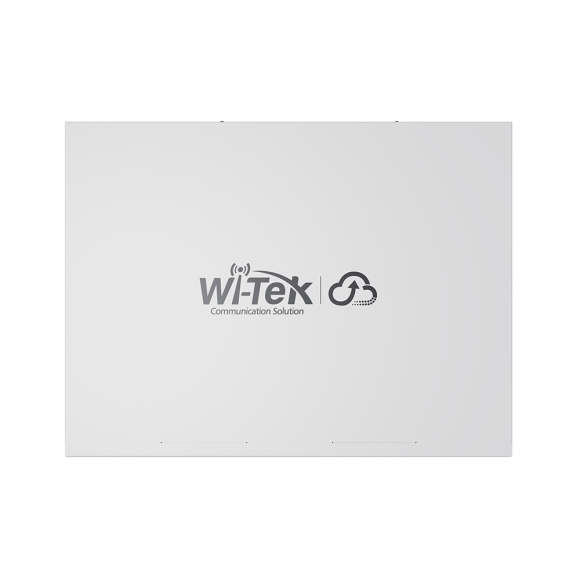

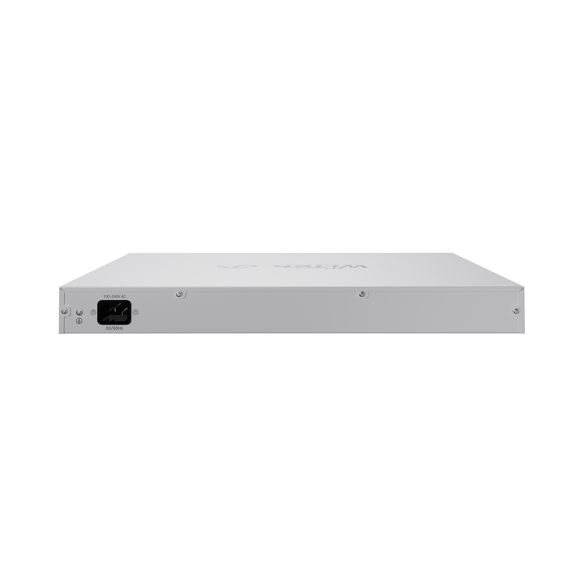

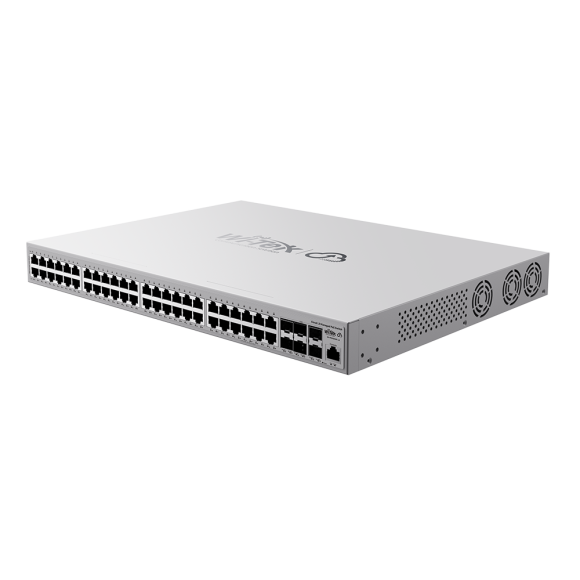

Wi-Tek - WI-PCMS554F-L3 V2 - Cloud L3 Managed PoE Switch

Product Overview

This Wi-Tek Cloud L3 Managed PoE Switch is designed for aggregation and core network deployments that require high-density Gigabit PoE access, 10Gbps fiber uplinks, Layer 3 routing, advanced security, and cloud-based maintenance. It provides twenty-four 1000Mbps PoE+ RJ45 ports, four 10Gbps SFP+ slots, and a total PoE power budget of up to 385W.

Key Configuration

Product Type: Cloud L3 Managed PoE Aggregation/Core Switch | PoE Ports: 24 x 1000Mbps RJ45 | SFP+ Slots: 4 x 10Gbps | PoE Standard: IEEE 802.3af/at | PoE Output: Up to 30W on ports 1-24 | Total PoE Budget: Up to 385W | L3 Features: Static Routing, RIP, OSPF, DHCP Server/Relay | Security: ACL, DoS Defend, DHCP Snooping, 802.1X, IP-MAC-Port Binding | Management: Web, CLI, Telnet, SNMP, RMON, Cloud Management

Key Features

 · Provides twenty-four 1000Mbps PoE+ RJ45 ports for powered network devices

 · Includes four 10Gbps SFP+ slots for high-speed fiber uplinks

 · Ports 1-24 support IEEE 802.3af/at PoE output up to 30W

 · Total PoE power budget of up to 385W supports high-density PoE deployments

 · L3 features include Static Routing, RIP, OSPF, and DHCP Server/Relay

 · Security functions include ACL, DoS Defend, DHCP Snooping, 802.1X, and IP-MAC-Port Binding

 · Rich QoS policies support flexible resource allocation

 · Multiple VLAN protocols help separate traffic and improve network reliability

 · Supports Web, CLI, Telnet, SNMP, and RMON management

 · Cloud management enables easy and flexible remote maintenance

Technical Context

This switch is intended for managed aggregation and core roles where many PoE endpoints must be connected to a high-speed backbone. The twenty-four Gigabit PoE+ ports support IP cameras, access points, and other powered devices, while the four 10Gbps SFP+ slots provide uplink capacity for larger networks.

Layer 3 routing, VLAN protocols, QoS policies, and security controls help segment traffic, prioritize services, and protect the network in enterprise, surveillance, campus, and multi-device infrastructure deployments.

Installation Notes

This Cloud L3 managed switch is suitable for high-density PoE access, aggregation, and core network installations. PoE planning should account for the total 385W power budget and the 30W maximum output available on ports 1-24.
