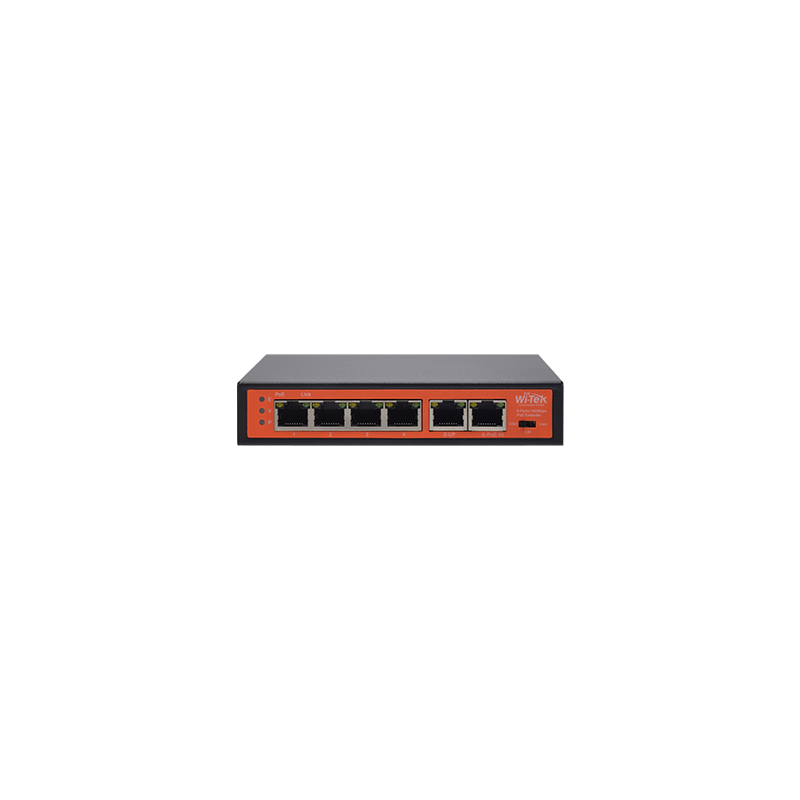

4FE PoE Output+1FE PoE Input +1FE Uplink port PoE Extender
Features:
- PoE in port: 1*100Mbps PoE port with 802.3bt 60W
- DC input port: 48-55V
- PoE output port: 4*100Mbps PoE port with 802.3af/at 30W
- 1*100Mbps Ethernet port
- 250m long distance for PoE ports via extend mode
- Port isolation for security via VLAN mode
- Support desktop mount
- Plug and play, zero configuration
- Cost-effective to extend your network
HARDWARE FEATURES | WI-PE51E |
Interface | PoE in port： 1 x 100Mbps PoE port with 802.3bt 60W DC in port: 48-55V PoE out port: 4 x 100Mbps PoE port with 802.3af/at 30W 1 x 100Mbps PoE port |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m)EIA/TIA-568 100Ω STP (Max 100m) |
Fan Quantity | Fanless |
PoE PIN | PoE IN: 4/5(+) 7/8(-)or 1/2(+) 3/6(-) PoE OUT: 4/5(+) 7/8(-)or 1/2(+)3/6(-) |
LED Indicator | PWR, Link |
DIP Switch | Default/Extend/VLAN |
250m Long Distance | Default/Extend/VLAN |
Transmission Method | Store-And-Forward |
Advanced Functions | Mac Address Auto-Learning And Auto-Aging Store and forward IEEE 802.3x flow control for Full-duplex Mode Backpressure for Half-duplex Mode |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Dimension | 190×93×34mm |
Switch Dimension | 142×82×28mm |
Gross Weight | 0.32kg |
Net Weight | 0.28kg |
Operating Temperature | -10°C~55°C |
Package Contents | 1 x PoE Extender 1*Installation Guide |
