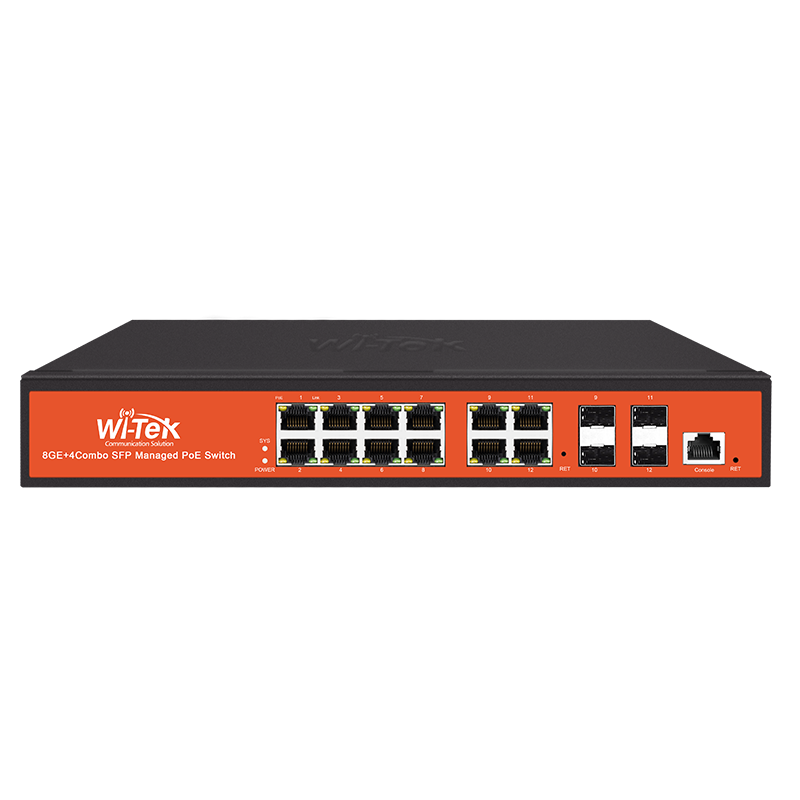

Wi-Tek - WI-PMS312GF - 8GE+4Combo SFP Full Giga 802.3af/at Managed PoE Switch with 8Port PoE (Project model Delivery time 3weeks)
Part number:
WI-PMS312GF
Price:
8GE+4Combo SFP Full Giga 802.3af/at Managed PoE Switch with 8Port PoE (Project model Delivery time 3weeks)
Features:
- 8GE+4Combo SFP Full Giga 802.3af/at Managed PoE Switch with 8Port PoE
- Supports PoE power up to 30W for each port
- Supports PoE IEEE 802.3af/at compliant PDs
- Internal power adapter supply 150W
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
- Support QVLAN,QoS and IGMP snooping optimize voice and video application
| Hardware Specifications | |||
| Interface | 8x10/100/1000Mbps RJ45 Ports | ||
| 4x1000Mbps combo SFP Slots | |||
| 1xConsole Port | |||
| Port Standard | IEEE 802.3 i:10BASE-T Ethernet; | ||
| IEEE 802.3 u:100BASE-X Fast Ethernet; | |||
| IEEE 802.3ab:1000BASE-T Gigabit Ethernet; | |||
| IEEE 802.3z:1000BASE-X Gigabit Ethernet(Optical fiber) | |||
| PoE | PoE Standard | 802.3af/at | |
| PoE Ports | 8 up to 30W | ||
| PoE Power Budget | 150W | ||
| Power Supply | AC 110~240V 50/60HZ | ||
| Switching Capacity | 24Gbps | ||
| Packet Forwarding Rate | 17.9Mpps | ||
| Jumbo Frame | 16KB | ||
| MAC Address Table | 8K | ||
| Dimensions ( W x D x H ) | 295mm*195mm*45mm | ||
| Fan Quantity | Fanless | ||
| Protection Level | Common Mode ± 6KV, Differential Mode ± 4KV | ||
| Electrostatic Standard | Contact 6KV Air 8KV | ||
| Transmission Mode | Store— Forward | ||
| Installation | Desktop | ||
| Software Features | |||
| Spanning Tree | IEEE 802.1D - STP | ||
| IEEE 802.1w - RSTP | |||
| IEEE 802.1s - MSTP | |||
| Port Loop Detection | |||
| EAPS | |||
| Reliability | ERPS | ||
| LLDP/LLDP-MED | |||
| UDLD | |||
| VLAN | Max 4K VLAN Groups | ||
| 802.1q Tagged VLAN | |||
| MAC-Based VLAN | |||
| IP-Based VLAN | |||
| QinQ | |||
| Protocol- Based VLAN | |||
| Voice VLAN | |||
| Port | LACP | ||
| Port Shutdown | |||
| Jumbo Frame | |||
| Port mirroring( One-to-One Many-to-One Tx/Rx/Both) | |||
| Link Aggregation( Up to 8 aggregation groups and up to 8 ports per group) | |||
| Security | IP-MAC-Port Binding | ||
| IEEE802.1x AAA | |||
| Support Static and Dynamic ARP | |||
| RADIUS/TACACS+ | |||
| RADIUS | |||
| Port Isolation | |||
| Port Based Authentication | |||
| Secure Command Line Interface (CLI) Management With SSHv1/SSHv2 | |||
| Broadcast/Multicast/Uni-cast Storm Control | |||
| Port MAC Address Filtering | |||
| DHCP Snooping | |||
| Access Control List | Standard IP-Based ACL | ||
| Extended IP Based ACL | |||
| MAC IP-Based ACL | |||
| MAC ARP-Based ACL | |||
| IPv6-Based ACL | |||
| ACL Port Filtering | |||
| Time-Based ACL | |||
| QOS | Port-Based (uplink and downlink traffic of a single port can be restricted) | ||
| 802.1p-Based Classification | |||
| Support WRR, SP, WFQ | |||
| DISC-Based Classification | |||
| ACL-Based Classification | |||
| L2 M ulticast | IGMP Snooping v1/v2/v3 | ||
| MLDS nooping | |||
| MVR | |||
| IPV6 | IPv4/IPv6 Dual Protocol Stack | ||
| IPv6 Neighbor Discovery | |||
| Support manual address configuration, stateless address auto-configuration and tasteful address configuration obtained through DHCPv6 client | |||
| IPv6 TFTP | |||
| IPv6 SNMP | |||
| ICMPv6 | |||
| IPv6 Path MTU Discovery | |||
| IPv6 SSH | |||
| Management | Web-Based GUI | ||
| Command Line Interface (CLI) through console port, telnet and SSH | |||
| SNMPv1/v2c/v3 Trap/Inform RMON (1, 2, 3, 9) groups | |||
| Password Recovery | |||
| SNTP | |||
| System Log | |||
| Traceroute | |||
| Ping | |||
| CPU Monitoring | |||
| Firmware Upgrade | |||
| Configuration Export/Import | |||
| Support SNTP Based IPv4 and IPv6 | |||
| DHCP/BOOTP Client | |||
| Others | |||
| Certfication | CE , FCC , RoHS | ||
| Package Contents | Gigabit Switch | ||
| Power Cord | |||
| Guide Book/Warranty Card | |||
| Environment | Operating Temperature: 0–40 ℃ | ||
| Storage Temperature: -40– 70 ℃ | |||
| Operating Humidity: 10– 90% RH non-condensing | |||
| Storage Humidity: 5– 90% RH non-condensing | |||
