Wi-Tek Power over Ethernet injectors provides different power and high-speed Ethernet data connection anywhere in your network infrastructure. Some of them come with industrial chipsets that can work at -40°C ~ 80°C harsh environments. Wi-Tek PoE injectors are protected by a high-quality metal shell to ensure a long service life. They have passed a series of strict tests and provid you with reliable performance.
Features:

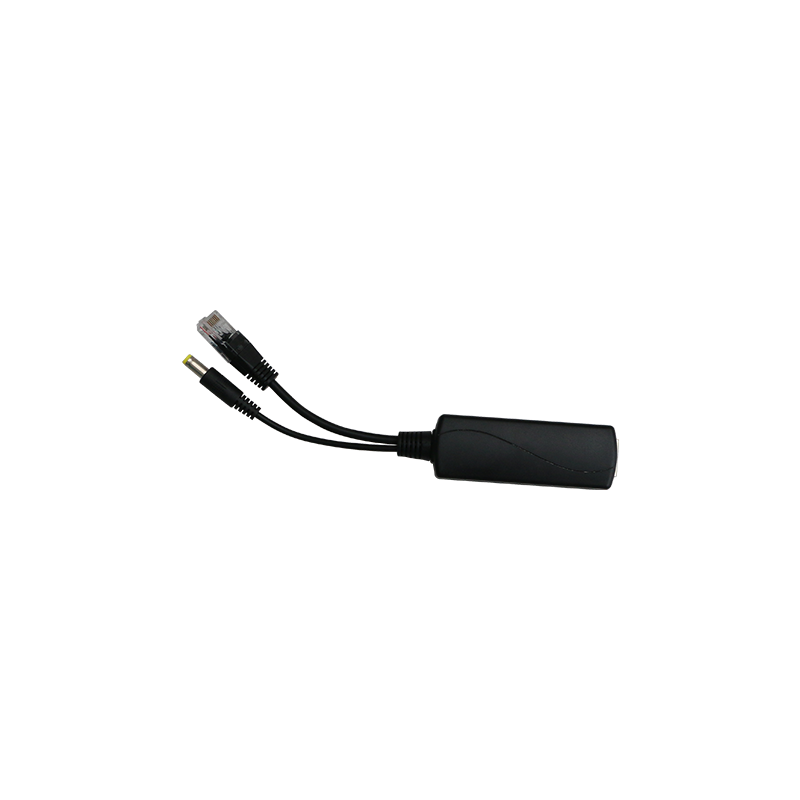

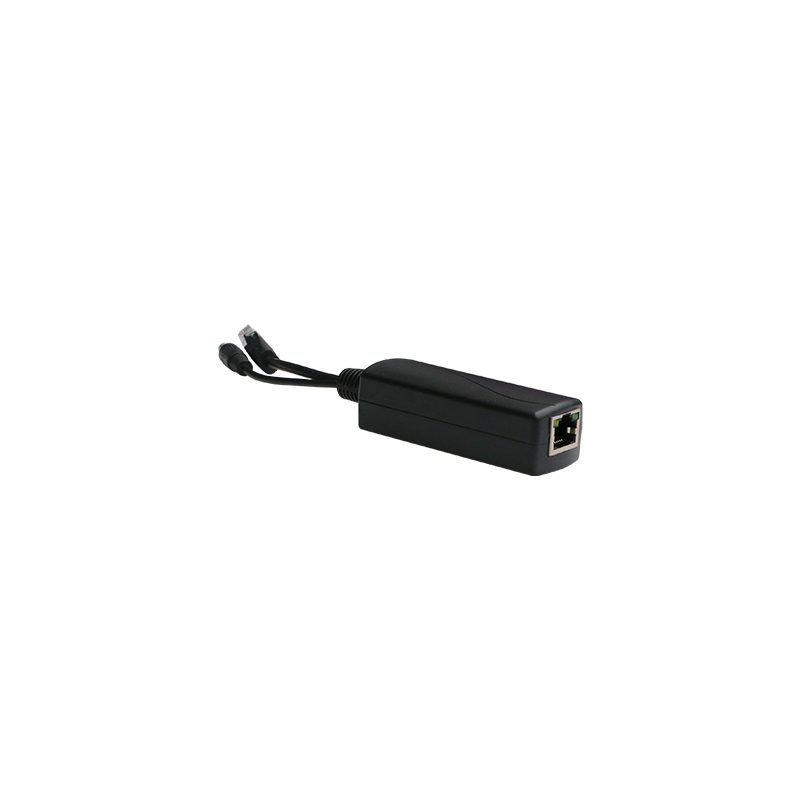

- Single 100Mbps fast PoE Splitter with 1*RJ45 Port
- DC output 12V 1A
- 48V PoE IN Comply to IEEE802.3af/at
- Support camera, wireless AP, and IP phone etc.
- All ports support wire speed switch, jumbo frame transmission.
- Support 802.3af/at PoE device
- Plug and play, self-adaption.
- Built-in high performance chip and high specification circuit board
| HARDWARE FEATURES | WI-POE11S-48V |
| Interface | 1 10/1000Mbps PoE RJ45 Port |
| 1 10/1000Mbps Ethernet Port | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) |
| EIA/TIA-568 100Ω STP (Max 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (Max 100m) | |
| EIA/TIA-568 100Ω STP (Max 100m) | |
| Power Supply | 48V PoE IN |
| Data In/Out | 1 10/1000Mbps Data Out |
| Power In/Out Port | 12V DC Out |
| PoE PIN | 4/5(+) 7/8(-) or 1/2(+) 3/6(-) |
| PoE Consumption | 48V 24W |
| LED Indicator | Power/Link |
| DIP Switch | N/A |
| Fan Quantity | Fanless |
| Background Bandwidth | 2Gbps |
| Transmission Method | Store-And-Forward |
| Protection Level | 6kV Lightning protection |
| 6kV ESD Contact discharge | |
| Advanced Functions | Mac Address Auto-Learning And Auto-Aging |
| Store and forward | |
| IEEE 802.3x flow control for | |
| Full-duplex Mode | |
| Backpressure for Half-duplex Mode | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| DeviceDimension | 209×20×20mm |
| Net Weight | 0.05kg |
| Package Contents | 1 x PoE Switch |
| 1 x Power Cord | |
| 1 x Quick Installation Guide | |
| Operating Temperature | -10°C~55°C |
