Product Overview

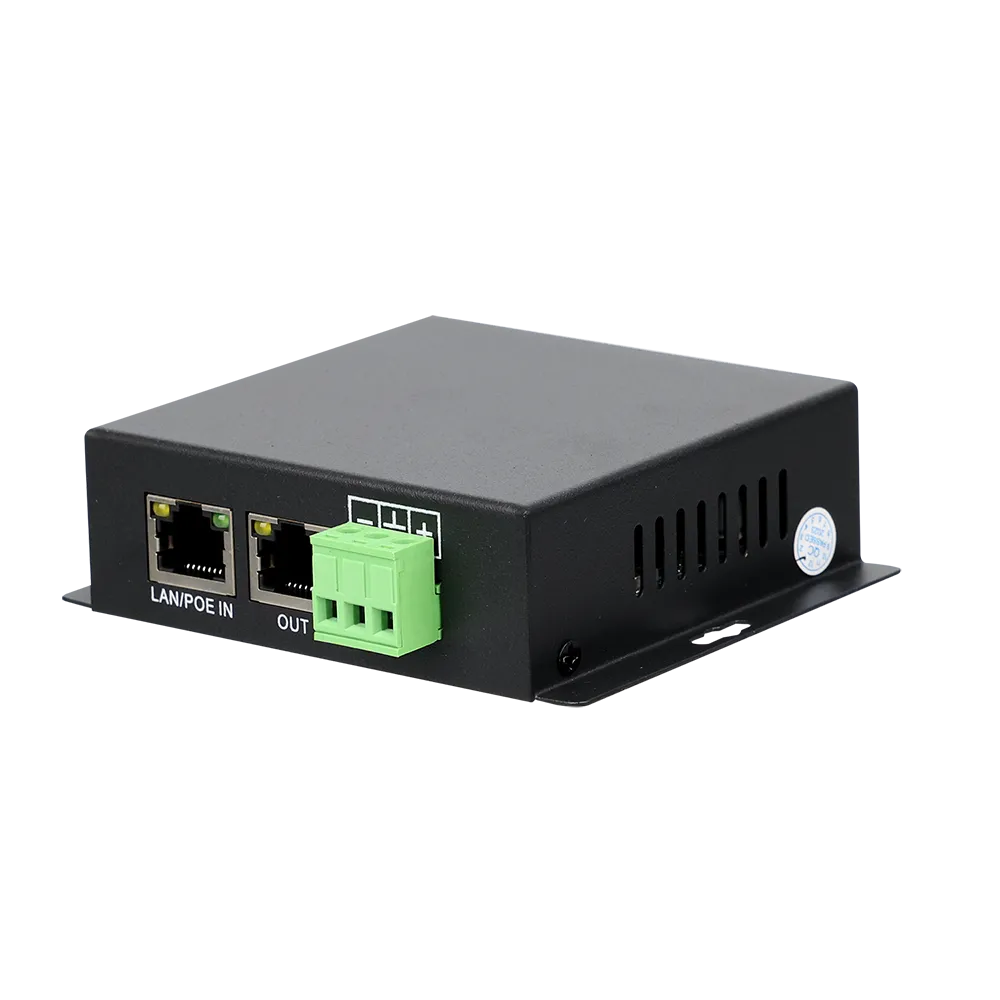

WI-POE31S is a compact Gigabit PoE splitter that receives power and data from an IEEE 802.3af/at PoE source and separates them into Ethernet data and 12 V DC output. It is designed to power non-PoE equipment such as access points, IP phones, and IP cameras where a local power connection is unavailable.
Key Configuration
Model: WI-POE31S | PoE Input: 1 x 100/1000 Mbps PoE port | Ethernet Output: 1 x 100/1000 Mbps RJ-45 port | PoE: IEEE 802.3af/at, 30 W max | DC Output: 12 V, 2 A max | Installation: Wall-mount or desktop
Key Features
- · Provides 1 x 100/1000 Mbps PoE input port
- · Provides 1 x 100/1000 Mbps Ethernet data output port
- · Supports IEEE 802.3af/at PoE with up to 30 W input power
- · Delivers 12 V DC output at up to 2 A
- · Separates PoE power and Ethernet data for non-PoE devices
- · Supports mid-span and end-span PoE power delivery
- · Supports 1/2 (+), 3/6 (-) or 4/5 (+), 7/8 (-) PoE pin assignment
- · Provides plug-and-play installation without configuration
- · Supports wall-mount or desktop installation
- · Provides 6 kV common-mode and 2 kV differential-mode surge immunity
Technical Context
The splitter extracts DC power from the PoE input and provides a separate 12 V output for equipment that does not have an integrated PoE interface. Its Gigabit Ethernet path preserves 100/1000 Mbps data connectivity between the upstream PoE switch and the connected terminal.
Installation Notes
The splitter measures 97 x 91 x 28 mm and weighs 0.17 kg. Connect the PoE input to a compatible IEEE 802.3af/at PSE, the Ethernet output to the network device, and the 12 V DC output to the non-PoE equipment. The operating temperature range is 0°C to 40°C with 10%-90% non-condensing humidity.
| General | |
| Model | WI-POE31S |
| Product Type | PoE Splitter |
| Hardware Version | V1 |
| Interfaces | |
| PoE Input Port | 1 × 100/1000 Mbps PoE RJ45 port |
| Data Output Port | 1 × 100/1000 Mbps Ethernet RJ45 port |
| PoE | |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Supply Type | Mid-span and End-span |
| PoE Pin Assignment | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
| PoE Power Budget | 30 W maximum |
| Power Supply | |
| Input Power | IEEE 802.3af/at PoE, 30 W |
| DC Output Power | 12 V DC, 2 A maximum |
| LED Indicators | |
| PoE Indicator | On: PoE power is received successfully Off: No PoE power supply is connected Blinking: Abnormal PoE power reception or abnormal DC output |
| Data Indicator | On: Data connection is successful Blinking: Data transmission Off: No device connected |
| Physical Characteristics | |
| Fan Quantity | Fanless |
| Splitter Dimensions (W × D × H) | 97 × 91 × 28 mm |
| Package Dimensions | 125 × 95 × 42 mm |
| Net Weight | 0.17 kg |
| Package Weight | 0.20 kg |
| Installation | Wall-mounted, desktop |
| Reliability and Environment | |
| Surge Immunity | IEC 61000-4-5 Common mode: 6 kV Differential mode: 2 kV |
| ESD Protection | IEC 61000-4-2 Contact discharge: 8 kV Air discharge: 10 kV |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90% relative humidity, non-condensing |
| Storage Temperature | -40°C to 75°C |
| Storage Humidity | 5% to 90% relative humidity, non-condensing |
| Certifications | |
| Certifications | CE, FCC, RoHS, UKCA, RCM |
| Package Contents | |
| Package Includes | PoE splitter × 1 |
