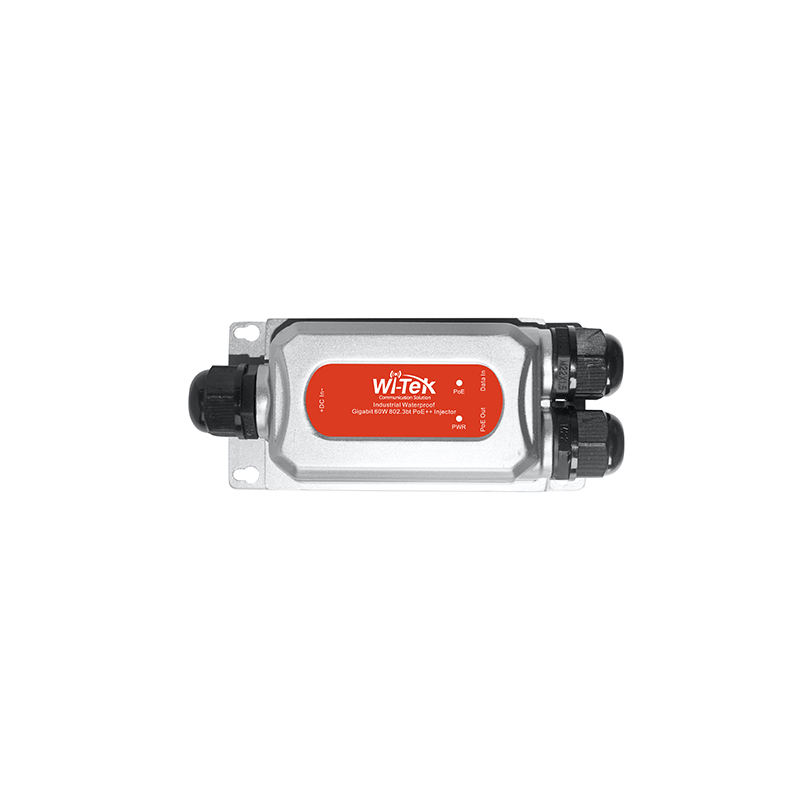

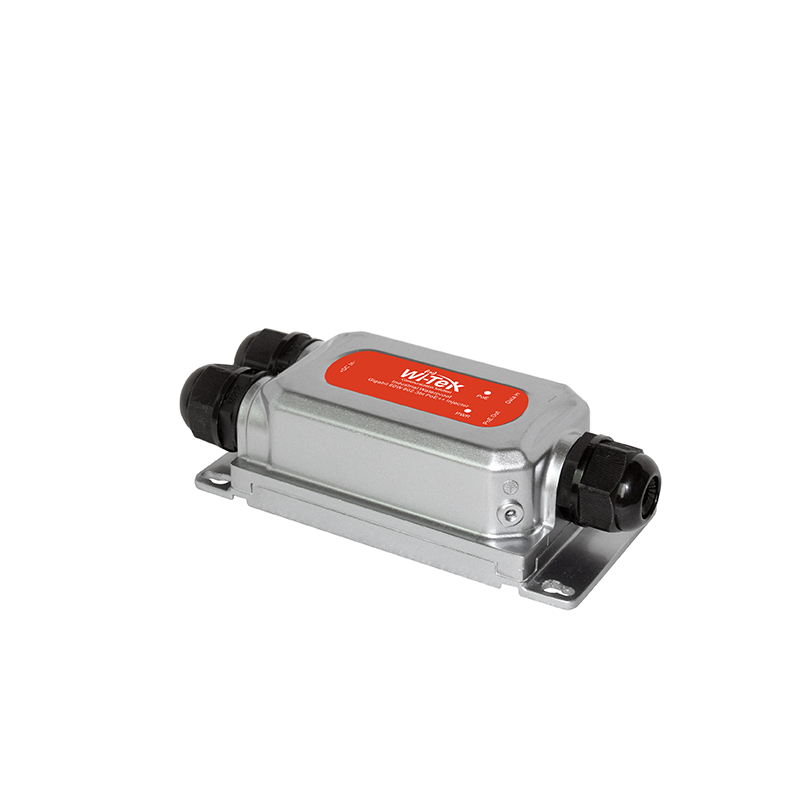

Wi-Tek - WI-POE56-60W-I-O - 2GE PoE Injector with 2*RJ45 Port (60W)
Wi-Tek - WI-POE56-60W-I-O - 2GE PoE Injector with 2*RJ45 Port (60W)
Wi-Tek - WI-POE56-60W-I-O - 2GE PoE Injector with 2*RJ45 Port (60W)
Wi-Tek - WI-POE56-60W-I-O - 2GE PoE Injector with 2*RJ45 Port (60W) Wi-Tek - WI-POE56-60W-I-O - 2GE PoE Injector with 2*RJ45 Port (60W)

Wi-Tek - WI-POE56-60W-I-O - 2GE PoE Injector with 2*RJ45 Port (60W)

Part number:
WI-POE56-60W-I-O
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications

2GE PoE Injector with 2*RJ45 Port (60W)



Features:

  • Data in port: 1 x 1000Mbps Ethernet port
  • Power in port: 1 x 24~56V/3A Max
  •  PoE out port:1 x 1000Mbps PoE port with 802.3bt 60W
  •  Operating Temperature: -40°C~80°C
  •  IP68 Waterproof Enclosure
  •  Plug and play, and easy to install

Model

WI-POE56-60W-O

Product

PoE Injector

Interface

Data input port：

1 x 1000Mbps Ethernet port

Power input port:

1 x 24~56V/3A Max

PoE output port:

1 x 1000Mbps PoE port with 802.3bt 60W

Pin

PoE in: 1/2/4/5(+), 3/6/7/8(-)
PoE output: 1/2(+)3/6(-) or 4//5(+) 7/ 8(-)

Transmission Method

Store-And-Forward

Advanced Functions

Priority Function Mac Address Auto-Learning And Auto-Aging Store
and forward IEEE 802.3x flow control for Full-duplex Mode
Backpressure for Half-duplex Mode

Waterproof

IP68

LED Indicator

Power/PoE

Certification

CE, FCC, RoHS

Dimensions ( W x D x H )

150*73*44mm

Package Contents

1 x PoE Extender

1 x Waterproof Kit
1 x Installation Guide

Environment

Operating Temperature: -40°C~80°C
