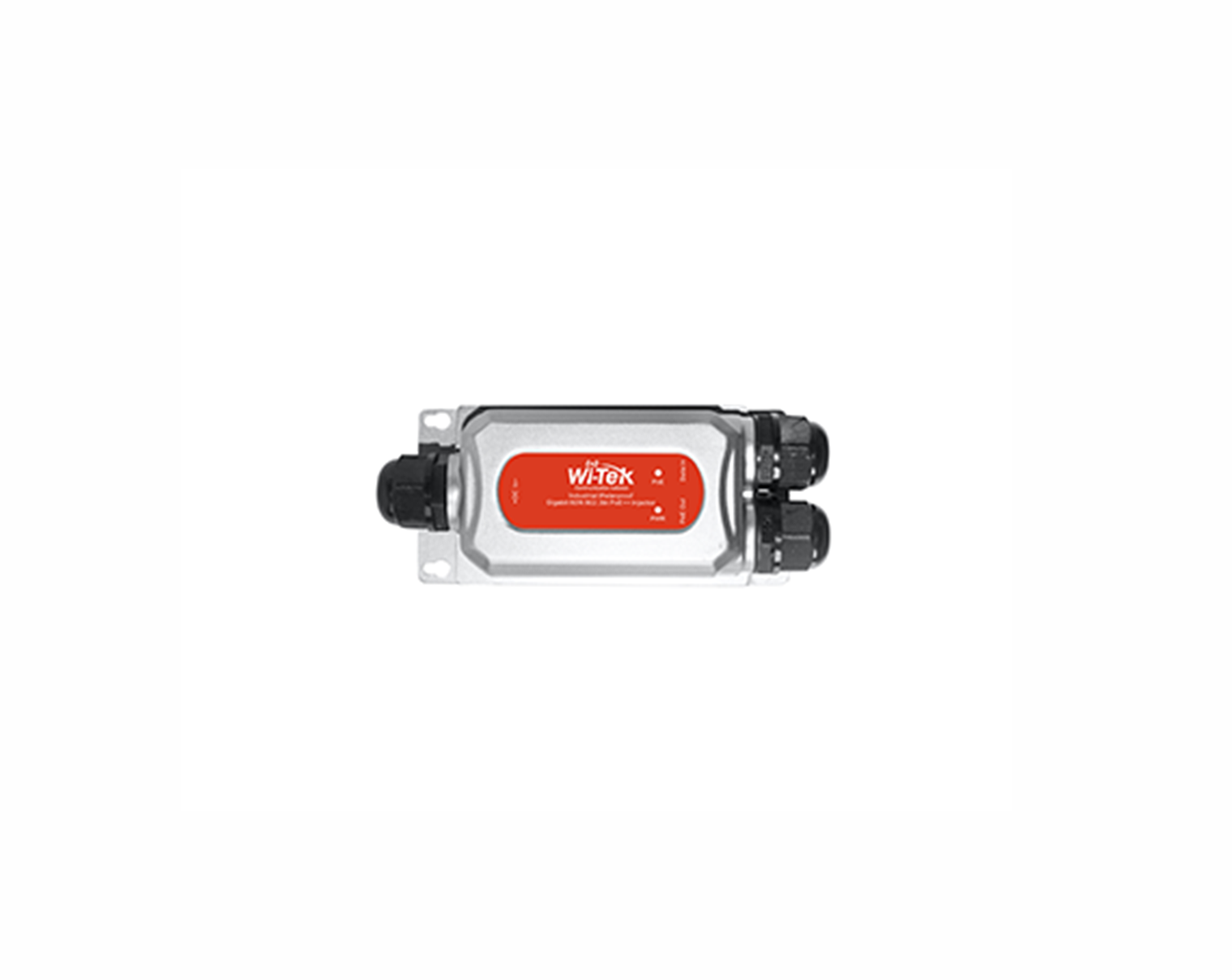

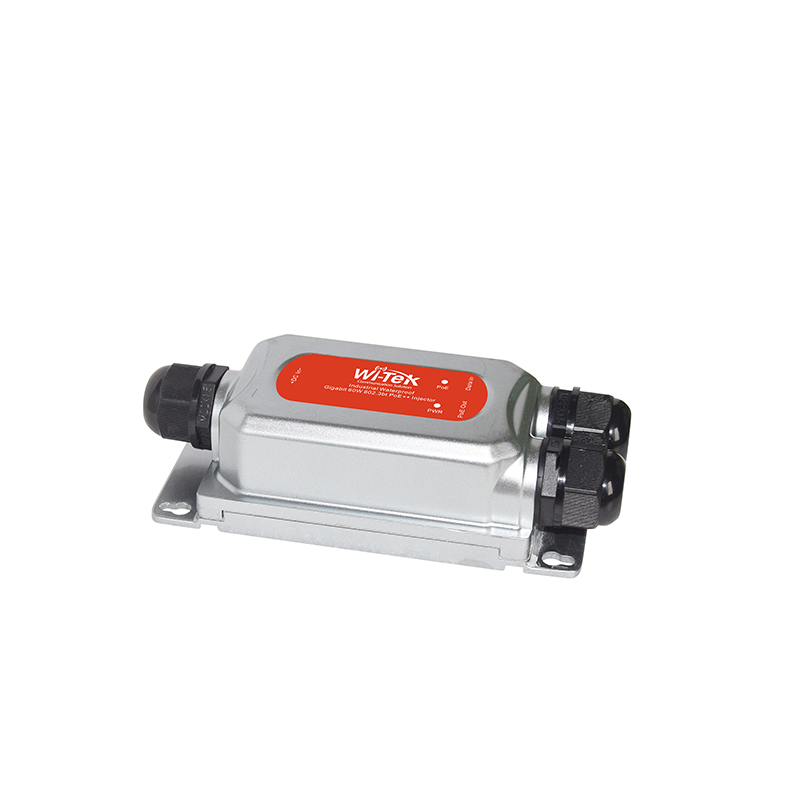

Wi-Tek - WI-POE56S-BT-I-O - Gigabit PoE Splitter with 1*RJ45 Port (Ready at July ending)
Part number:
WI-POE56S-BT-I-O
Price:
Wi-Tek industrial accessories including PoE Extender, PoE Injector, and PoE Splitter, provide a simple solution for adding PoE ports without running more cabling and achieving more flexible network applications without requiring an external power adapter. All the them comes with IP68 Waterproof make it can work in harsh outdoor environment.
Features:
- Gigabit PoE Splitter with 1*RJ45 Port
- DC output 12V 5A
- PoE IN Comply to IEEE802.3af/at/bt 90W
- Support camera, wireless AP, and IP phone etc.
- Outdoor IP68 Waterproof design
- Industrial Level 4 protection(ESD,RS,EFT,CS); -40℃～80℃ working temperature;
- Plug and play, self-adaption.
| HARDWARE FEATURES | WI-POE55S-BT-I-DC |
| Interface | 1 10/1000Mbps PoE RJ45 Port |
| 1 10/1000Mbps Ethernet Port | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) |
| EIA/TIA-568 100Ω STP (Max 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (Max 100m) | |
| EIA/TIA-568 100Ω STP (Max 100m) | |
| Power Supply | 48-55V PoE IN |
| Data In/Out | 1 x 100/1000Mbps Data Out |
| Power In/Out Port | 12V/16V/24V/48V DC Out |
| PoE PIN | 1/2(-) 3/6(+)；4/5(+) 7/8(-) |
| PoE Consumption | 52V 90W |
| LED Indicator | Power/Link |
| DIP Switch | 12V/16V/24V/48V |
| Fan Quantity | Fanless |
| Background Bandwidth | 2Gbps |
| Transmission Method | Store-And-Forward |
| Protection Level | 6kV Lightning protection |
| 6kV ESD Contact discharge | |
| Advanced Functions | Mac Address Auto-Learning And Auto-Aging |
| Store and forward | |
| IEEE 802.3x flow control for | |
| Full-duplex Mode | |
| Backpressure for Half-duplex Mode | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Dimension | 205×134×47mm |
| DeviceDimension | 186×93×41mm |
| Gross Weight | 0.46kg |
| Net Weight | 0.35kg |
| Package Contents | 1 x PoE Splitter |
| 1 x Screw Driver | |
| 1 x Quick Installation Guide | |
| Operating Temperature | -40°C~80°C |
